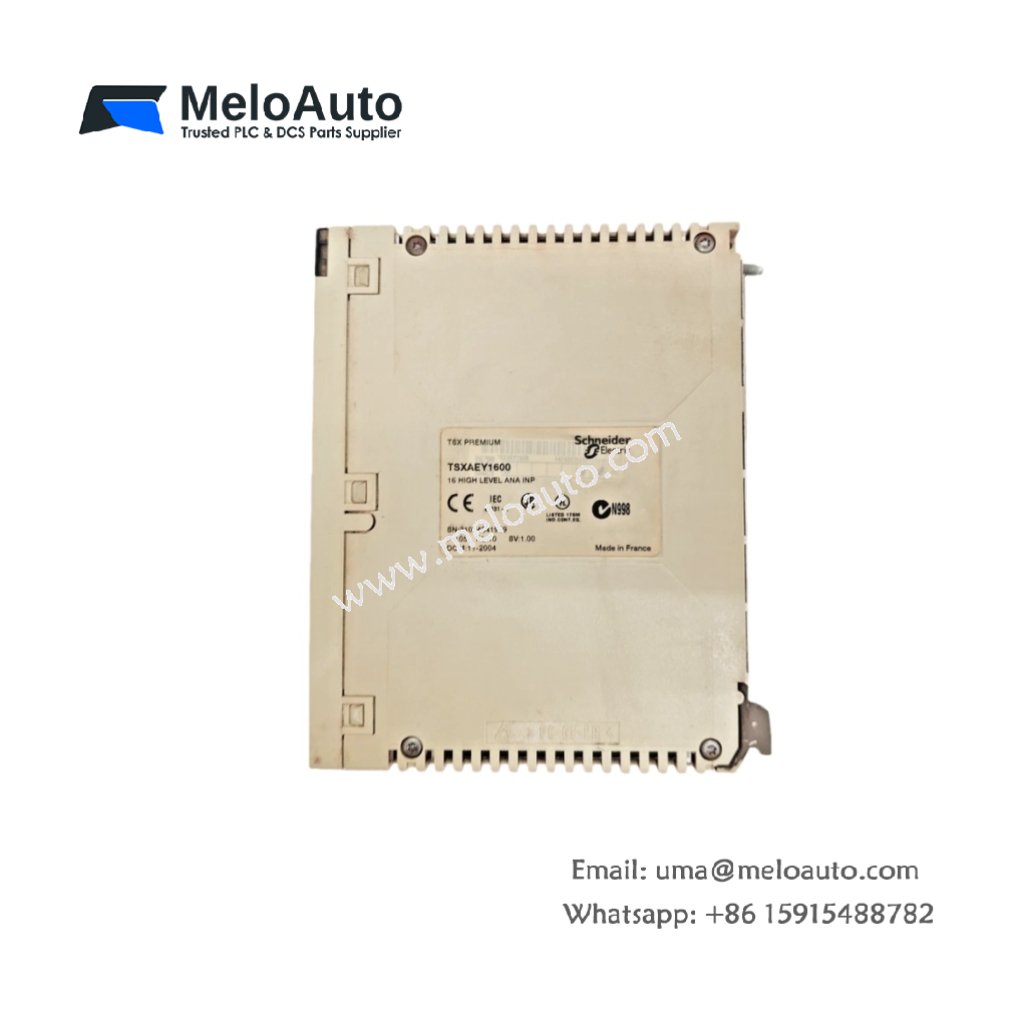

Schneider TSXAEY1600 Analog Input Module

The Schneider TSXAEY1600 is an advanced analog input module designed for use with the Modicon Premium automation platform. It provides efficient and precise analog input functionality with a wide range of features and options for industrial applications.

Key Features of the Schneider TSXAEY1600

16 Analog Input Channels: The TSXAEY1600 supports 16 single-ended analog inputs, making it suitable for various industrial measurement needs.
Wide Input Range: It offers multiple input ranges for both current and voltage signals:
- Current: 0-20 mA, 4-20 mA
- Voltage: +10V, 0-10V, 0-5V, 1-5V
12-bit Analog/Digital Conversion: The module ensures precise data conversion with a 12-bit resolution, offering high accuracy for your system’s measurements.
Fast Read Cycle Time: It supports:
- Nominal: 51 ms
- Fast Mode: 3 ms + (3 ms x number of channels used), enabling high-speed data collection.
High Measurement Accuracy:
- Voltage inputs: ±0.1% full scale at 25°C
- Current inputs: ±0.16% full scale at 25°C, ±0.32% full scale at 0-60°C
Overvoltage Protection: The TSXAEY1600 protects inputs with overvoltage safeguards:
- State 0: -15V to +15V
- State 1: -30V to +30V
Channel Isolation: The module provides excellent isolation with:
- Channels to bus: 1000 Vrms
- Channels to ground: 1000 Vrms
Dual Electrical Connection: The module uses 2 x SUB-D 25 connectors for reliable electrical connections.

Technical Specifications

Parameter	Specification
Analog Input Channels	16 single-ended inputs
Input Range	Current: 0-20 mA, 4-20 mA
	Voltage: +10V, 0-10V, 0-5V, 1-5V
Analog/Digital Conversion	12-bit resolution
Read Cycle Time	Nominal: 51 ms
	Fast Mode: 3 ms + (3 ms x number of channels used)
Measurement Accuracy	Voltage inputs: ±0.1% at 25°C
	Current inputs: ±0.16% at 25°C, ±0.32% at 0-60°C
Overvoltage Protection	State 0: -15V to +15V
	State 1: -30V to +30V
Electrical Connection	2 x SUB-D 25 connectors
Current Consumption	270 mA at 5V DC
Module Format	Standard
Operating Temperature	0°C to +60°C
Storage Temperature	-25°C to +70°C
Humidity	10-95% (operation), 5-95% (storage)

Why Choose the Schneider TSXAEY1600?

Flexible Input Range: The Schneider TSXAEY1600 handles a wide range of voltage and current inputs, making it ideal for a variety of industrial applications.
High Accuracy and Fast Processing: With 12-bit resolution and a fast read cycle time, it ensures precise and responsive data collection.
Enhanced Protection: The overvoltage protection and isolation features ensure the reliability and safety of your system, even in harsh environments.
