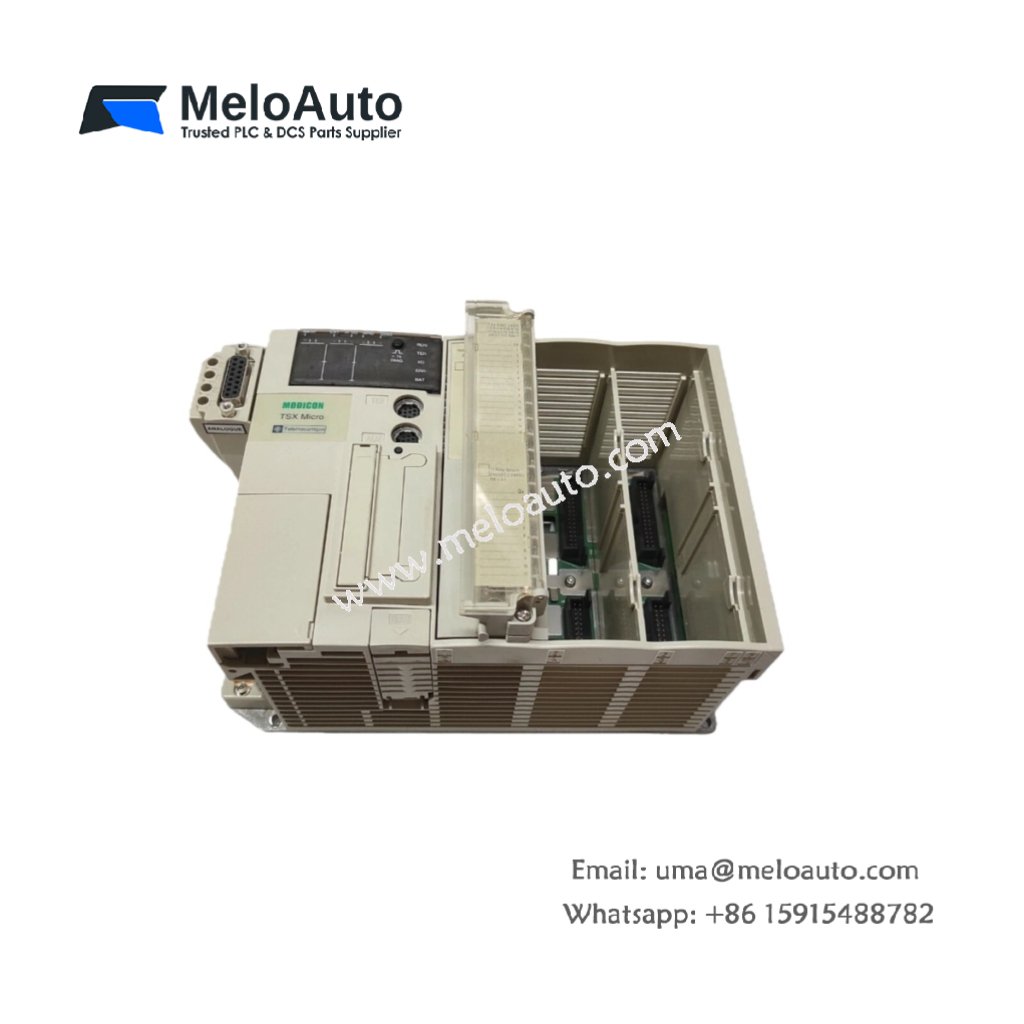

Schneider TSX3722DC Modular Base Controller

Product Overview

The Schneider Electric TSX3722DC is a high-performance modular base controller from the Modicon TSX Micro series. This controller is designed for UNI-TELWAY communication and operates at a frequency of 10Hz with a current consumption of 0.5A. With a data transmission rate of 19.2 kbit/s, the TSX3722DC ensures reliable communication for industrial automation applications.

Key Features and Specifications

• Manufacturer: Schneider Electric
• Product Line: Modicon TSX Micro
• Part Number: TSX3722DC
• Product Type: Modular Base Controller
• Weight: 0.32 kg (0.71 lbs)
• Input Voltage: 24V DC
• Current Consumption: 0.5A
• Frequency: 10Hz
• Data Transmission Rate: 19.2 kbit/s
• Communication Protocol: UNI-TELWAY
• Mounting: Modular base
• Operating Temperature Range: 0°C to 55°C
• Storage Temperature Range: -25°C to 70°C
• Humidity Range: 10% to 95% non-condensing
• Dimensions: 90mm (W) x 120mm (H) x 45mm (D)
• Certification: CE, UL

Detailed Description

The Schneider Electric TSX3722DC modular base controller is built for seamless integration within the Modicon TSX Micro system. It features UNI-TELWAY communication at a data rate of 19.2 kbit/s, making it ideal for applications requiring stable data exchange. The controller’s operating frequency is 10Hz, providing precise control and monitoring for industrial systems.

With a current consumption of 0.5A, this module is energy-efficient, optimizing performance while keeping energy demands low. The TSX3722DC offers a wide operating temperature range from 0°C to 55°C, making it suitable for various industrial environments. It can be mounted onto a modular base for easy integration into existing setups.

This controller is highly versatile, supporting a humidity tolerance of 10% to 95% non-condensing, ensuring reliable operation even in humid conditions. Certified with CE and UL, it complies with international safety standards for industrial automation systems.

Applications

The TSX3722DC is suitable for:

• Industrial automation systems requiring modular base control
• UNI-TELWAY communication in connected devices and systems
• Applications needing reliable data transmission and energy-efficient performance
