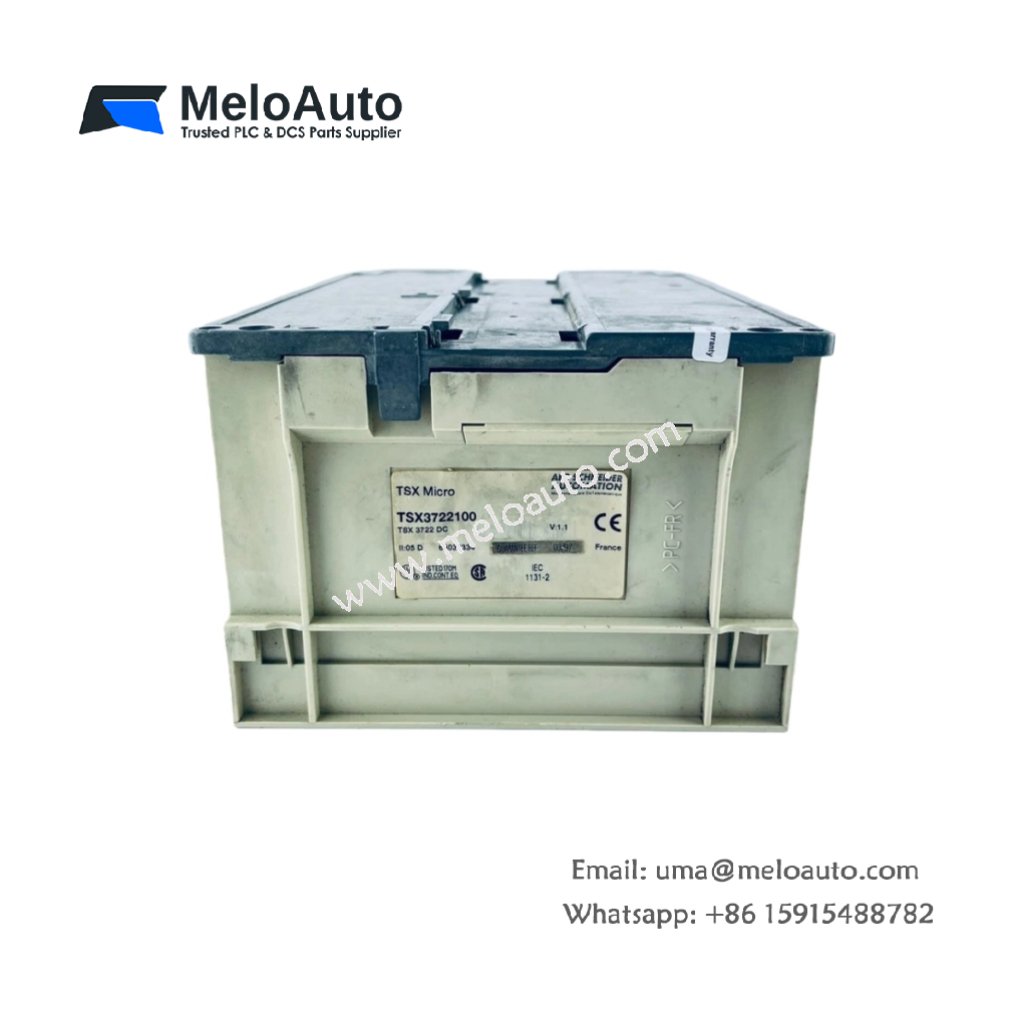

Schneider TSX3722100 Modular Base Controller

The Schneider TSX3722100 is a versatile modular base controller within the Modicon TSX Micro automation platform. It is designed for reliable performance in various industrial control applications. The controller supports configurations for TSX Micro 37 21/22 PLC, offering flexibility and scalability for different automation needs.

Key Features of Schneider TSX3722100

Wide Voltage Range: Supports 100–240V and 90–264V AC, making it adaptable to different power environments.
Efficient Power Consumption: With an input current of only 2 mA, it ensures energy efficiency in industrial setups.
Microbreak Immunity: Offers strong immunity to microbreaks, ensuring consistent and reliable operation even under unstable power conditions.
Output Current: The module can handle up to 0.5A, providing enough power for various I/O devices.
Modular Design: Features 3 slots, allowing for flexible expansion with different modules.

Technical Specifications for Schneider TSX3722100

Parameter	Details
Manufacturer	Schneider Electric
Product Type	Modular Base Controller
Product Line	Modicon TSX Micro
Part Number	TSX3722100
Primary Voltage	100–240V AC (90–264V AC)
Input Current	2 mA
Output Current	0.5A
Immunity to Microbreaks	20 ms
Number of Slots	3
Analogue Input Type	0–10V
Analogue Output Type	0–10V
Counting Input Type	Discrete incremental counter (1–10 Hz)
Integrated Connection Type	Serial link (TER/AUX), Uni-Telway, Modbus RTU
Realtime Clock	Yes
Memory	Flash: 15 Kwords; Internal RAM: 20 Kwords
Extended RAM (with PCMCIA)	128 Kwords (program and data)
Object Area Size	128% KW (constant words), 256% MW (internal words)

Description

The Schneider TSX3722100 is the heart of the Modicon TSX Micro automation platform, providing essential modular control for various industrial applications. It features a robust design, capable of handling diverse input and output requirements. The module operates on a wide voltage range (100–240V AC or 90–264V AC), ensuring compatibility with different industrial power setups.

Equipped with 3 slots, the TSX3722100 allows for flexible configuration with compatible modules. The input current of only 2 mA ensures low energy consumption, while its immunity to microbreaks (20 ms) guarantees stable performance even during power fluctuations.

This modular base controller supports analog inputs and outputs, both within the 0–10V range. It is also equipped with discrete incremental counters for precise control of system processes. Its Uni-Telway and Modbus RTU protocols enable easy integration into existing systems, ensuring effective communication between the TSX Micro and other industrial devices.

The module features substantial memory, with 15 Kwords of Flash memory for storing data, and 20 Kwords of internal RAM for fast access to program data. Users can expand memory through a PCMCIA card, adding up to 128 Kwords of storage for program and data. The real-time clock further enhances system reliability, providing time-stamped data collection and process control.
