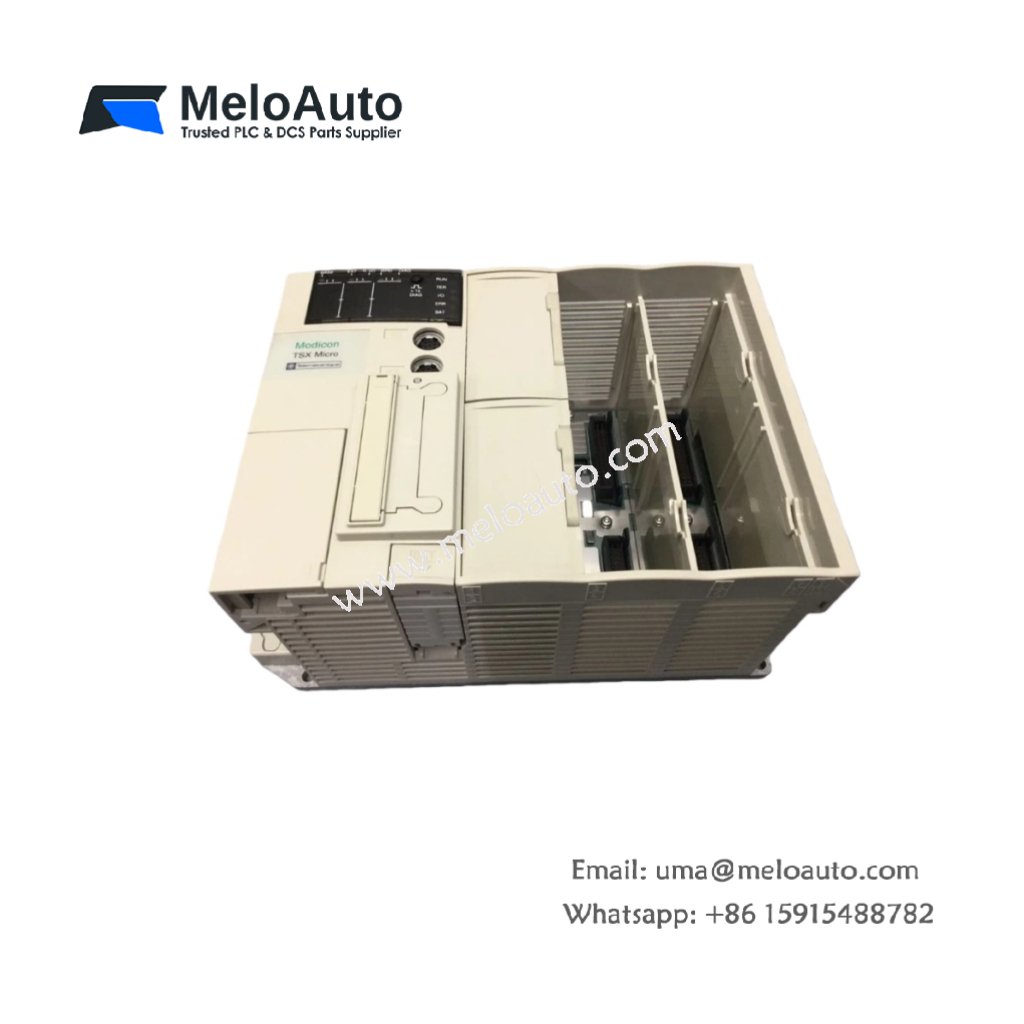

Schneider TSX3721100 Modular Base Controller

Overview

The Schneider TSX3721100 is a versatile Modular Base Controller from the TSX series, designed to meet the needs of modern automation systems. It provides a flexible solution, supporting up to three slots for easy expansion. With a voltage range of 24 V to 30 V DC, the controller works well in various industrial settings, ensuring reliable performance.

Key Features

Modular Design: The TSX3721100 offers a flexible configuration with 3 available slots for easy expansion.
Wide Input Voltage Range: It operates within a voltage range of 19.2 to 30 VDC, allowing compatibility with various power systems.
Compact and Durable: This controller is compact but durable, designed to withstand demanding industrial environments.
Efficient Power Consumption: The controller requires minimal current, using just 60A input, which helps to save energy and reduce operational costs.
Proven Reliability: With a track record of high reliability, the TSX3721100 handles complex automation tasks with ease.

Technical Specifications

Specification	Details
Manufacturer	Schneider Electric
Model	TSX3721100
Product Type	Modular Base Controller
Series	TSX
Number of Slots	3
Primary Voltage	24 VDC (Nominal), 19.2–30 VDC (Range)
Input Current	60 A
Input Voltage	19.2–30 VDC
Current Consumption	2 mA
Power Consumption	Low consumption, energy-efficient
Mounting Type	DIN Rail
Operating Temperature	0°C to 55°C
Storage Temperature	-20°C to 70°C
Dimensions	100 x 100 x 70 mm
Weight	0.5 kg
Protection Class	IP20
Status Indicators	LED indicators for operational status

Applications

The Schneider TSX3721100 Modular Base Controller excels in numerous industrial automation applications, including:

Modular Control Systems: The three slots allow for easy expansion and integration with various I/O modules and communication protocols.
Process Control: This controller is well-suited for environments that demand efficiency and flexibility, such as assembly lines and manufacturing processes.
Building Automation: It fits well in systems that require power efficiency and reliability, including HVAC and lighting control systems.
