Schneider TSX3710AC PLC CPU Module

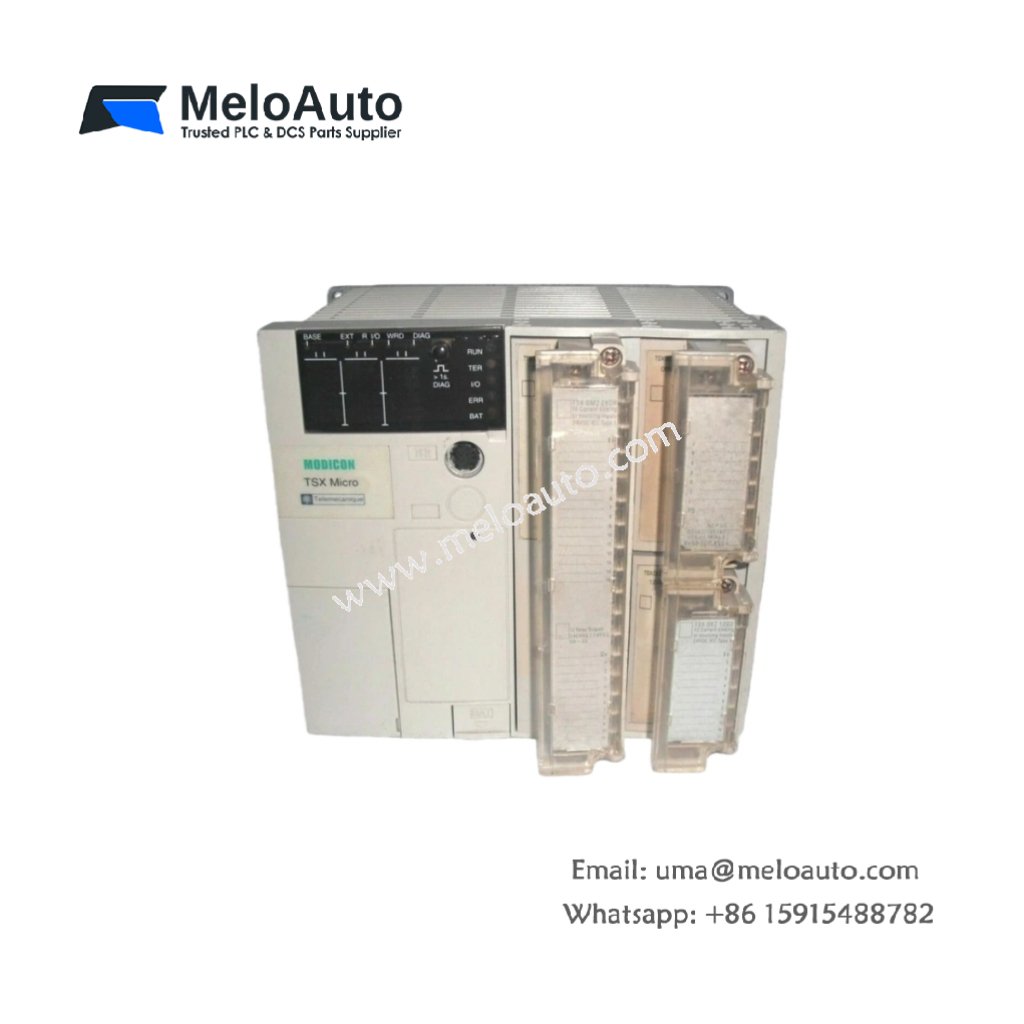

Overview of the Schneider TSX3710AC PLC CPU Module

The Schneider TSX3710AC is a high-performance PLC CPU module from the Modicon series, designed for complex control tasks in industrial automation systems. This module offers robust processing power, efficient memory management, and flexible communication options, making it ideal for applications requiring precise control and real-time data processing.

Key Features of the Schneider TSX3710AC PLC CPU Module

High Processing Speed: The TSX3710AC offers fast execution times, processing 1 instruction in just 3.03 µs. It is optimized for high-speed control and decision-making processes in automated systems.
Versatile Communication Options: This module integrates 1 serial link (Uni-Telway) and 1 Modbus (Modbus RTU) connection at 19.2 kbit/s, enabling seamless communication with other devices and controllers.
Large Memory Capacity: The TSX3710AC comes equipped with 14 Kwords of RAM and 15 Kwords of Flash memory, providing ample space for storing data and executing complex control operations.
Flexible Input and Output Options: The module supports 12 relay outputs and 16 discrete inputs at 24 V for AC, allowing for versatile control of various automation devices.
Compact Design: With 2 available slots, the module is space-efficient and easy to integrate into existing systems, making it ideal for both new and retrofit projects.

Technical Specifications

Feature	Specification
Model	Schneider TSX3710AC
Product Type	PLC CPU Module
Product Line	Modicon Series
Part Number	TSX3710AC
Primary Voltage	100-240 V AC
Integrated Connections	1 serial link (Uni-Telway) at 19.2 kbit/s
	1 Modbus RTU at 19.2 kbit/s
Number of Discrete Outputs	12 relay outputs
Number of Discrete Inputs	16 discrete inputs (24 V for AC)
Number of Slots	2 slots
Input Current	2 mA < 60 A
Internal Memory	14 Kwords RAM, 15 Kwords Flash data
Real-Time Clock	Yes
Execution Time (1 Kinstruction)	3.03 µs (100% Boolean without PCMCIA card)

Application and Compatibility

The Schneider TSX3710AC PLC CPU module is perfect for industrial applications requiring fast, reliable control and communication. It is widely used in machine control, process automation, and motion control systems. The integration of Modbus RTU and Uni-Telway communication protocols ensures compatibility with a wide range of Schneider Electric systems and third-party devices.

Why Choose the Schneider TSX3710AC PLC CPU Module?

The Schneider TSX3710AC stands out with its high-speed processing, large memory capacity, and versatile communication options. Its 2-slot design allows easy integration into Modicon control systems, while its real-time clock and fast execution times make it an excellent choice for time-sensitive applications. Furthermore, the module’s discrete I/O configuration provides flexibility for controlling various automation components. Choose the TSX3710AC for advanced performance and seamless operation in demanding industrial environments.
