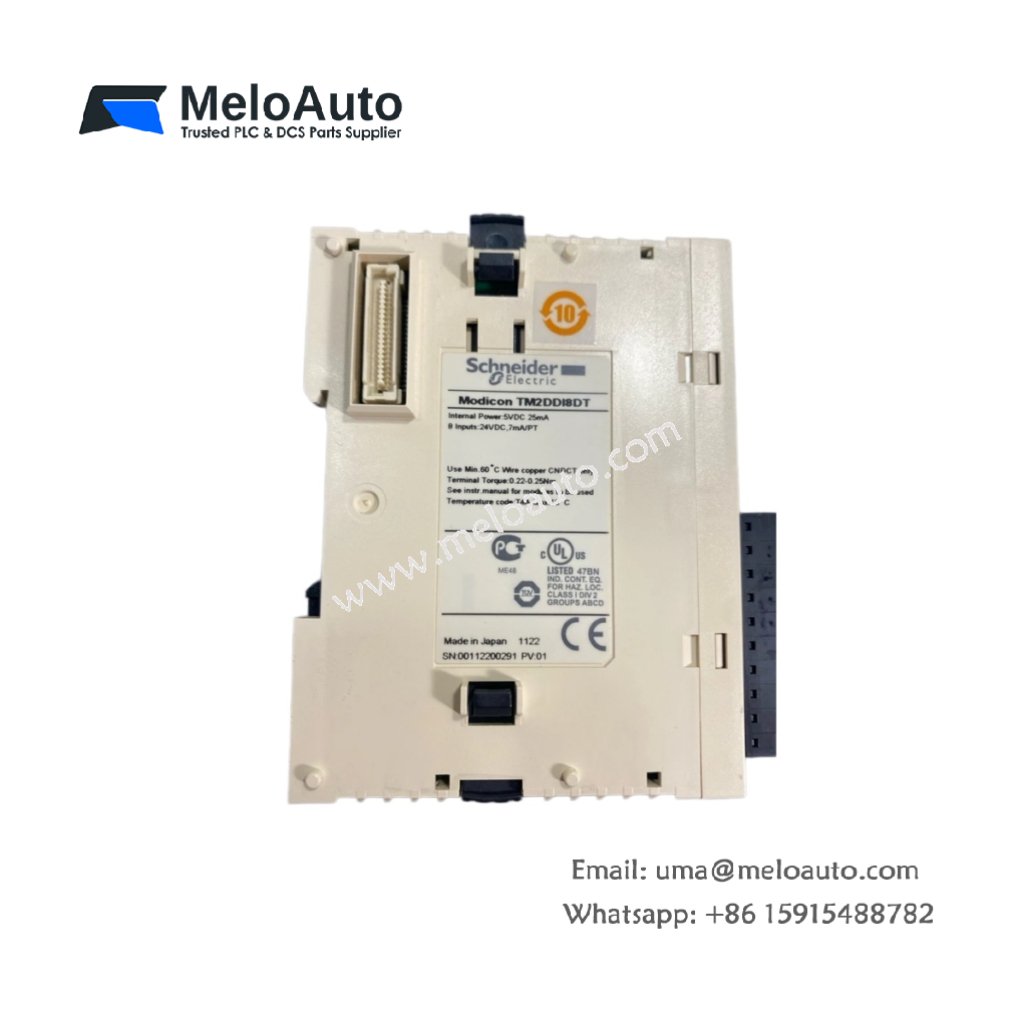

Schneider TM2DDI8DT I/O Expansion Module – 8 Digital Inputs

The Schneider TM2DDI8DT adds eight digital input channels to Modicon M221 or M241 PLCs. This I/O expansion module connects via the TM2 bus for easy system growth. You can mount it next to the main controller or in distributed locations. The unit accepts 24 VDC signals from standard industrial sensors.

Input Specifications and Electrical Ratings

The Schneider TM2DDI8DT accepts both sinking and sourcing field devices. This I/O expansion module draws only 7 mA per active channel. You can monitor up to eight additional field devices per module. The unit ignores voltage below 5 VDC as a valid off signal.

Physical Dimensions and Weight

This I/O expansion module weighs only 0.10 kg for compact panel design. The unit measures 90 mm tall by 23.6 mm wide. Its depth reaches 70 mm including the terminal block. You can mount the Schneider TM2DDI8DT on any standard 35 mm DIN rail.

Interface and Wiring Connections

A 10-position removable screw terminal block handles all field wiring. This terminal block accepts wire sizes from 0.2 to 1.5 mm². You will find eight dedicated input terminals plus common and power terminals. Each channel features a green LED indicator for visual status confirmation. A 6-pin expansion bus connector links the module to the main controller.

Energy Storage and Internal Circuitry

The Schneider TM2DDI8DT stores minimal energy for input filtering. Each channel includes a 4.7 µF capacitor for contact debouncing. These eight capacitors provide a total storage of 37.6 µF at 24 VDC. The module does not contain any battery or non-volatile memory. Eight optocouplers provide complete isolation between field and internal logic.

Component Layout and Construction

Sixteen resistors set the correct current for each input channel. Eight zener diodes protect against overvoltage events up to 35 VDC. The circuit board uses a two-layer FR4 substrate for reliable performance. You will find 58 individual components soldered on both sides. The Schneider TM2DDI8DT includes no user-serviceable fuses or relays. A built-in status LED on the front panel reports module health.

Operational Use and System Integration

Transitioning to this module expands your M221 or M241 digital input capacity. You can stack up to seven expansion modules on a single controller. The module works with 2-wire or 3-wire DC sensors without external power. Use the Schneider TM2DDI8DT for emergency stops, guard monitoring, or part detection. For best results, avoid routing input wires alongside high-power AC cables. This module supports plug-and-play auto-configuration with EcoStruxure Machine Expert software.
