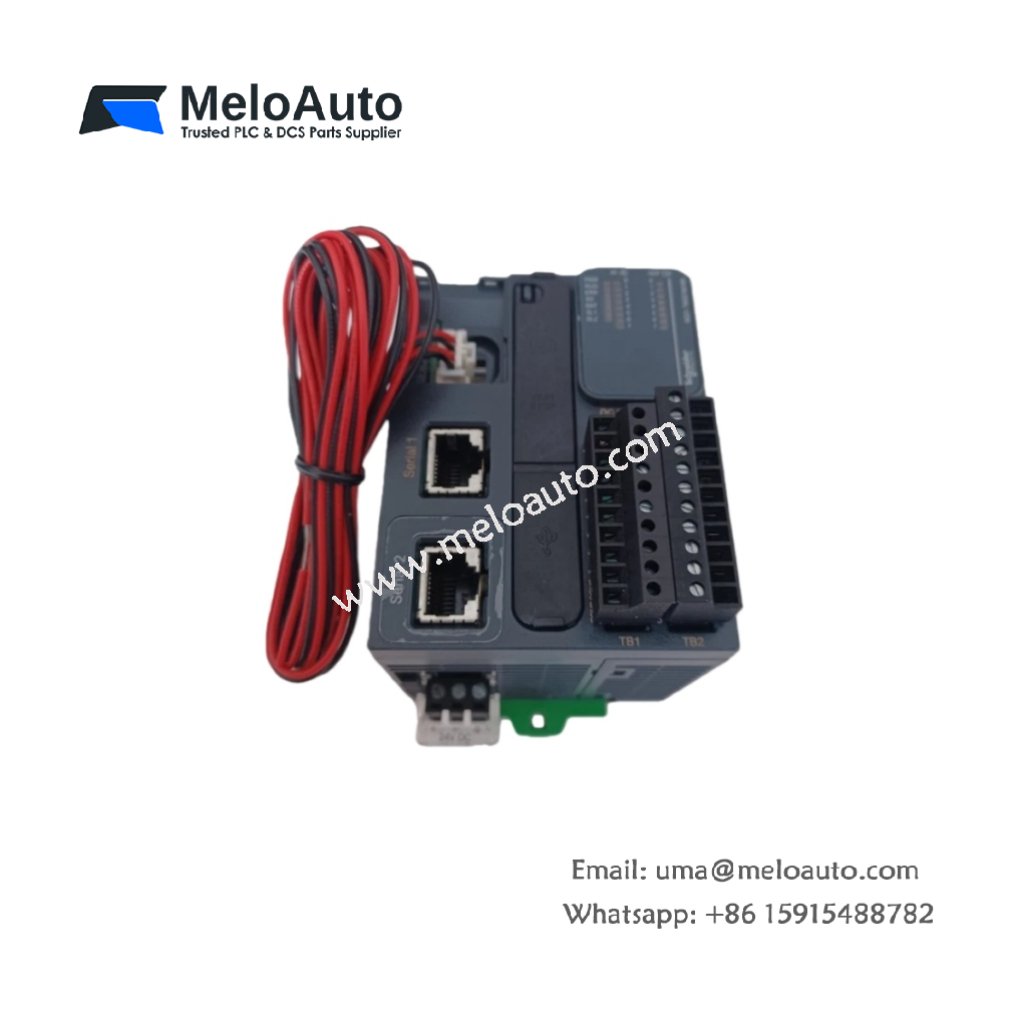

Schneider TM221M16R Logic Controller

Overview of the Schneider TM221M16R Logic Controller

The Schneider TM221M16R is a powerful and versatile logic controller designed to optimize control operations across a wide range of industrial applications. Part of the Modicon M221 series, this compact yet highly capable controller is ideal for small to medium-sized automation projects. It offers exceptional reliability, flexible integration, and precise control, making it a key component in the Schneider Electric automation ecosystem.

With 16 discrete I/O points, this controller offers ample flexibility for various input and output configurations. Whether used for local or remote I/O architectures, the TM221M16R ensures smooth communication between modules, enhancing system efficiency and minimizing downtime.

Key Features of the Schneider TM221M16R Logic Controller

Versatile I/O Configuration: The TM221M16R includes 8 discrete inputs and 8 relay outputs, offering ample flexibility for diverse applications.
Wide Voltage Compatibility: The controller supports a broad input voltage range, enhancing its adaptability to various industrial systems.
High-Performance Outputs: The relay outputs handle both DC and AC voltage, supporting diverse control requirements.
Energy Efficient: With a low maximum power consumption, this controller ensures minimal energy loss, making it an environmentally friendly choice.
Robust Communication: The TM221M16R provides reliable communication for seamless integration with other modules, maximizing system performance.
Compact Design: Its compact form factor saves valuable panel space, making it ideal for installations with limited space.

Technical Specifications of the Schneider TM221M16R Logic Controller

Parameter	Specification
Model Number	TM221M16R
Product Type	Logic Controller
Rated Supply Voltage	24V DC
Discrete Inputs	8 inputs (IEC 61131-2 Type 1)
Analogue Inputs	0
Discrete Outputs	8 relay outputs (normally open)
Discrete Output Voltage	5…125V DC, 5…250V AC
Discrete Output Current	2A per relay output
Maximum I/O Expansion Modules	7 (local I/O architecture), 14 (remote I/O architecture)
Supply Voltage Limits	20.4V to 28.8V
Inrush Current	35A
Maximum Power Consumption	22.5W (with max I/O expansion), 3.6W (without expansion)
Weight	0.55 kg
Mounting Type	DIN Rail Mountable
Operating Temperature Range	-20°C to 60°C
Humidity	5% to 95% (non-condensing)
Compliance	CE, RoHS, REACH

Applications of the Schneider TM221M16R Logic Controller

The Schneider TM221M16R Logic Controller is ideal for a variety of industrial automation applications, including:

Small to Medium-Sized Automation Projects: Ideal for controlling machines, processes, and production lines with moderate complexity.
Building Management Systems: Useful for integrating and controlling systems such as HVAC, lighting, and security.
Industrial Equipment Control: Perfect for managing inputs and outputs in machinery and industrial equipment.
Energy Management: Efficiently handles energy consumption data, helping to optimize energy usage in industrial operations.
Remote Monitoring Systems: Enables remote control and monitoring through its remote I/O capability, ideal for wide-area systems.
