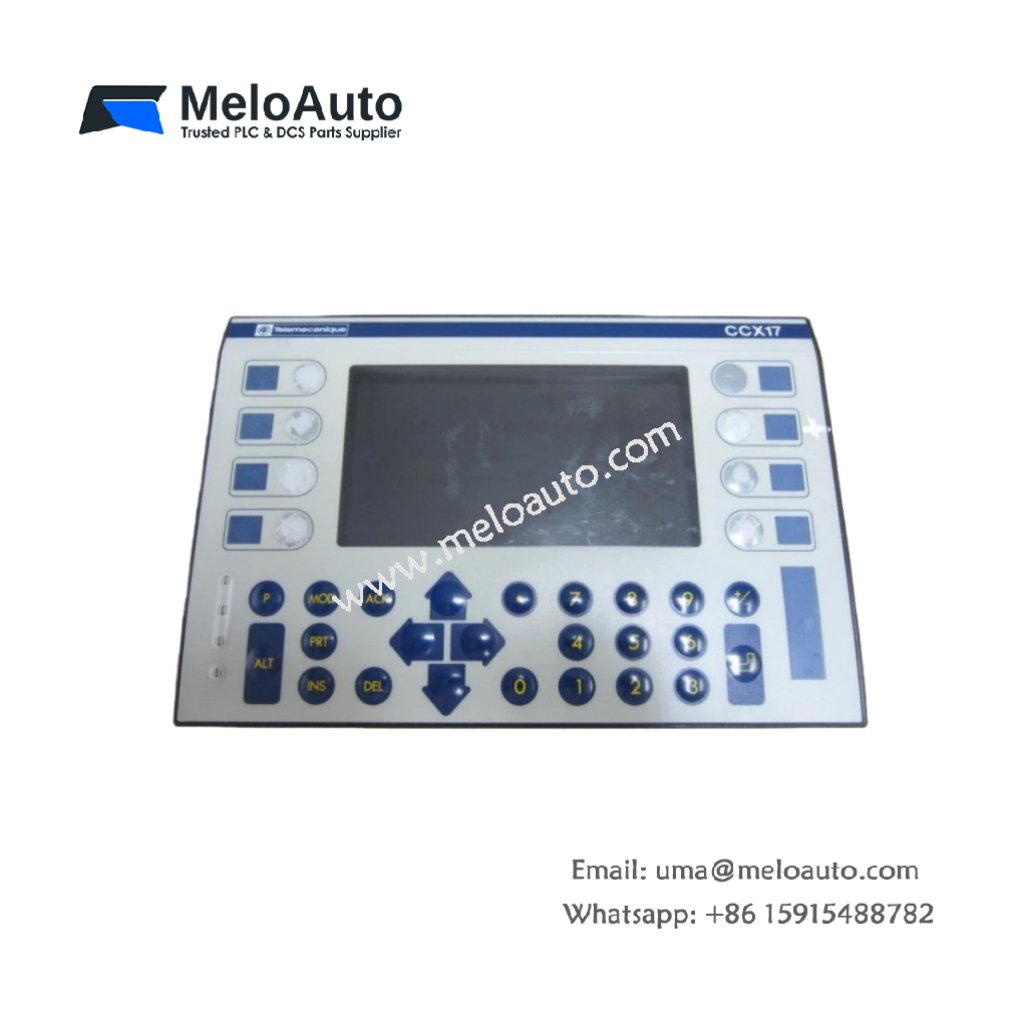

Schneider TCCX1720L 4-Line LCD Operator Panel

Overview

The Schneider TCCX1720L is an advanced 4-line LCD operator panel that improves user interaction with industrial systems. With its clear display and compact design, it simplifies monitoring and system management. Furthermore, it features an intuitive interface, allowing operators to control and adjust system parameters with ease.

Key Features

Clear Display: The TCCX1720L utilizes a 4-line LCD display, which ensures excellent readability even in challenging environments.
User-Friendly Interface: This model features both touch-screen controls and tactile buttons, offering flexibility for various operator preferences.
Compact Design: Its small footprint makes it ideal for spaces where real estate is limited, yet it maintains a large, clear display.
Versatile Connectivity: The panel supports multiple communication protocols, enabling smooth integration with various control systems.
Durability: The TCCX1720L excels in harsh industrial settings, thanks to its rugged construction and reliable performance.

Technical Specifications of the Schneider TCCX1720L

Feature	Specification
Model	Schneider TCCX1720L
Product Type	4-Line LCD Operator Panel
Display	4-Line LCD
Display Resolution	240 x 64 pixels
Interface	Touch Screen, Buttons
Communication Protocols	Modbus, Profibus, Ethernet/IP, CANopen
Input Voltage	24 V DC
Operating Temperature Range	0 to 50°C
Storage Temperature Range	-20 to 70°C
Humidity Range	10-90%, Non-condensing
Weight	1.5 kg (3.3 lbs)
Dimensions (H x W x D)	160 mm x 240 mm x 55 mm
Protection Class	IP65 (Front)
Enclosure Material	ABS Plastic

Applications of the Schneider TCCX1720L Operator Panel

You will find the Schneider TCCX1720L in a variety of industrial automation applications. This panel is especially useful for machine control, manufacturing, and energy management systems. Notably, its ability to integrate seamlessly with PLCs and SCADA systems makes it a versatile tool for real-time system monitoring and control.

Why Choose the Schneider TCCX1720L Operator Panel?

The Schneider TCCX1720L provides an intuitive, clear, and reliable solution for industrial automation. Its compact design, combined with the powerful features of touch control and versatile communication protocols, ensures a user-friendly experience. Whether you’re managing a small or large-scale operation, this panel helps optimize efficiency and streamline processes.
