Schneider STBACO8220K Analog Output HART Kit

Overview of the Schneider STBACO8220K Analog Output HART Kit

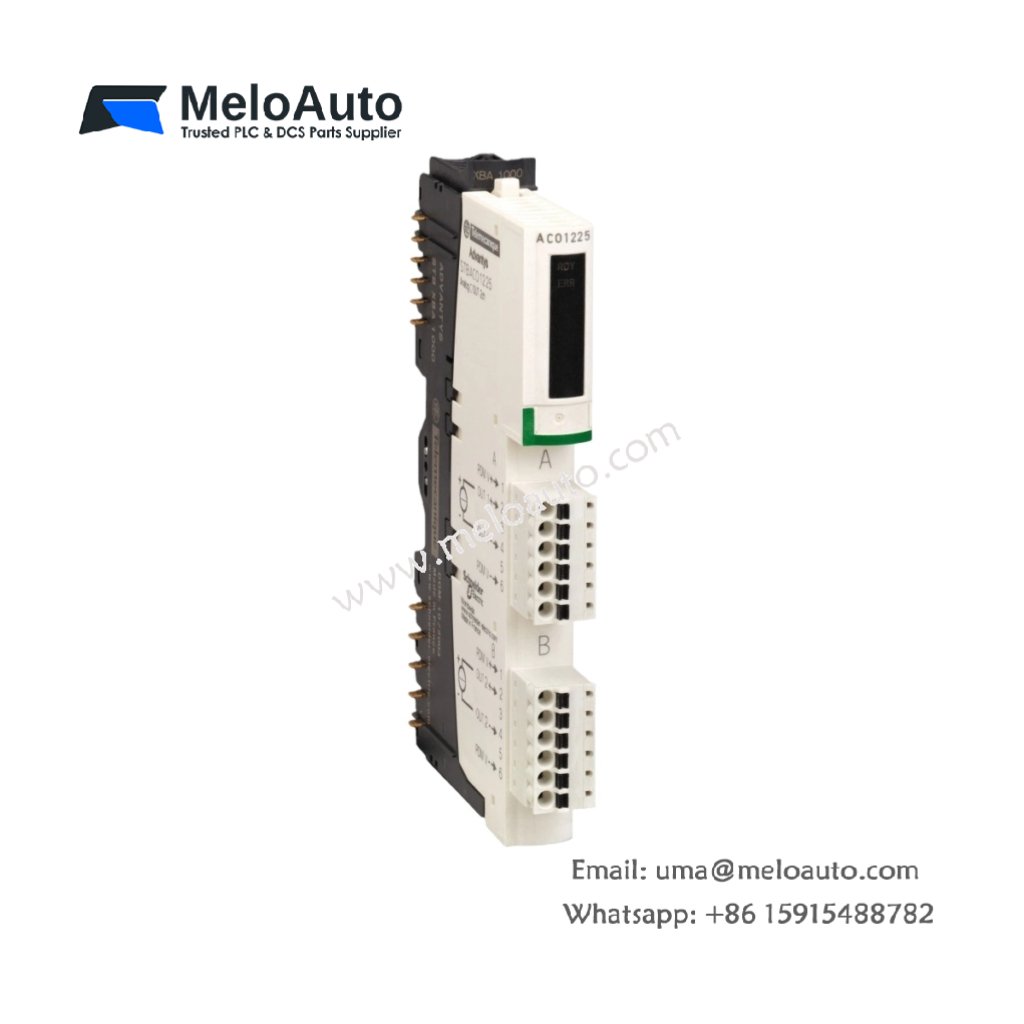

The Schneider STBACO8220K is a high-precision standard analog output HART kit designed for industrial applications. This kit supports a 4-20 mA output range and offers 15-bit resolution with a sign. It ensures smooth communication between devices using the HART protocol and is essential for reliable process control. The STBACO8220K is compatible with a wide range of systems, making it a versatile solution for automation applications.

This module offers impressive features like fast response times, hot and cold swapping, and high insulation between channels and buses. With an absolute accuracy error of +/-0.3% and excellent temperature drift performance, it guarantees precise and stable output under varying conditions. Additionally, the STBACO8220K is designed to be user-configurable, allowing for easy integration into your existing systems.

Key Features of the Schneider STBACO8220K Analog Output HART Kit

Wide Output Range: Supports 4-20 mA output for precise control.
High Resolution: Offers 15 bits + sign resolution for accurate data transmission.
Fast Response Time: Delivers a response time of 40 ms plus update time for quick signal processing.
Hot and Cold Swapping: Allows for easy swapping of modules without interrupting system operation.
Temperature Stability: Features a temperature drift of only +/-0.005%/°C for stable performance over temperature changes.
High Insulation: Ensures 1500 V insulation between channels and the logic bus, offering robust electrical protection.
Monotonic Output: Guarantees consistent output without distortion or deviation.
Compatibility: Compatible with standard NIMs and power distribution modules like STBPDT3100/3105.

Technical Specifications of the Schneider STBACO8220K Analog Output HART Kit

Parameter	Specification
Model Number	STBACO8220K
Product Type	Analog Output HART Kit
Output Current	4-20 mA
Data Format	15 bits + sign
Response Time	40 ms + update time
Cold Swapping	Yes
Hot Swapping	Yes, for standard NIMs
Fallback	State 0 basic NIMs, user-configurable NIMs
Update Time	8 ms
Integral Linearity	+/-0.05% FS
Differential Linearity	Monotonic
Absolute Accuracy Error	+/-0.3% of full scale
Temperature Drift	+/-0.005%/°C
Insulation between Channels & Logic Bus	1500 V for 1 minute
Insulation between Channels & Actuator Bus	200 V
Product Compatibility	Power distribution module STBPDT3100/3105
Supply Voltage	24 V DC
Current Consumption	210 mA 5 V DC logic bus
Mounting Base Compatibility	STBXBA1000
Certification	EN 61131-2, IEC 61131-2
Power Distribution Module	Yes
Weight	0.5 kg

Applications of the Schneider STBACO8220K Analog Output HART Kit

Industrial Process Control: Essential for controlling analog signals in various industrial automation systems.
Automation Systems: Ideal for integration with Modicon automation platforms.
Energy and Utilities: Used in power distribution and monitoring applications.
Flow and Pressure Systems: Perfect for controlling flow and pressure in process industries.
