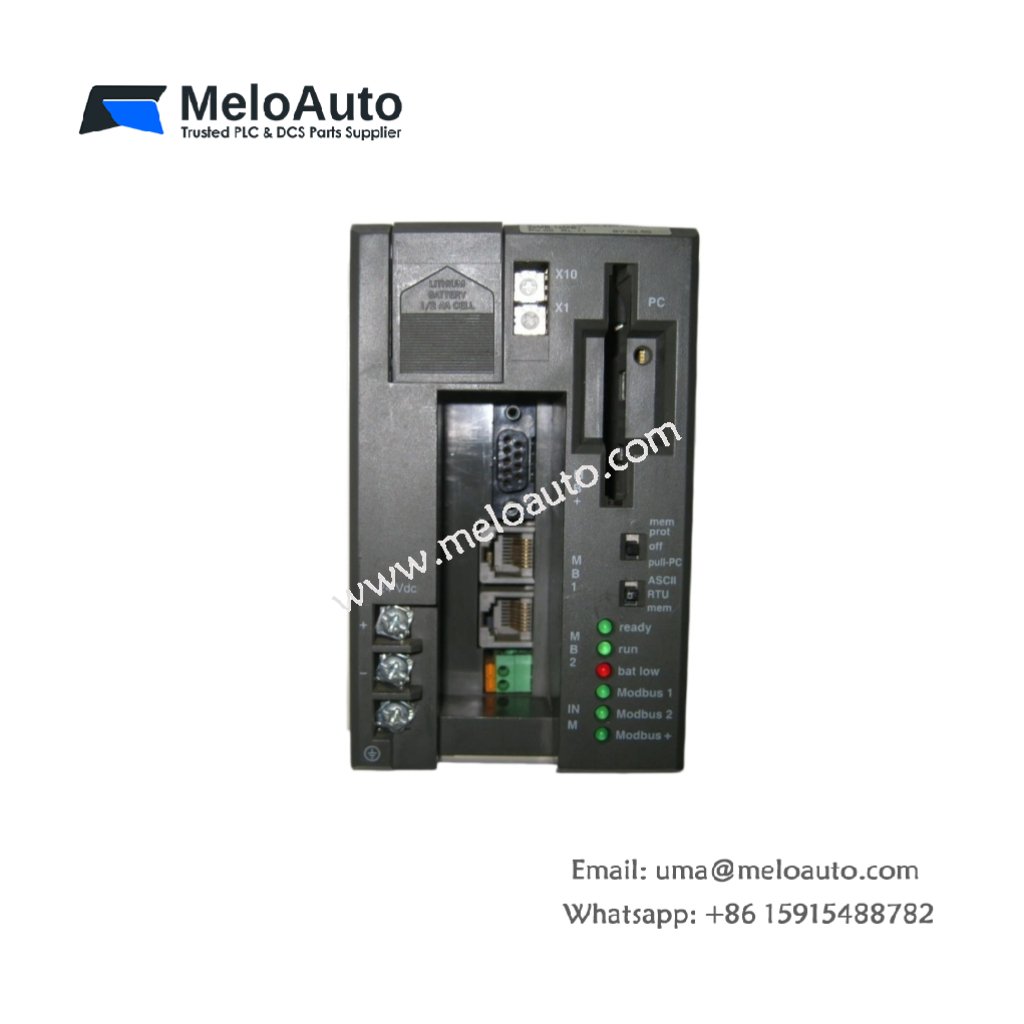

Schneider PCE984CBC Programmable Logic Controller (PLC) CPU Module – Modicon Series

The Schneider PCE984CBC is a high-performance Programmable Logic Controller (PLC) CPU module from the Modicon series. With its 16-bit processing architecture, the PCE984CBC ensures powerful control over complex industrial processes. This controller provides flexible power options, supporting both 115/230VAC and 24VDC inputs. As a result, it is ideal for a broad range of applications requiring reliable and scalable automation solutions.

Key Features and Specifications

• Model Number: Schneider PCE984CBC
• Product Type: Programmable Logic Controller (PLC) CPU Module
• Product Line: Modicon
• Part Number: PCE984CBC
• Weight: 1.81 lbs (0.82 kg)
• Processing Architecture: 16-bit CPU architecture
• User Memory Capacity: Configurable user logic memory (up to 16K)
• Data Memory Capacity: 10K dedicated data storage
• Communication Protocols: Modbus support
• Total Discrete I/O Points: 2,048 configurable discrete inputs/outputs
• Maximum System I/O Capacity: Expandable to 16,384 I/O points per system
• Operating Voltage Range: Dual voltage compatibility (115/230VAC, 50/60Hz; 24VDC)
• Operating Temperature Range: -20°C to +60°C (industrial-grade tolerance)
• Certifications: Compliant with CE and UL standards

Product Overview

The Schneider PCE984CBC is designed to meet the needs of complex industrial control systems. Equipped with a 16-bit processing architecture, this module delivers high-speed, reliable performance for various automation tasks. Additionally, the PCE984CBC offers flexibility with a user memory capacity of up to 16K for logic and 10K dedicated data storage, ensuring efficient execution of control programs.

Moreover, the controller supports 2,048 discrete I/O points, which can be expanded to up to 16,384 I/O points per system. This makes the PCE984CBC suitable for systems with significant I/O requirements. The dual voltage compatibility ensures that it can be integrated into a variety of power setups, whether it’s 115/230VAC or 24VDC.

In addition, the PCE984CBC operates within a wide temperature range of -20°C to +60°C, allowing it to function effectively in demanding industrial environments. CE and UL certifications further guarantee that it meets essential safety standards, ensuring both reliability and safety in your automation systems.

Applications

The Schneider PCE984CBC is ideal for applications requiring flexible and scalable control solutions. It can be used in manufacturing, process automation, and robotics. Additionally, the controller supports Modbus communication, which allows it to integrate seamlessly with other devices in the Modicon series and third-party automation equipment. As a result, the PCE984CBC is a critical component in various industrial systems that demand robust performance and high scalability.

Product Details

• Brand: Schneider Electric
• Model: PCE984CBC
• Category: Programmable Logic Controller (PLC) CPU Module
• Series: Modicon
