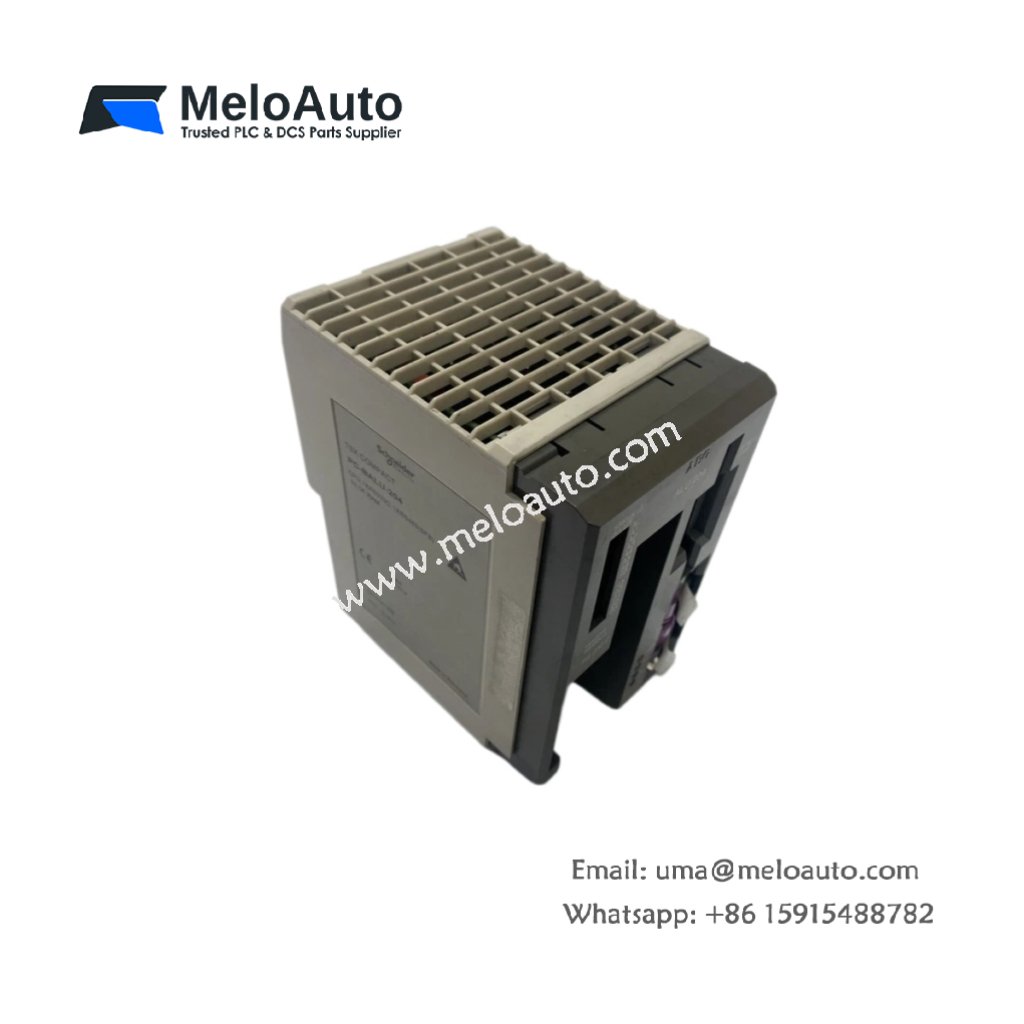

Schneider PCBALU204 Compact CPU Module

The Schneider PCBALU204 is a high-performance CPU module from the Modicon series, designed for use in industrial automation systems. This compact module boasts a high-speed core and excellent processing capabilities, providing rapid scan cycles and supporting programming with 30K instructions. The PCBALU204 ensures reliable performance, making it an ideal choice for automation tasks requiring precision and efficiency.

Key Features of the PCBALU204 CPU Module

With its versatile design and robust technical specifications, the PCBALU204 integrates seamlessly into industrial control systems. Its compact size and powerful features make it a reliable solution for various automation applications.

Module Type: Compact CPU Module
Manufacturer: Schneider Electric
Product Line: Modicon Series
Model: PCBALU204

Technical Specifications

The PCBALU204 is equipped with a range of features designed to enhance system performance and reliability. Below are the key technical specifications:

Parameter	Details
Processor Core	High-speed core
Instruction Capacity	30K instructions
RS232 Port	1 x RS232
RS485 Port	1 x RS485 (SFB)
Program Memory	Supports 30K instructions
Data Memory	Fast data storage
Scan Time	Rapid scan cycle
I/O Capacity	Multiple digital I/Os
Operating Voltage	24V DC
Mounting	DIN rail compatible
Integrated Network Protocol	MODNET 1 SFB SW communication interface

The PCBALU204 supports up to 30K instructions and includes fast data storage for high-efficiency program execution. Its rapid scan cycle optimizes the performance of complex automation systems, while the modular design ensures easy integration into existing control systems.

Connectivity and Compatibility

This CPU module features essential communication ports like 1 x RS232 and 1 x RS485 (SFB), providing seamless connectivity with a wide range of industrial devices. Its compatibility with the MODNET 1 SFB SW communication interface ensures effective data exchange in your control system.

Mounting and Installation

The PCBALU204 is designed for easy installation, being DIN rail compatible. This feature simplifies the mounting process, making the module suitable for various control panels and cabinets in industrial settings. The compact size and lightweight design (0.51 kg) ensure that it fits into even the most space-constrained environments.

Energy Efficiency

Operating at 24V DC, the PCBALU204 delivers efficient performance without excessive energy consumption. This makes it a reliable and cost-effective choice for industrial automation systems that require consistent and efficient processing power.

Applications

The PCBALU204 CPU module is perfect for a wide range of industrial automation applications, including:

Process control
Machine monitoring
Manufacturing automation
Control systems integration

It can handle multiple digital I/Os and support real-time monitoring and control, ensuring seamless integration with complex automation systems.

Conclusion

The Schneider PCBALU204 Compact CPU Module offers powerful performance, rapid scan times, and high processing capacity in a compact, easy-to-integrate design. Whether you’re working on process control, machine monitoring, or factory automation, this module provides the reliability and efficiency required to optimize your systems.
