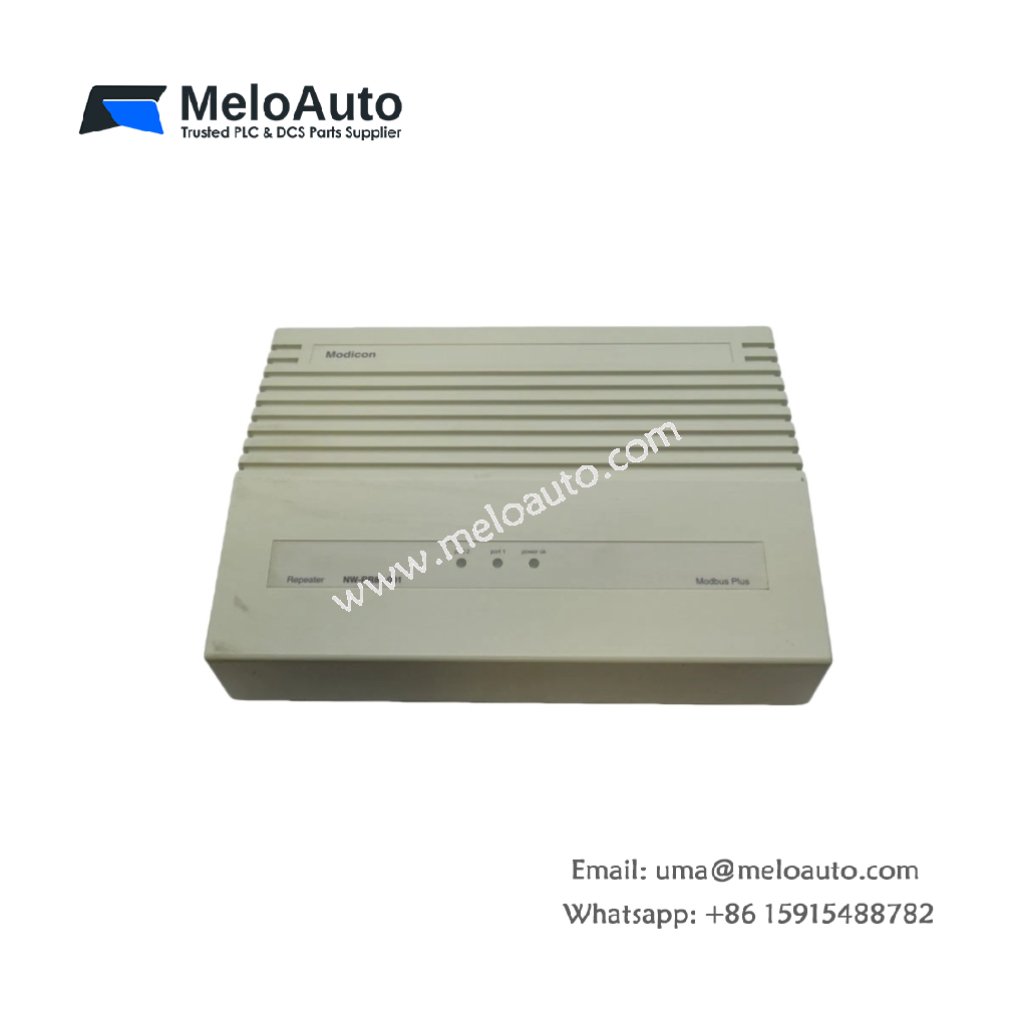

Schneider NWRR85001 Repeater Module

The Schneider NWRR85001 is a high-performance repeater module designed to extend the range and reliability of communication in industrial automation systems. This module ensures robust signal transmission over long distances, enhancing communication between devices in control systems. Specifically engineered for Schneider Electric’s automation platforms, the NWRR85001 guarantees seamless data transfer, even in environments with challenging communication conditions.

Key Features of the Schneider NWRR85001 Repeater Module

• Extended Communication Range: The Schneider NWRR85001 repeater module boosts signal strength, allowing for longer cable runs and improved data integrity.
• Enhanced Reliability: Designed for continuous operation, this module ensures stable performance, even in environments with high electromagnetic interference (EMI).
• Compact and Robust: Its compact size and robust construction make it suitable for harsh industrial environments.
• Easy Integration: Compatible with a wide range of Schneider Electric systems, ensuring flexibility and ease of integration.

Technical Specifications

Description

The Schneider NWRR85001 repeater module is an essential component for ensuring reliable data transmission in industrial control systems. Designed for use with Schneider Electric’s automation platforms, this module boosts communication signals over longer distances. It operates on an RS485 communication interface, providing a wide range of transmission speeds, from 9600 bps to 115200 bps, to suit various applications.

This repeater module is compact, measuring just 120 x 100 x 60 mm, and is designed for DIN rail mounting, making it easy to integrate into control cabinets. The NWRR85001 operates at 24 VDC and consumes only 50 mA of current, offering a power-efficient solution for extending communication networks. It can effectively transmit signals up to a distance of 1200 meters, ensuring seamless connectivity in large or distributed systems.

With an operating temperature range of -10°C to 60°C, the NWRR85001 is capable of performing in a variety of industrial environments. Its IP20 rating ensures that it is protected against dust and environmental factors typically encountered in industrial settings.

The module comes equipped with LED status indicators, providing real-time feedback on power, communication, and error status. This feature enables quick troubleshooting and ensures the system runs smoothly.

Applications

• Industrial Automation: Extend communication distance between devices in industrial automation systems.
• Building Control Systems: Improve communication between various building management components, such as HVAC and lighting.
• Energy Management: Use in energy management systems to ensure reliable data transmission across large facilities.
• Machine Monitoring: Enhance communication between machines and monitoring systems in manufacturing processes.

Benefits of the Schneider NWRR85001 Repeater Module

• Extended Signal Range: Significantly improves communication reliability over long distances.
• Compact Design: Its small footprint allows for easy integration into existing systems without occupying too much space.
• Reliable Performance: Suitable for harsh environments, ensuring continuous operation even in high-EMI areas.
• Low Power Consumption: Efficiently operates with minimal power usage, contributing to overall system energy savings.
• LED Indicators: Provides real-time status updates, allowing for quick issue identification and resolution.
