Schneider LV485500 Service Interface Kit

Overview

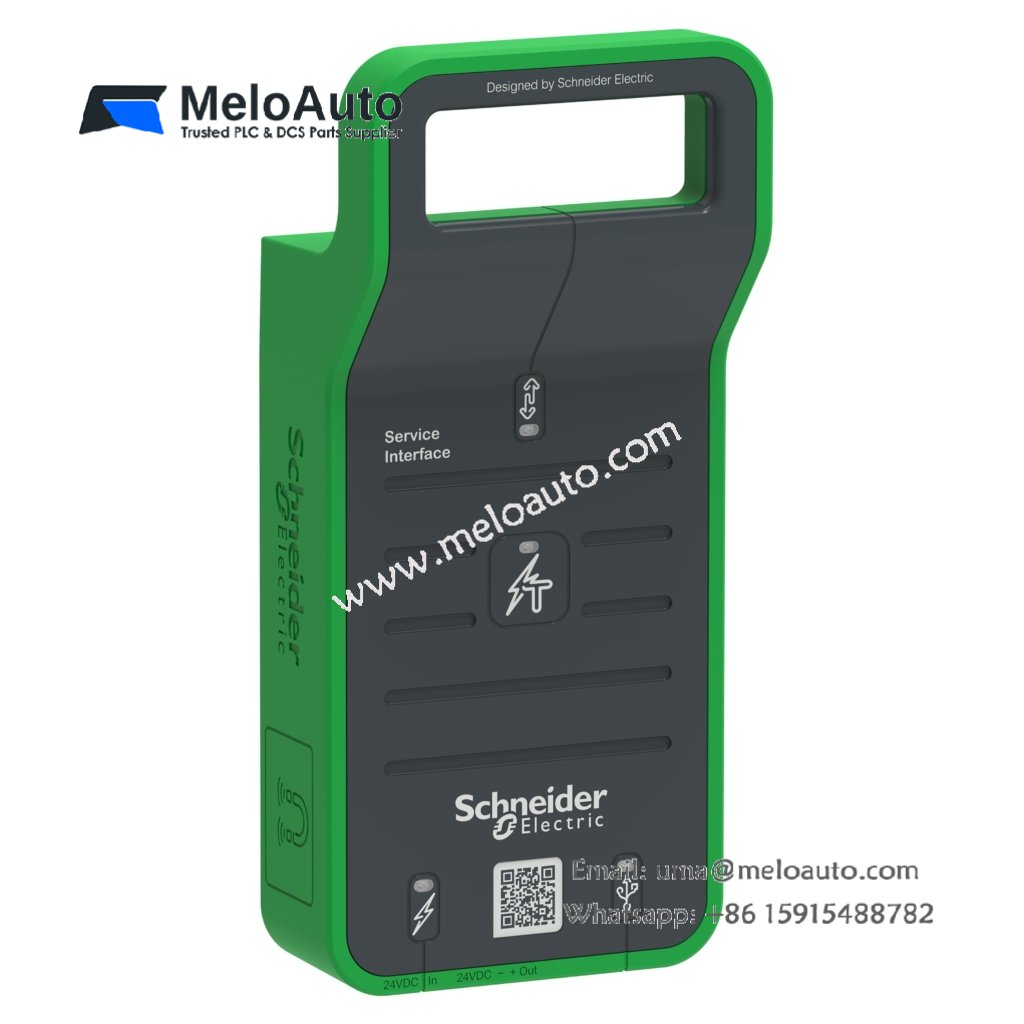

The Schneider LV485500 service interface kit supports Masterpact, EasyPact, and ComPact series breakers. It includes a power supply, USB cable, and test cables, enabling precise trip time measurement from 0 to 7500 s. Rated for 115/230 V AC, with IP20 protection, it ensures safe and reliable testing. Lightweight (2.8 kg) and compact, the kit simplifies maintenance and compliance verification for industrial circuit breakers. Ideal for industrial automation, electrical maintenance, and breaker testing applications.

Key Features

Compatible with Masterpact NT/NW, EasyPact MVS, ComPact NS630b…3200 breakers
Includes 1 power supply, 1 USB cable, and 3 test cables
Measures trip time from 0 to 7500 s with ±0.1% accuracy
Rated operational voltage 115/230 V AC ±10% 47–63 Hz
Impulse withstand voltage up to 12 kV
IP20 protection for safe operation

Technical Specifications

Height: 106 mm (4.17 in)
Width: 451 mm (17.76 in)
Depth: 358 mm (14.09 in)
Weight: 2.8 kg (6.17 lb)
Overvoltage category: II
Operating temperature: -10…55 °C (14…131 °F)
Storage temperature: -40…85 °C (-40…185 °F)
Humidity: 5…95% RH

Compliance and Standards

IEC 61010-1 / IEC 61010-2-030
UL 61010-1 / CSA C22.2 No 61010-1
EN 60068-2-32
EMC: EN 55011, EN 55032, IEC 61000-6-2 / IEC 61000-6-4
Harmonics and voltage fluctuation: IEC 61000-3-2, IEC 61000-3-3

Benefits

The LV485500 service interface kit simplifies breaker testing, enhances maintenance accuracy, and ensures compliance with industrial standards. Its compact design and lightweight build enable easy handling in field and workshop environments.
