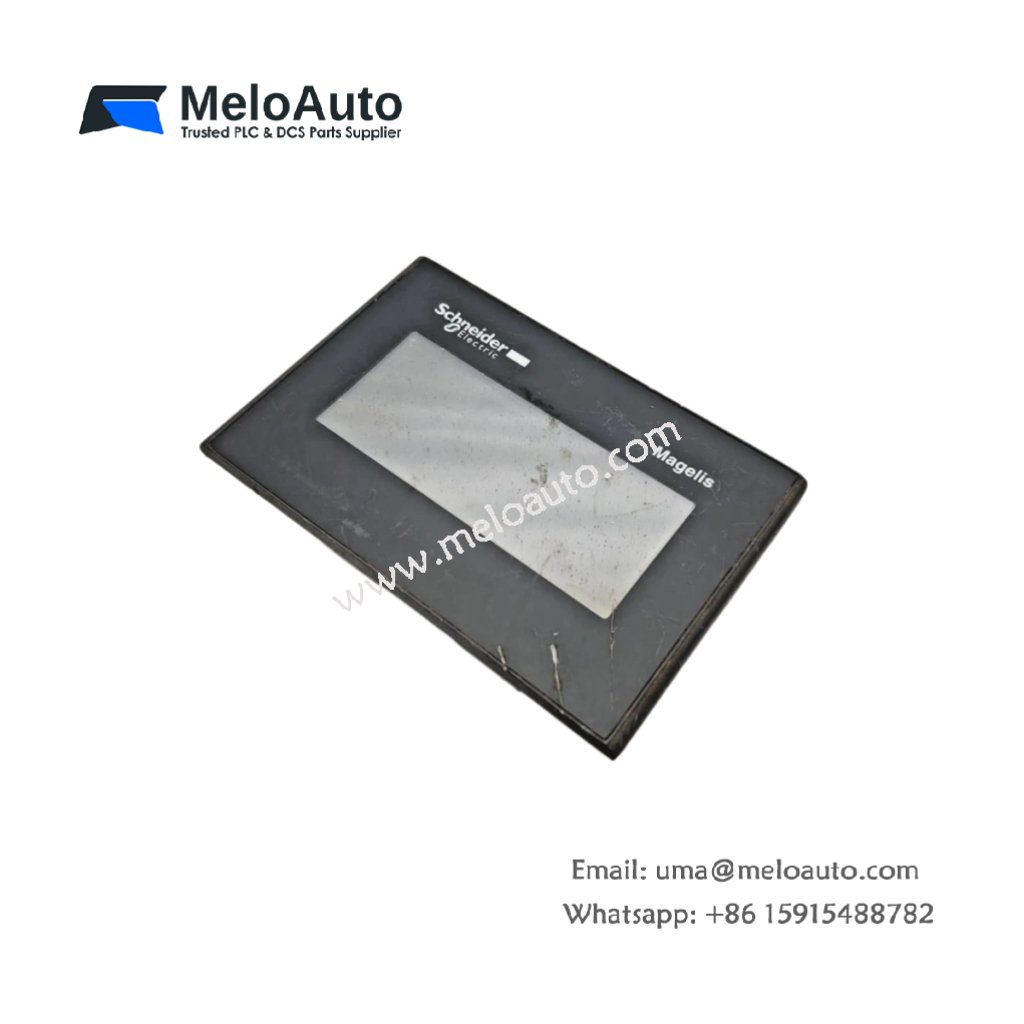

Schneider HMISTO512 Touch Panel Screen

Overview of the Schneider HMISTO512 Touch Panel Screen

The Schneider HMISTO512 is a highly reliable touch panel screen designed for seamless interaction in industrial environments. With its high-resolution display and user-friendly interface, it offers efficient control and monitoring of automation systems. Whether for machine control, process monitoring, or factory automation, the HMISTO512 ensures operators can easily view and adjust settings in real-time.

This touch panel screen features a robust design and advanced functionality, making it a reliable choice for demanding industrial applications. With intuitive navigation, it enhances the user experience and optimizes overall operational efficiency.

Key Technical Specifications

Below are the key specifications for the Schneider HMISTO512 Touch Panel Screen:

Specification	Details
Model Number	HMISTO512
Product Type	Touch Panel Screen
Display Type	TFT LCD Display
Display Size	5.7 inches
Resolution	640 x 480 pixels
Touchscreen Type	Resistive Touchscreen
Weight	0.5 kg (1.1 lbs)
Dimensions (W x H x D)	174 mm x 144 mm x 38 mm
Input Power	24 V DC
Communication Ports	Serial (RS232/RS485), Ethernet
Mounting Type	Panel Mount
Operating Temperature Range	0°C to 50°C
Storage Temperature Range	-20°C to 60°C
Protection Class	IP65 (front)
RoHS Compliant	Yes

Features of the HMISTO512 Touch Panel Screen

Clear and Vibrant Display: The 5.7-inch TFT LCD display offers clear visuals, ensuring readability even in challenging lighting conditions. With a resolution of 640 x 480 pixels, it provides sharp and detailed information to the operator.
Resistive Touchscreen: The resistive touchscreen enables accurate input, even when the operator uses gloves or interacts with the screen in harsh environments.
Compact and Durable Design: With dimensions of 174 mm x 144 mm x 38 mm and weighing just 0.5 kg, the HMISTO512 is both compact and lightweight. Its robust design ensures reliable operation in demanding industrial settings.
Wide Temperature Range: The HMISTO512 operates effectively in temperatures from 0°C to 50°C and can withstand storage temperatures between -20°C to 60°C, making it versatile for various industrial environments.
Versatile Communication: The device includes Serial (RS232/RS485) and Ethernet communication ports. This enables easy integration into existing automation systems, offering flexible communication options.
IP65 Protection: Rated IP65 for the front panel, the HMISTO512 is dust-tight and resistant to water splashes. This makes it ideal for use in harsh factory environments where environmental protection is essential.
Efficient Power Supply: The screen operates with a 24 V DC power input, offering energy-efficient and continuous operation.

Applications of the HMISTO512 Touch Panel Screen

The Schneider HMISTO512 is suitable for various industrial applications:

Machine Control: It simplifies the monitoring and control of machines, providing operators with real-time data to optimize production and machinery efficiency.
Process Monitoring: The HMISTO512 is perfect for controlling and adjusting process parameters, especially in industries like food processing, chemicals, and energy.
Automation Systems: It integrates seamlessly with automation systems, offering efficient control over industrial operations and enhancing system performance.
Factory Automation: The HMISTO512 is used widely in factory automation for process control, making it easier for operators to monitor system performance and adjust settings as needed.

Why Choose the HMISTO512 Touch Panel Screen?

The Schneider HMISTO512 offers a reliable and efficient solution for industrial touch panel requirements. With a high-resolution TFT LCD display, a responsive resistive touchscreen, and IP65 protection, it ensures smooth operation in tough industrial environments. Additionally, the HMISTO512 provides a wide range of communication options, making it suitable for various industrial applications, from machine control to process monitoring.
