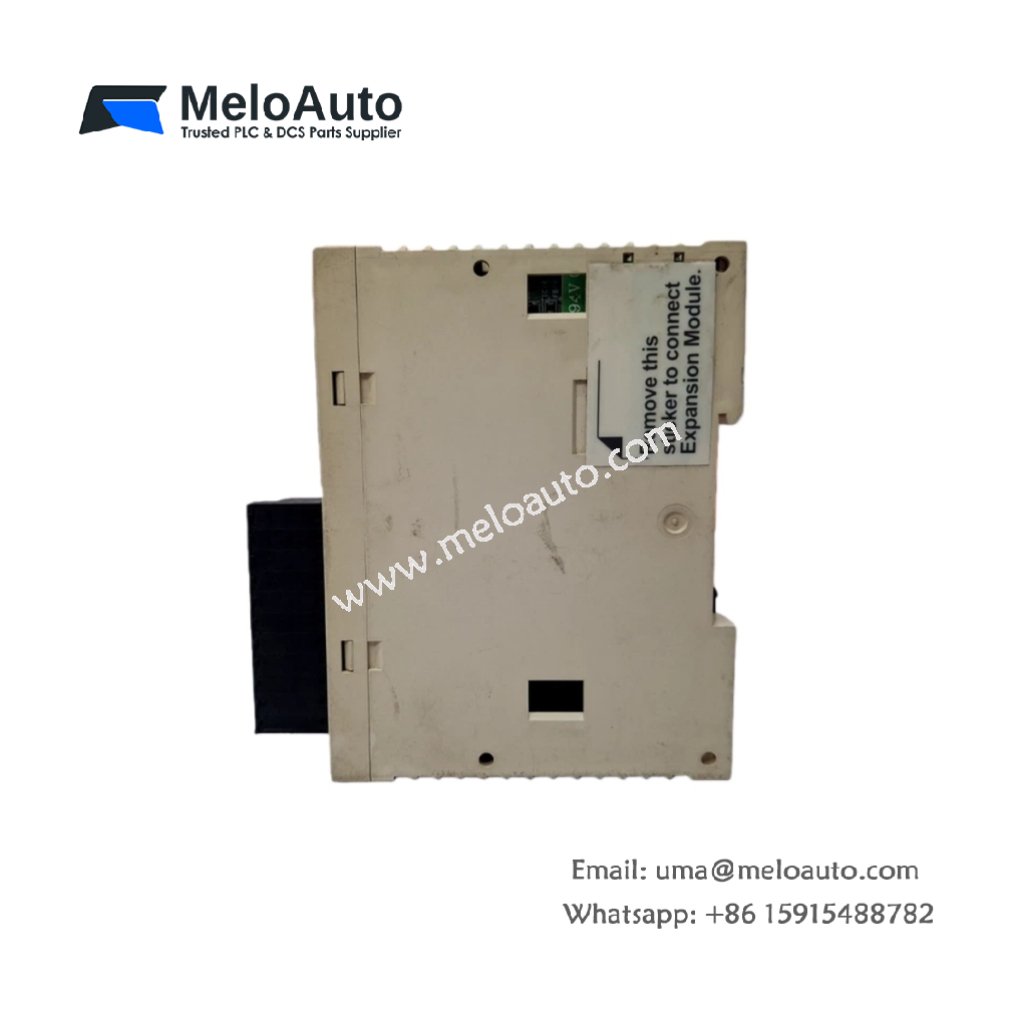

Schneider Electric TWDAMI2HT Analog Input Module

The Schneider Electric TWDAMI2HT is a high-performance analog input module from the Twido series, designed for use with 24 V DC supply systems. This module supports two analog inputs, offering excellent precision for applications requiring current (4-20 mA) or voltage (0-10 V) measurements. It ensures seamless integration with your automation systems and provides reliable data acquisition for diverse industrial environments.

Key Features of the TWDAMI2HT Analog Input Module

Model: TWDAMI2HT
Product Type: Analog Input Module
Series: Twido Series
Manufacturer: Schneider Electric

Technical Specifications

Specification	Details
Product Type	Analog Input Module
Series	Twido
Model	TWDAMI2HT
Analog Inputs	2
Input Types	Current (4-20 mA), Voltage (0-10 V)
Input Resolution	12 bits
I/O Connection	Removable screw terminal block
Cross Talk	<= 2 LSB
Supply Voltage	24 V DC

Design and Performance

The TWDAMI2HT offers two types of analog inputs: current input (4-20 mA differential) and voltage input (0-10 V non-differential), making it a versatile solution for different industrial applications. The 12-bit input resolution guarantees accurate and reliable readings, ensuring your control system responds to data precisely. With a removable screw terminal block, installation and maintenance become straightforward, minimizing downtime.

Applications and Use Cases

This module is ideal for integration into industrial automation systems, providing accurate signal processing in various industries. Its robust design ensures compatibility with Schneider Electric’s Twido PLC range, making it an essential component for applications in process control, factory automation, and more.

Why Choose the TWDAMI2HT?

High precision with 12-bit resolution
Flexible inputs for current and voltage signals
Reliable performance with low cross talk
Easy installation with removable terminal block

The TWDAMI2HT module stands out for its ease of use, precise measurement, and compatibility with Schneider Electric’s Twido PLC systems. Whether you are upgrading existing systems or designing new ones, this module will support your automation needs efficiently.
