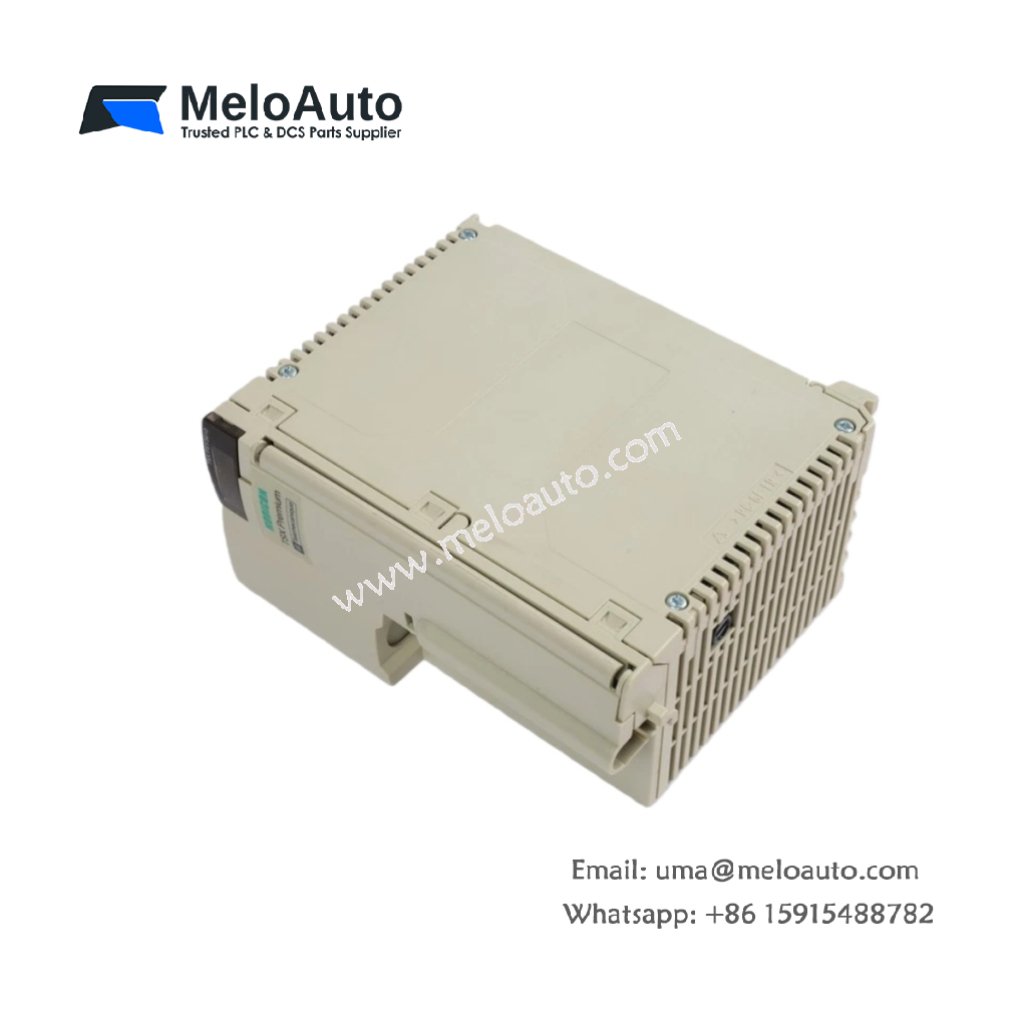

Schneider Electric TSXPSY3610MC Power Supply Module

The Schneider Electric TSXPSY3610MC is a highly reliable power supply module designed for use within the Modicon Premium Automation platform. It provides a stable 24 V DC output with a current capacity of up to 2700 mA, making it ideal for demanding industrial applications.

This module ensures safe and consistent power delivery with overload protection, short-circuit protection, and overvoltage protection. It also features local signaling with LEDs to indicate the presence of voltage and battery faults. The TSXPSY3610MC supports dual outputs, delivering 50 W total secondary power.

Key Features:

• Primary Voltage: 24 V DC (range: 19.2 V to 30 V DC)
• Input Current: Up to 2700 mA at 24 V DC
• Inrush Current: 150 A at activation
• Overload Protection: Ensures protection on secondary circuits
• Short-Circuit & Overvoltage Protection: Prevents damage to components
• Total Secondary Power: 50 W with 19 W at 24 V DC and 35 W at 5 V DC
• Secondary Voltage Current: 0.6 A at 24 V DC, 7 A at 5 V DC

Applications:

• This power supply module is specifically designed for use in Modicon Premium Automation platforms.
• It provides reliable power to automation modules, ensuring operational continuity in complex industrial control systems.

Technical Specifications

Additional Features:

• LED Signaling: The TSXPSY3610MC includes a green LED indicating voltage presence and a red LED signaling battery faults.
• Compact Design: With a weight of just 0.78 kg, the module is easy to integrate and install in various setups.
• Reliable Power Supply: Dual outputs provide flexibility in powering 24 V DC and 5 V DC components.
