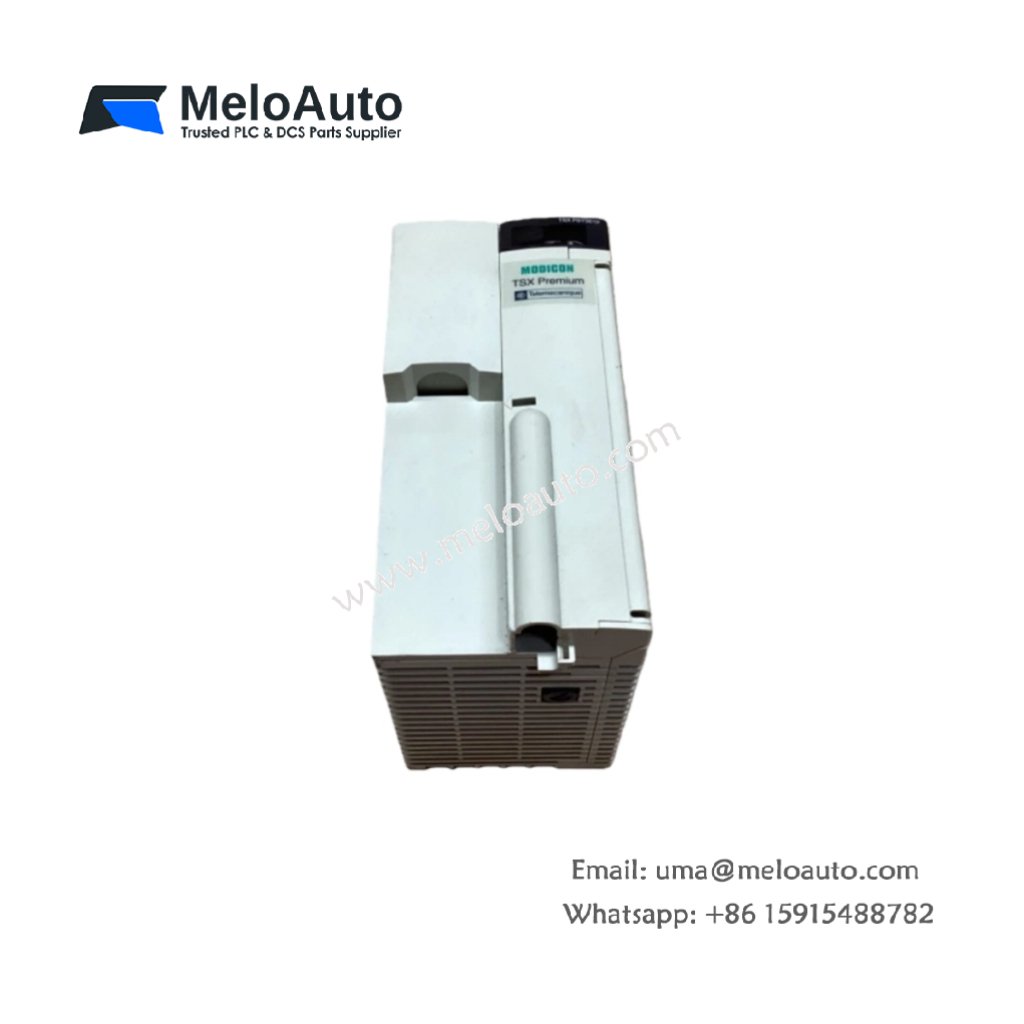

Schneider Electric TSXPSY3610 PLC Power Supply Module

Product Overview

The TSXPSY3610 from Schneider Electric is a highly reliable power supply module specifically designed for PLC systems. Operating at 24 VDC and providing a 36 Watt power output, this module ensures stable performance in industrial automation applications. It efficiently powers your control system, enabling seamless operation of connected devices.

Key Features and Specifications

• Manufacturer: Schneider Electric
• Product Type: PLC Power Supply Module
• Product Line: Modicon
• Part Number: TSXPSY3610
• Output Power: 36 Watt
• Output Voltage: 24 VDC
• Current Output: 1.5 A
• Efficiency: ≥ 90%
• Mounting Type: DIN Rail
• Dimensions: 125 mm x 75 mm x 110 mm
• Weight: 0.55 kg
• Operating Temperature Range: -10°C to +55°C
• Storage Temperature Range: -40°C to +85°C
• Protection Features: Overvoltage, Overcurrent, and Short Circuit Protection

Detailed Description

The TSXPSY3610 power supply module is built to deliver reliable and consistent power to PLC systems. With an output voltage of 24 VDC and a 36 Watt power output, this module provides the necessary power for effective PLC operation. It can supply 1.5 A of current, ensuring stable energy delivery to your devices.

Designed with high efficiency (≥ 90%), the TSXPSY3610 ensures minimal energy loss, improving overall system performance and reducing operational costs. The module is mounted on a DIN rail, making it easy to integrate into existing control panels without taking up excessive space.

This power supply module is capable of operating within a broad temperature range. It functions efficiently in ambient temperatures from -10°C to +55°C, and it can withstand storage conditions between -40°C and +85°C. In addition, the TSXPSY3610 includes built-in protection features such as overvoltage, overcurrent, and short circuit protection, ensuring the safety and reliability of your system.

Applications

The TSXPSY3610 is suitable for various industrial automation applications, including:

• PLC Systems: Provides stable and efficient power for PLCs and their connected components.
• Control Panels: Powers devices in control systems, ensuring their proper functioning.
• Industrial Automation: Supplies power to automation equipment, sensors, and actuators in factories and plants.

This power supply module plays a crucial role in maintaining system stability and enhancing the performance of automation systems.
