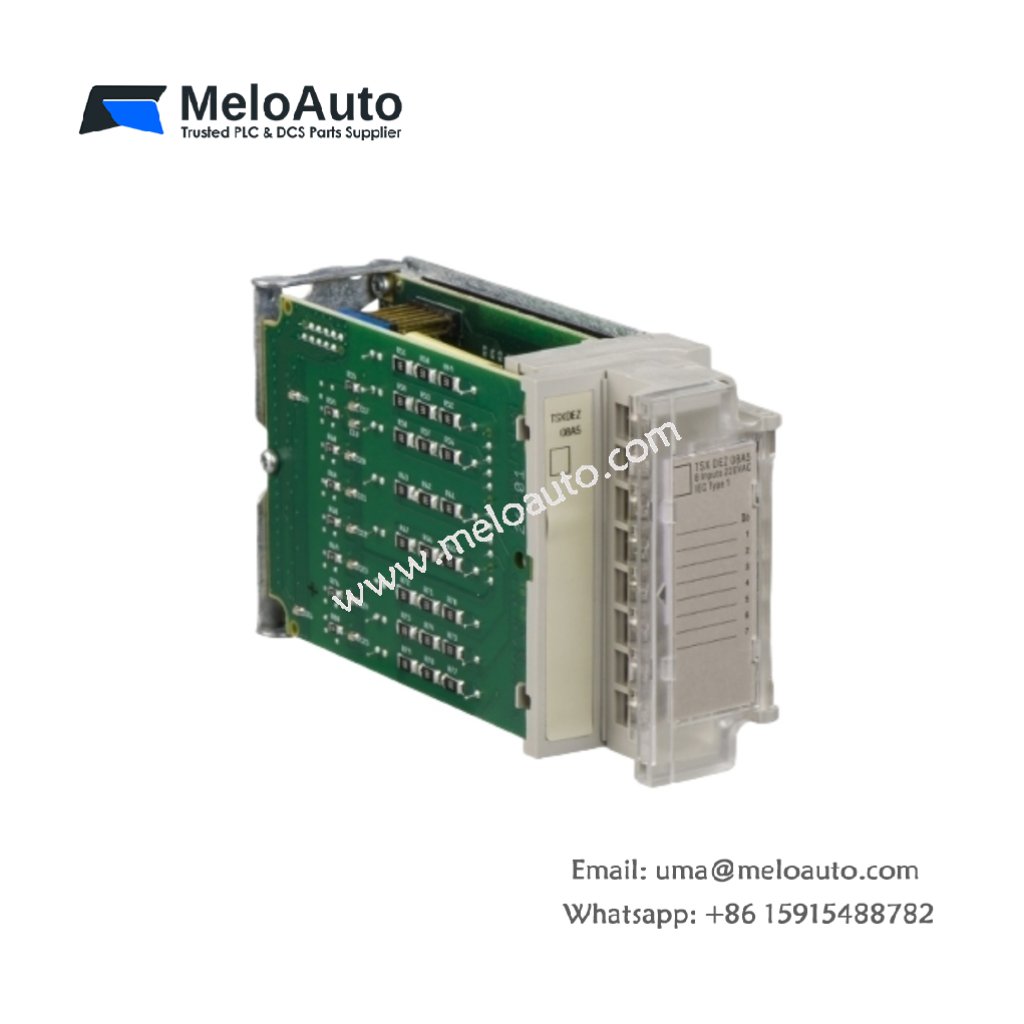

Schneider Electric TSXDEZ08A5 Discrete Input Module

The Schneider Electric TSXDEZ08A5 is a highly reliable discrete input module designed for use in the Modicon TSX Micro automation platform. This module features 8 discrete input channels, ensuring precise monitoring and control in industrial automation systems. It supports a voltage range of 170-264 V AC, making it ideal for applications that require stable, high-voltage inputs.

With its compact screw terminal block, the TSXDEZ08A5 ensures quick and secure connections, making installation straightforward. It operates efficiently across a wide input frequency range of 47-63 Hz and supports proximity sensors for flexible input configurations.

Key Features:

Number of Inputs: 8 discrete inputs
Input Voltage Range: 170 V to 264 V AC
Input Frequency Range: 47 Hz to 63 Hz
Current Consumption: 20 mA
Power Dissipation: 1.4 W
Screw Terminal Block: Easy and reliable connections
Voltage State Transition:
- State 0 to State 1: 11 to 18 ms
- State 1 to State 0: 10 to 22 ms
Current State 0: < 40 V
Current State 1: >= 120 V

This module is compatible with 2-wire proximity sensors and capacitive sensors, providing excellent flexibility in system design. It features robust isolation with a 1500 V AC isolation voltage to protect the system from electrical surges and interference.

Technical Specifications:

Parameter	Value
Model	TSXDEZ08A5
Product Type	Discrete Input Module
Number of Inputs	8
Input Voltage Range	170 V to 264 V AC
Input Frequency	47 Hz to 63 Hz
Input Current	10 mA (state 0), 12 mA (state 1)
Response Time (State 0 to State 1)	11 to 18 ms
Response Time (State 1 to State 0)	10 to 22 ms
Power Consumption	20 mA
Power Dissipation	1.4 W
Current State 0	< 40 V
Current State 1	>= 120 V
Input Compatibility	2-wire proximity sensor, capacitive
Isolation Voltage	1500 V AC (1 s)
Standards	IEC 1131-2 Type 1

Applications:

Ideal for industrial automation systems requiring discrete input control.
Suitable for applications that use proximity sensors and capacitive sensors for various input configurations.
Designed to integrate seamlessly with the Modicon TSX Micro platform, providing flexibility and reliability.

Additional Features:

High Isolation: Protects against electrical disturbances with a 1500 V AC isolation voltage.
Compact Design: With 8 discrete inputs and a screw terminal block for easy integration.
Fast Response: The TSXDEZ08A5 offers quick state transitions, ensuring efficient system operation.
