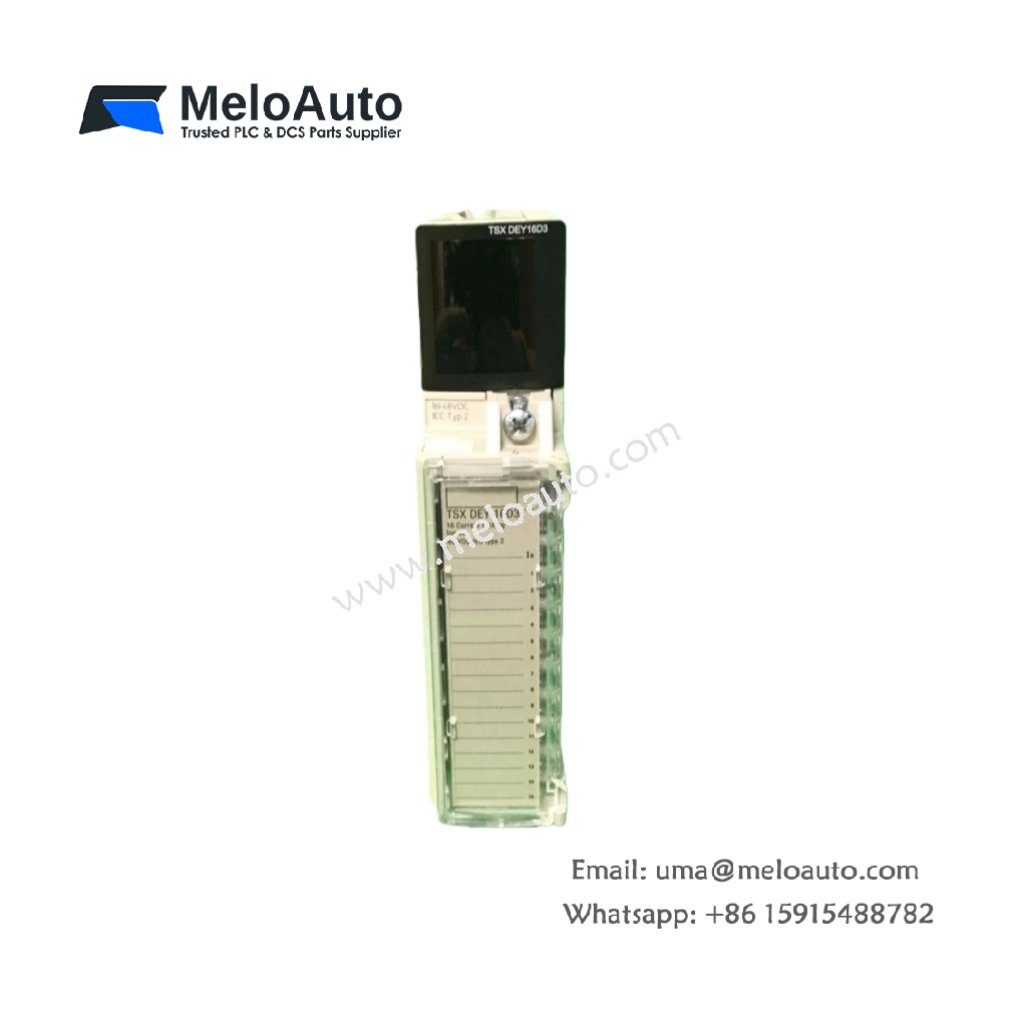

Schneider Electric TSXDEY16D3 Discrete Input Module

The Schneider Electric TSXDEY16D3 is a discrete input module designed for use within the Modicon Premium automation platform. This compact and reliable module offers 16 isolated input channels, providing precise control and monitoring for various industrial applications. It supports 48 V DC inputs and is compatible with a wide range of 2-wire/3-wire proximity sensors as per EN/IEC 60947-5-2 standards.

Key Features and Benefits

16 Isolated Inputs: The TSXDEY16D3 module offers 16 current-sink isolated inputs, ideal for a variety of automation systems.
Wide Input Voltage Range: Operates within a voltage range of 38 to 60 V DC, making it versatile and adaptable to different systems.
Sensor Power Supply: The module supports 2-wire/3-wire proximity sensors, enhancing compatibility with various sensor types.
Compact and Efficient: With a compact design, the module consumes only 135 mA at 24 V DC and 80 mA at 5 V DC, ensuring energy efficiency.
Fast Response Time: The module guarantees response times of ≤ 7 ms, ensuring reliable real-time performance in industrial automation.
High Isolation Resistance: The TSXDEY16D3 offers isolation resistance greater than 10 MΩ, ensuring safe operation in demanding environments.
Screw Terminal Electrical Connection: The module features easy-to-use screw terminal connections for quick and secure installation.

Technical Specifications

Parameter	Details
Product Type	Discrete Input Module
Manufacturer	Schneider Electric
Product Line	Modicon Premium
Part Number	TSXDEY16D3
Weight	0.66 lbs (0.3 kg)
Number of Inputs	16 Isolated Inputs
Input Voltage	48 V DC Positive
Voltage Range	38 to 60 V DC
Input Current	7 mA
Sensor Compatibility	2-wire/3-wire Proximity Sensors (EN/IEC 60947-5-2)
Input Impedance (State 1)	7000 Ohms
Response Time	≤ 7 ms
Power Dissipation	1 W + 0.3 W x Number of Channels Used
Isolation Resistance	≥ 10 MΩ at 500 V DC
Electrical Connection	Screw Terminal
Current Consumption	135 mA at 24 V DC, 80 mA at 5 V DC
Module Format	Standard
Operating Temperature Range	0°C to 60°C

Applications

The Schneider Electric TSXDEY16D3 is an excellent choice for industrial control systems that require reliable input management. It is perfect for applications in automation platforms, machine monitoring, and control systems that rely on proximity sensors. With 16 isolated inputs and the ability to operate within a wide voltage range, this module ensures seamless integration and high-performance results in diverse industrial environments.

Manufacturer Overview

Schneider Electric is a global leader in automation and energy management solutions. Their Modicon Premium automation platform, which includes the TSXDEY16D3 module, provides cutting-edge products designed to improve operational efficiency and system reliability across various industries. Schneider Electric continues to innovate and deliver solutions that meet the challenges of modern industrial automation.
