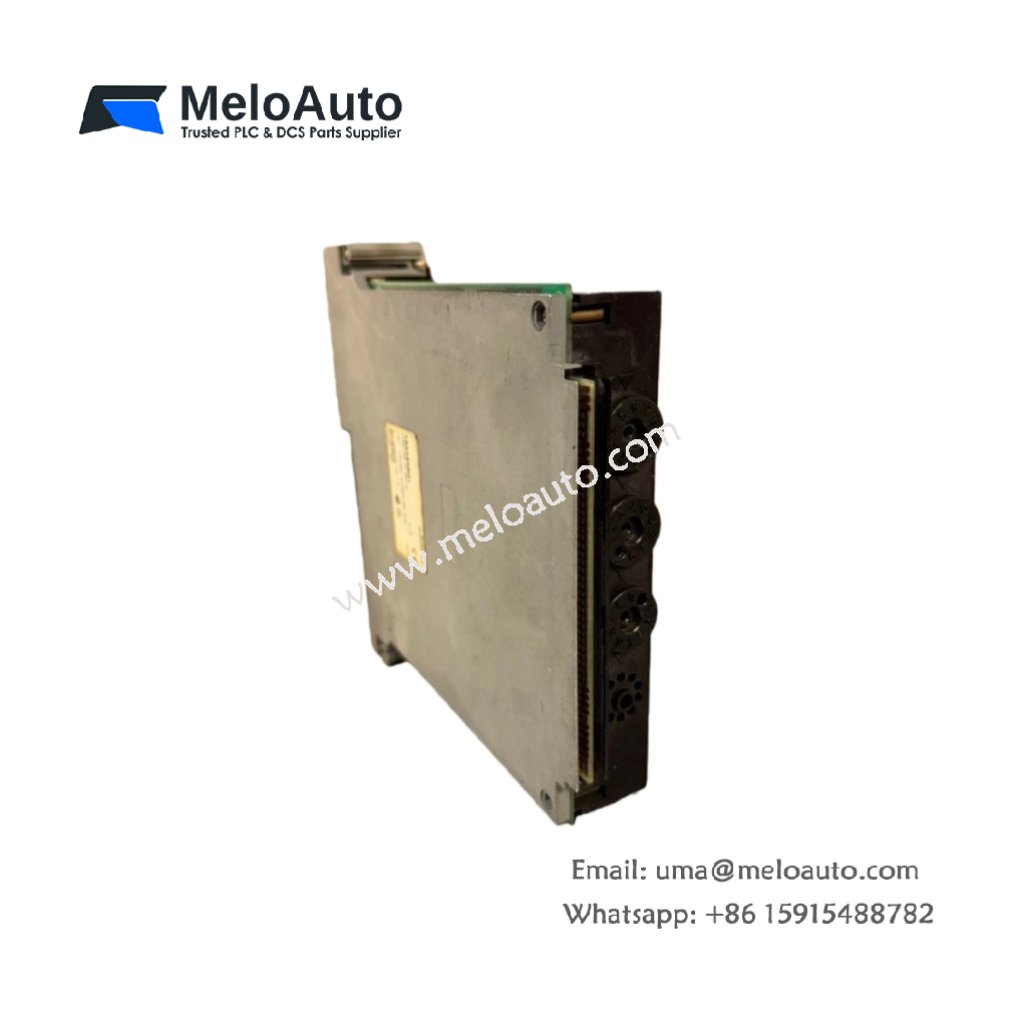

Schneider Electric TSXAEM1613TSX-AEM1613 Analog Output Module

The TSXAEM1613TSX-AEM1613, from Schneider Electric’s Modicon Premium PLC series, is a high-performance analog output module. It offers 16 individually isolated channels, ensuring precise signal generation for industrial automation applications. The module supports both voltage and current output modes, providing flexibility for integration into distributed control systems that demand reliability and accuracy.

Key Features of TSXAEM1613TSX-AEM1613

• Manufacturer: Schneider Electric
• Product Line: Modicon Premium
• Part Number: TSXAEM1613TSX-AEM1613
• Product Type: Analog Output Module
• Number of Channels: 16 outputs
• Output Signal Types:
  • Voltage: 0-10 V
  • Current: 0-20 mA or 4-20 mA
• Resolution: 12 bits
• Output Impedance:
  • Voltage: 1 kΩ
  • Current: 3500 Ω
• Accuracy: +0.5% of full scale
• Conversion Time: <1 ms per channel
• Isolation:
  • Channel-to-channel isolation
  • Channel-to-bus isolation
• Diagnostics:
  • Channel fault detection
  • Output status monitoring
• Power Consumption: 350 mA at 5V
• Module Format: Standard single-slot
• Operating Temperature: 0°C to 60°C
• Storage Temperature: -25°C to 70°C
• Relative Humidity: 10 to 95% (non-condensing)
• Certifications: CE, UL, CSA, IEC 61131-2

Detailed Technical Specifications

Description of TSXAEM1613TSX-AEM1613 Analog Output Module

The TSXAEM1613TSX-AEM1613 is a robust and efficient analog output module designed for industrial automation systems. It provides 16 isolated output channels, supporting both voltage and current outputs. This versatility makes it a prime choice for a wide range of applications in process control, signal generation, and machine control.

With a 12-bit resolution, the module ensures high precision in signal output. Its +0.5% accuracy ensures that the module delivers reliable and stable output across diverse industrial applications. The conversion time of less than 1 ms per channel makes the TSXAEM1613TSX-AEM1613 ideal for time-sensitive tasks that require rapid and accurate signal processing.

Additionally, the module features robust isolation between channels and between channels and the bus. This isolation minimizes the impact of electrical noise and interference, ensuring the integrity of the output signals. Built-in diagnostics like channel fault detection and output status monitoring enable real-time monitoring and troubleshooting of the module.

Environmental and Installation Specifications

The TSXAEM1613TSX-AEM1613 is designed to operate in a wide range of environmental conditions, with an operating temperature range from 0°C to 60°C and a storage temperature range from -25°C to 70°C. The module can withstand relative humidity levels of 10 to 95% (non-condensing), making it suitable for many industrial environments.

This module complies with several international certifications, including CE, UL, CSA, and IEC 61131-2, ensuring that it meets stringent safety and performance standards.

Installation Notes

To optimize the performance of the TSXAEM1613TSX-AEM1613 module, Schneider Electric recommends the following installation practices:

• Mount the module in a Modicon Premium rack with the appropriate slot allocation.
• Configure each channel for voltage or current mode via software.
• Use shielded cables and ensure proper grounding to minimize signal interference.
• Maintain ambient conditions within the specified operating limits.
• Follow Schneider Electric’s wiring and safety guidelines for analog modules.

Applications of TSXAEM1613TSX-AEM1613

The TSXAEM1613TSX-AEM1613 is perfect for applications requiring reliable and precise analog output signals, such as:

• Process control systems for signal generation and monitoring
• Machine control in industrial settings
• Automated systems requiring high-precision output signals
• Signal generation for test and measurement applications
