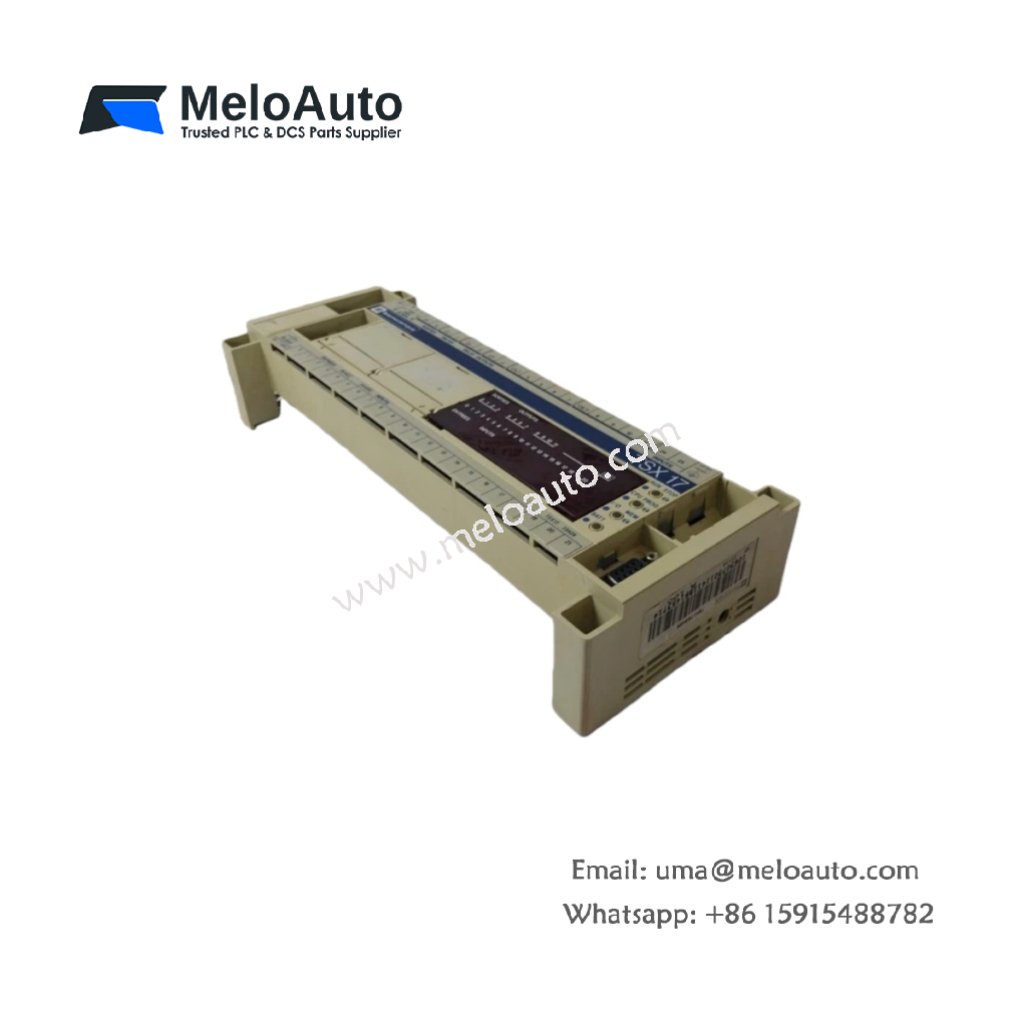

Schneider Electric TSX1723428 Programmable Controller

Overview

The Schneider Electric TSX1723428 is a versatile programmable controller from the Modicon Nano TSX-17 series. Designed for automation tasks, this device operates efficiently within a rated supply voltage of 110/240 Volts AC. It supports isolated 24 Volts DC inputs and features reliable relay output options, making it suitable for a wide range of industrial applications.

Key Features

The TSX1723428 provides 34 input/output channels, allowing for flexible integration into various control systems. With memory options of 8 kilobytes, it supports both EEPROM and EPROM types for enhanced data storage and retrieval. For added protection, the controller is rated IP20 and is capable of operating in ambient temperatures ranging from 5°C to 55°C.

The TSX1723428 can be installed at altitudes up to 6,561.68 feet (2,000 meters), making it ideal for a wide range of operational environments. It also features an internal memory backup time of approximately 1 hour and a battery lifespan of 2 years for extended reliability.

Technical Specifications

Parameter	Specification
Manufacturer	Schneider Electric
Product Type	Programmable Controller
Product Line	Modicon Nano TSX-17
Part Number	TSX1723428
Weight	1.00 lbs (0.45 kg)
Rated Supply Voltage	110/240 Volts AC
Input Type	24 Volts DC Isolated Input
Output Type	Relay Output
Supported Memory Type	EEPROM and EPROM
Memory Size	8 Kilobytes (Maximum)
Electrical Connection	Removable Terminal Block
Protection Rating	IP20
Operating Temperature	5°C to 55°C (Non-Condensing)
Storage Temperature	-25°C to 70°C (Non-Condensing)
Number of Inputs/Outputs	34 Channels
Memory Backup Time	Approximately 1 Hour
Battery Life Span	Approximately 2 Years
Thermal Current Rating	3 Amperes
Altitude	6,561.68 feet (2,000 meters)

Application Areas

The TSX1723428 is ideal for industrial control applications in various sectors, including manufacturing, packaging, and process automation. It offers a reliable solution for operations that require robust input/output handling, memory storage, and protection in a variety of environmental conditions.
