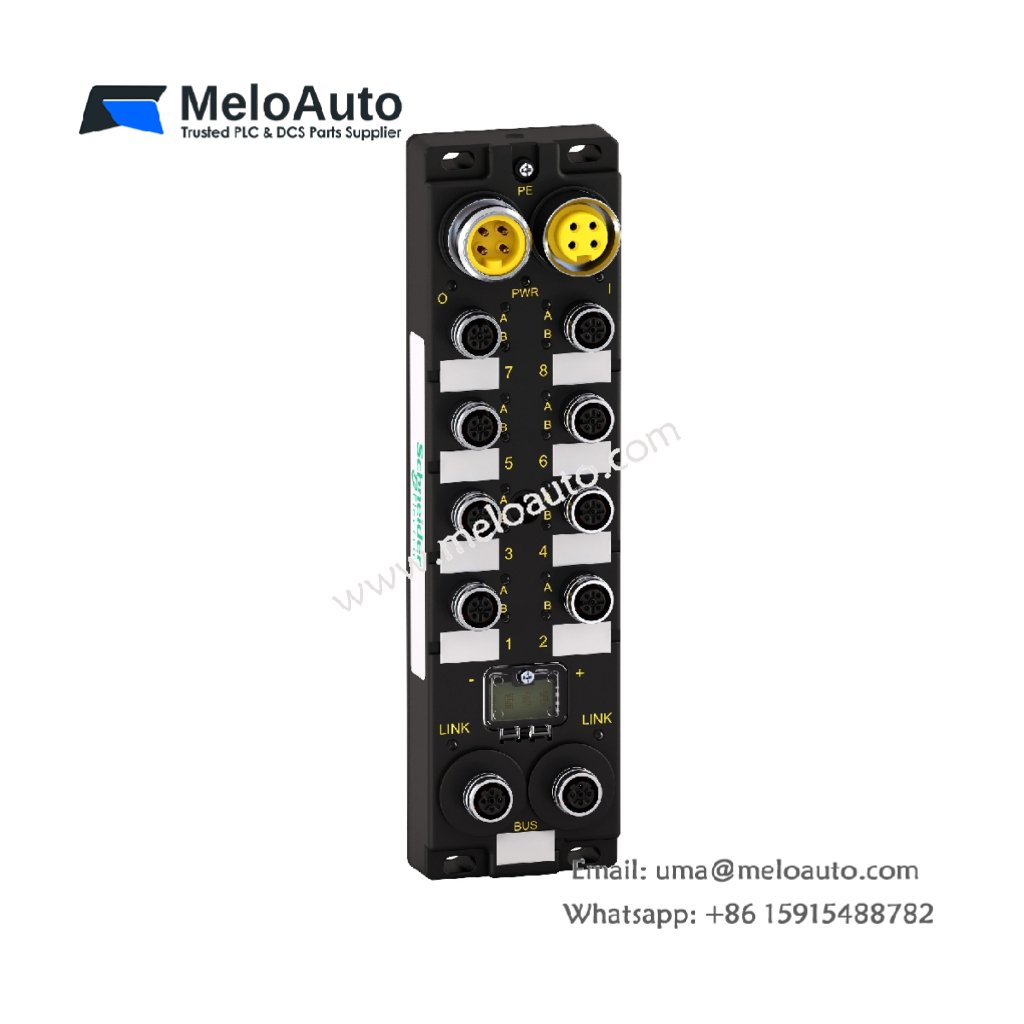

Schneider Modicon ETB1EI12E04SPP0 I/O Distributed Module In Stock

Overview

The Schneider Electric ETB1EI12E04SPP0 belongs to the Modicon ETB series and delivers reliable distributed I/O performance for Ethernet/IP networks. It integrates 12 inputs and 4 outputs in one compact block, making it suitable for demanding automation systems. Its rugged IP67-rated housing ensures strong protection in harsh industrial environments.

Input and Output Features

The ETB1EI12E04SPP0 offers 12 digital contact inputs with positive logic and fast 2.5 ms response time. It also provides 4 high-performance outputs, each supporting up to 8 A per channel and 2 A per module, with short-circuit protection and a switching frequency of 200 Hz.

Power and Connectivity

This module operates on a 24 V DC supply voltage and uses M12 connectors for secure and easy field installation. It withstands a short-circuit current of 6.5 A, ensuring system stability and long service life.

Environmental Durability

The ETB1EI12E04SPP0 withstands temperatures from -25 °C to +70 °C during operation and -40 °C to +85 °C in storage. It resists vibrations up to 10 gn and complies with international standards IEC 60529 and IEC 60068-2-8.

Technical Specifications

Specification	Details
Manufacturer	Schneider Electric
Series	Modicon ETB
Model	ETB1EI12E04SPP0
Module Type	I/O distributed module, Ethernet/IP
Input Channels	12 (contact, positive logic)
Output Channels	4 (2 A per module, 8 A per output)
Response Time	2.5 ms
Switching Frequency	200 Hz
Short-Circuit Current	6.5 A
Output Protection	Short-circuit protection
Supply Voltage	24 V DC
Connector Type	M12
Protection Degree	IP67
Vibration Resistance	10 gn
Standards	IEC 60529, IEC 60068-2-8
Operating Temperature	-25…70 °C (-13…158 °F)
Storage Temperature	-40…85 °C (-40…185 °F)
