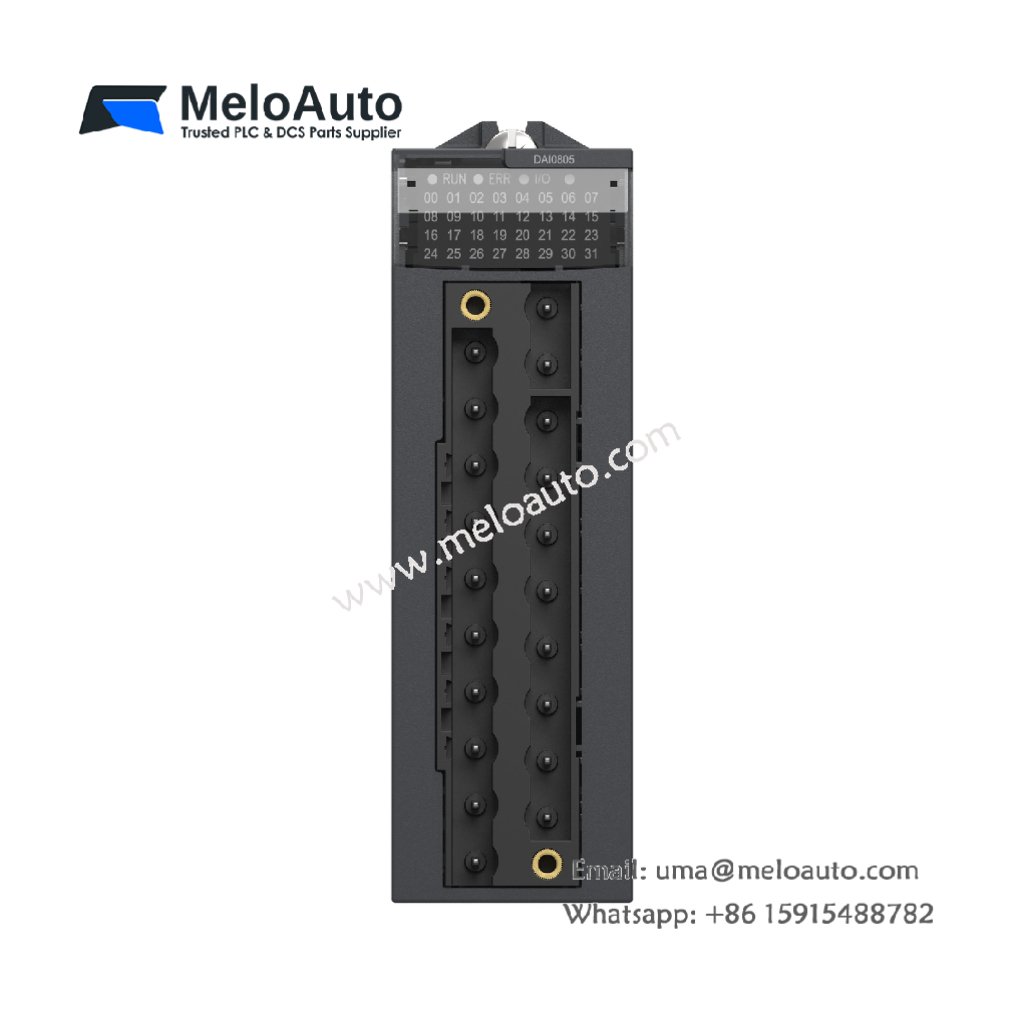

Schneider Electric BMXDAI0805 – Modicon X80 Discrete Input Module, 8 Channels, 200–240V AC

Reliable Input Module for Modicon PAC Systems

The BMXDAI0805 belongs to the Schneider Electric Modicon X80 series, designed for M580 and M340 programmable automation controllers. This discrete input module offers 8 isolated capacitive channels, ensuring dependable signal processing in industrial automation systems. It supports AC input voltages between 200V and 240V with a guaranteed input impedance of 21kΩ, enabling compatibility with both 2-wire and 3-wire proximity sensors.

Engineers value the BMXDAI0805 for its compact form, weighing only 0.12kg and measuring 118 × 118 × 55 mm. Its diagnostic LEDs provide real-time module status, channel monitoring, and error alerts, reducing downtime during troubleshooting. With a typical current consumption of 76mA at 3.3V DC and 93.6mA at 24V DC, the module ensures energy efficiency.

Key Features of BMXDAI0805

• 8 discrete isolated capacitive inputs
• Input voltage: 200–240V AC, 50/60 Hz
• Power dissipation: 4.73W
• Channel protection via external 0.5A fast-blow fuse
• Guaranteed state detection: ≥6mA (ON), ≤4mA (OFF)
• Dielectric strength of 1500V AC at 50/60Hz for 1 minute
• LED indicators for operation, diagnostics, and errors
• Suitable for proximity sensors IEC 60947-5-2 and IEC 61131-2 Type 2

Technical Specifications

Industrial Applications

The BMXDAI0805 input module is ideal for medium to large-scale process industries, including manufacturing, utilities, and energy sectors. Its robust design ensures stable operation in harsh conditions, while compatibility across Modicon platforms reduces spare parts inventory and training costs.
