Schneider Electric BMXAMI0410 Isolated Analog Input Module

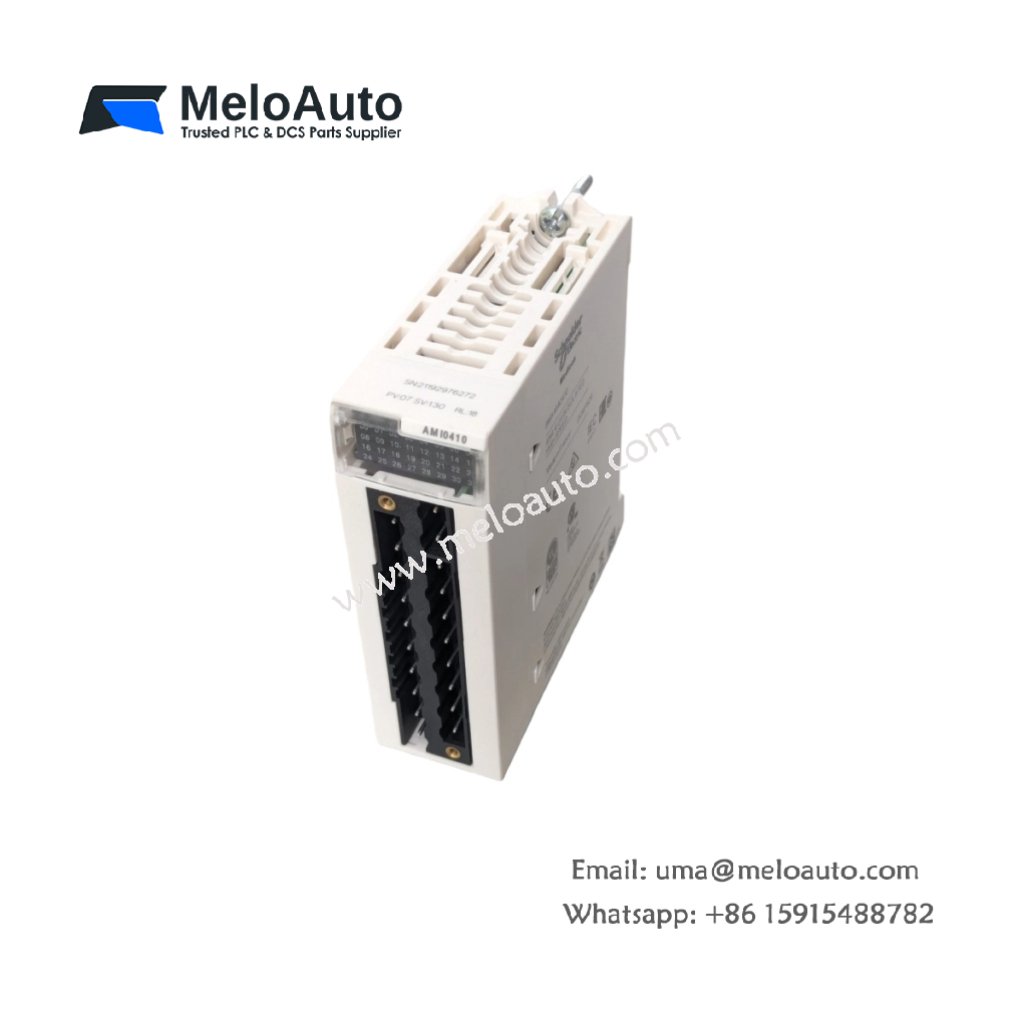

The Schneider Electric BMXAMI0410 is a high-performance isolated analog input module, designed for quick and accurate data acquisition in industrial environments. Part of the Modicon X80 series, this module supports four analog input channels, each offering flexibility in signal processing. With high-speed conversion and excellent isolation, it ensures reliable data capture for various applications.

Key Features and Benefits

Four analog input channels provide extensive signal acquisition flexibility.
Fast conversion times allow real-time data processing, enhancing system responsiveness.
High isolation between channels prevents interference, ensuring precise measurements.
Wide range of input types, including current and voltage signals, ensures seamless integration into diverse systems.
Internal digital filtering improves signal accuracy and reduces noise.

Technical Specifications

Parameter	Details
Product Type	Analog input module
Brand	Schneider Electric
Series	Modicon X80
Number of Analog Inputs	4
Electrical Connection	20-way, 1 connector
Isolation Between Channels	Isolated
Input Types	Current (±20 mA), Current (0…20 mA), Current (4…20 mA), Voltage (±10 V), Voltage (±5 V), Voltage (0…10 V), Voltage (0…5 V), Voltage (1…5 V)
Analog/Digital Conversion	24 bits
Analog Input Resolution	16 bits
Permitted Overload on Inputs	±30V, ±10V, ±30V, ±5V, ±30V, 0…10V, ±30V, 0…5V, ±30V, 1…5V
Input Impedance	10 MΩ (Voltage mode), 250 Ω (Current mode, with internal protective resistor)
Internal Conversion Resistor Precision	0.1% ±15 ppm/°C
Filter Type	First-order digital filtering
Fast Read Cycle Time	1 ms + 1 ms per channel
Nominal Read Cycle Time	5 ms for 4 channels

Application Areas

The Schneider Electric BMXAMI0410 is perfect for systems requiring high-speed, accurate analog input. Its fast read cycle times and high isolation make it ideal for use in process control, machine monitoring, and automation applications. This module excels in environments where both speed and reliability are essential. Consequently, industries like manufacturing, robotics, and energy management will find the BMXAMI0410 to be a valuable component for their systems.
