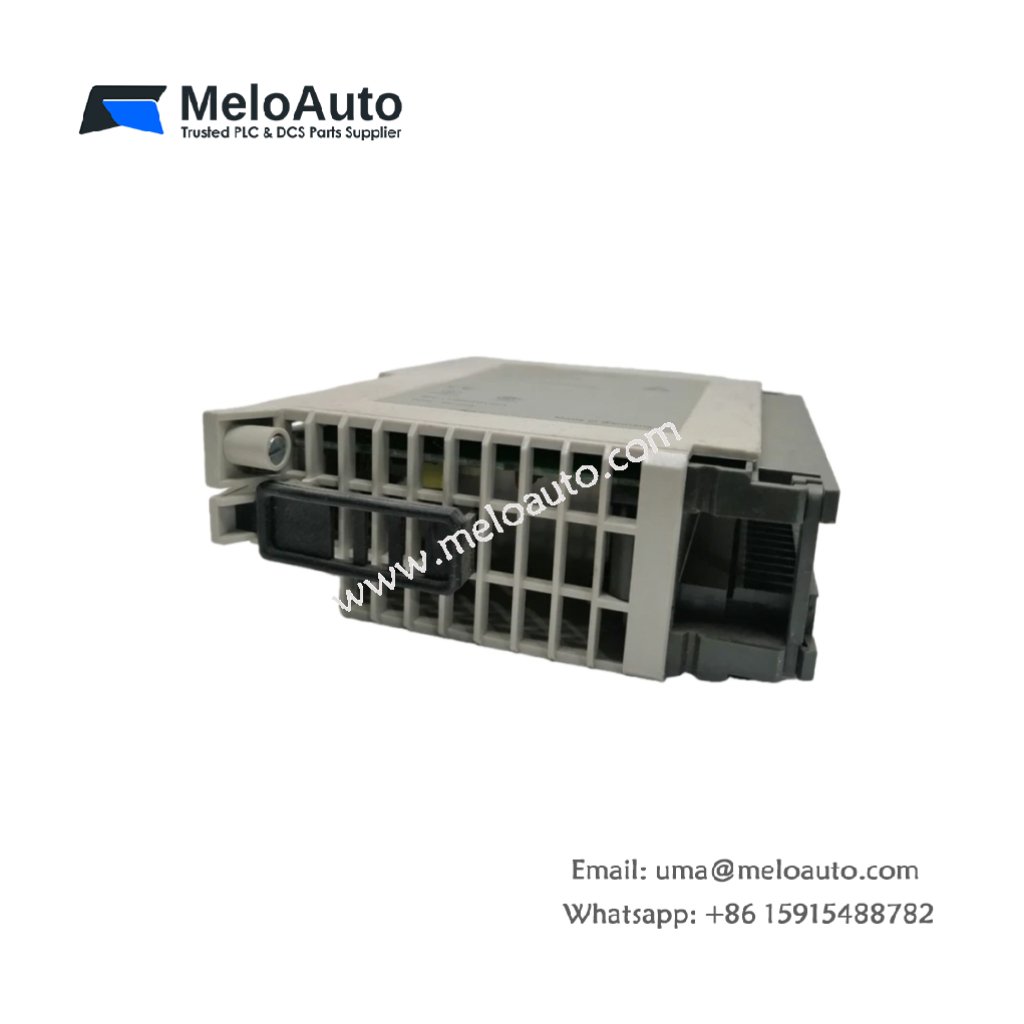

Schneider Electric ASBDNP255 I/O Module

The Schneider Electric ASBDNP255 is a high-performance I/O module in the TSX COMPACT series, designed to provide reliable connectivity and efficient operation in various industrial environments. With a rated voltage of 24 VDC and a current capacity of up to 2 A, this module ensures smooth communication in control systems. It is built to withstand a range of environmental factors, thanks to its robust construction and protection features.

Key Features of the Schneider Electric ASBDNP255 I/O Module

Rated Voltage: Operating at a steady 24 VDC, the module easily integrates into most industrial control systems.
Current Capacity: It handles a maximum current of 2 A, ensuring robust performance for demanding applications.
Environmental Protection: Featuring an IP20 protection class and a NEMA 1 enclosure rating, this module offers superior reliability in standard industrial conditions.
Temperature Range: The ASBDNP255 performs well across a temperature range from 0°C to 40°C, making it versatile for different environments.
Humidity Tolerance: It operates reliably in areas with up to 80% humidity, making it suitable for a wide range of conditions.

Technical Specifications

Specification	Details
Manufacturer	Schneider Electric
Product Type	I/O Module
Product Line	TSX COMPACT
Part Number	ASBDNP255
Weight	0.75 lbs (0.34 kg)
Rated Voltage	24 VDC
Current Rating	2 A
Cooling	Natural
Protection Class	IP20
Enclosure Rating	NEMA 1
Maximum Ambient Temperature	40°C
Minimum Ambient Temperature	0°C
Maximum Operating Humidity	80% (non-condensing)
Maximum Storage Humidity	80% (non-condensing)

Product Description

The Schneider Electric ASBDNP255 I/O module supports efficient and stable communication in industrial control systems. It operates with a steady 24 VDC and can handle up to 2 A of current. Its IP20 protection class and NEMA 1 enclosure rating make it ideal for use in standard industrial environments.

Moreover, the module works effectively in temperatures ranging from 0°C to 40°C and can operate in conditions with up to 80% humidity. Its natural cooling mechanism ensures optimal performance even in challenging conditions. Thanks to these features, the ASBDNP255 is a reliable choice for many industrial applications.

Applications

You can use the Schneider Electric ASBDNP255 I/O module in:

Industrial automation systems that require high reliability for input and output connections.
Control systems that demand stable performance in diverse temperature and humidity conditions.
Standard environments where the module’s current capacity and protection features are essential for robust performance.
