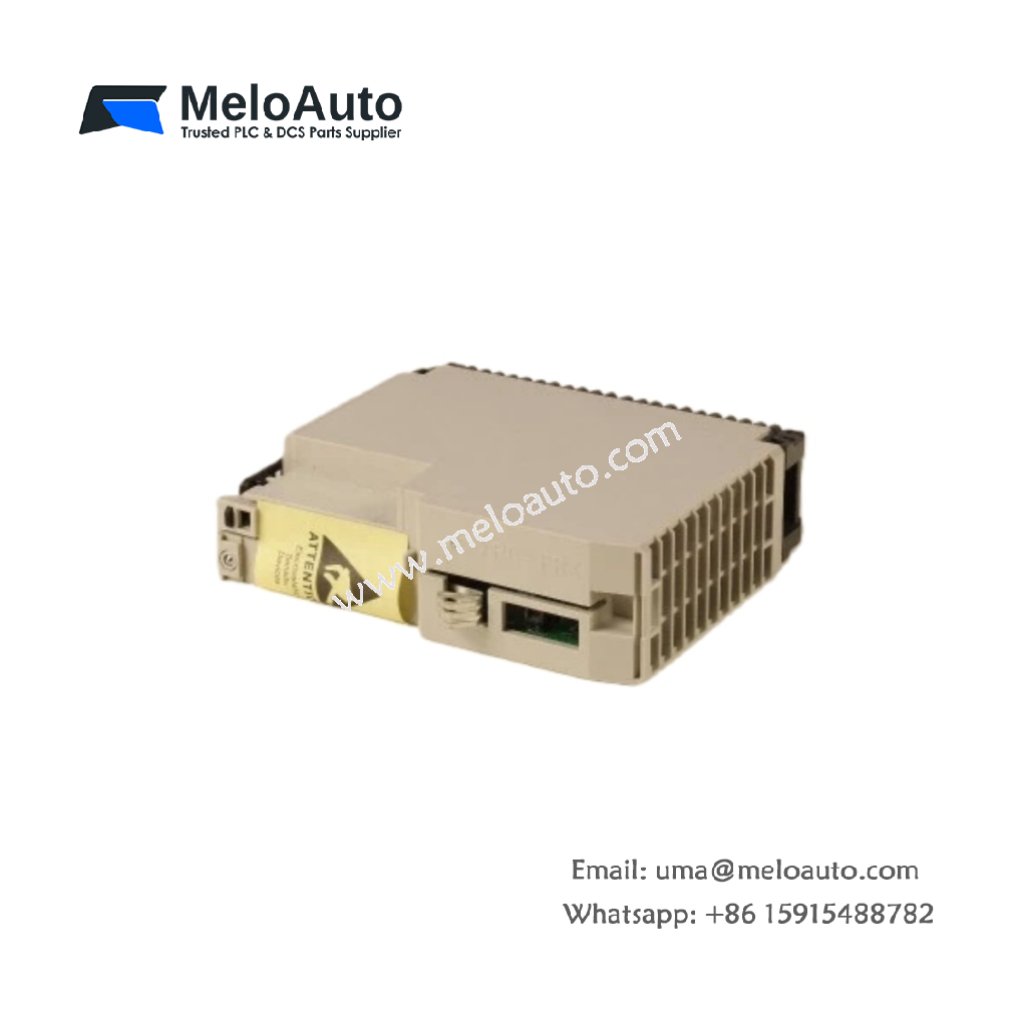

Schneider Electric ASBADU257C EtherCAT Coupler Module

Product Overview

The ASBADU257C is an advanced EtherCAT Coupler Module from Schneider Electric, designed to provide seamless communication in industrial automation systems. This high-performance module connects EtherCAT networks with other devices, enabling fast and reliable data exchange. It plays a crucial role in improving system efficiency and reducing network downtime.

Key Features and Specifications

• Manufacturer: Schneider Electric
• Product Type: EtherCAT Coupler Module
• Part Number: ASBADU257C
• Interface: EtherCAT
• Supported Network Topology: Line, Tree, and Star
• Data Transfer Rate: 100 Mbps
• Operating Voltage: 24 VDC
• Dimensions: 130 mm x 100 mm x 55 mm
• Weight: 0.45 kg
• Operating Temperature Range: -10°C to +60°C
• Storage Temperature Range: -40°C to +85°C
• Mounting Type: DIN Rail

Detailed Description

The ASBADU257C EtherCAT coupler module acts as a bridge, ensuring smooth communication between an EtherCAT network and other devices. It supports line, tree, and star topologies, giving you flexibility in network design. The module supports high-speed communication with a data transfer rate of 100 Mbps, ensuring quick and reliable data exchange in your system.

Operating at a 24 VDC input voltage, the ASBADU257C integrates easily with existing systems. With its compact size of 130 mm x 100 mm x 55 mm and a weight of just 0.45 kg, the module is easy to install in control cabinets using a DIN rail mounting system.

This EtherCAT module functions well in diverse environments, thanks to its operating temperature range of -10°C to +60°C. It also has a wide storage temperature range from -40°C to +85°C, making it suitable for use in harsh industrial conditions.

The ASBADU257C EtherCAT coupler module is built to meet the demands of modern industrial networks, offering both durability and excellent performance.

Applications

The ASBADU257C is ideal for a wide range of industrial automation applications, including:

• Machine Control Systems: Connects various devices, ensuring fast and efficient data exchange between controllers, sensors, and actuators.
• Production Lines: Facilitates real-time communication for seamless control and monitoring of manufacturing equipment.
• Building Automation: Used in applications like HVAC systems, lighting control, and security, enabling reliable communication across devices.

By integrating the ASBADU257C module, you can enhance system performance, reduce downtime, and ensure reliable data transfer in industrial automation.
