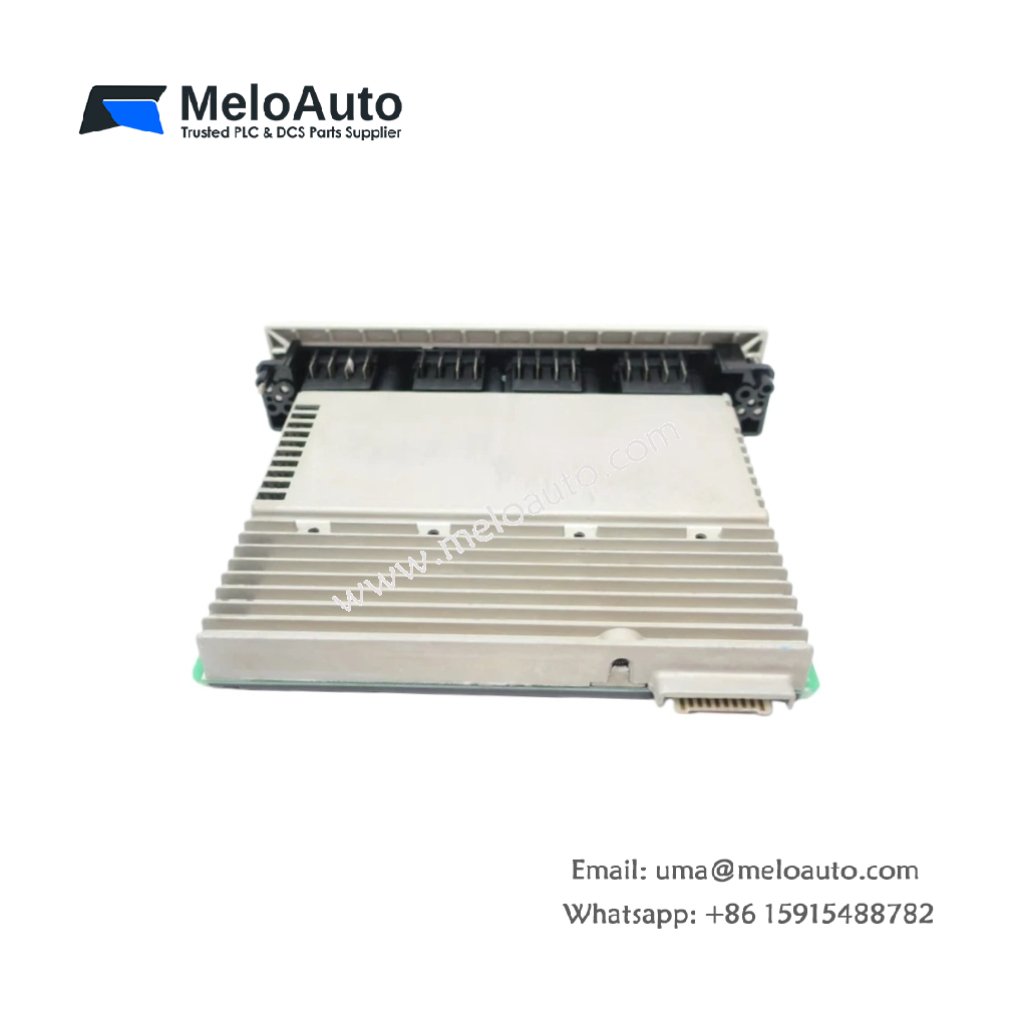

Schneider Electric ASB821108 Input Module

Product Overview

The ASB821108 is an efficient input module from Schneider Electric designed for industrial automation systems. Operating within a 10-60V DC input range, this module supports up to 8 input points, making it highly adaptable for various applications. Its compact design and reliable performance make it an ideal choice for control systems.

Key Features and Specifications

• Manufacturer: Schneider Electric
• Product Type: Input Module
• Part Number: ASB821108
• Input Voltage Range: 10-60 V DC
• Number of Inputs: 8 Points
• Module Type: Standard
• Dimensions: 100 mm x 80 mm x 60 mm
• Weight: 0.45 kg
• Power Dissipation: 2 W
• Mounting Type: DIN Rail
• Ambient Temperature Range: -20°C to +70°C
• Current Consumption: 50 mA at 24 V DC
• Protection Rating: IP20
• Compliance Standards: UL 508, CUL, CE

Detailed Description

The Schneider Electric ASB821108 is built to seamlessly integrate into a wide range of systems. With an input voltage range of 10-60V DC, it accommodates a variety of devices. Additionally, the module supports 8 input points, offering flexibility in system design.

One of the key advantages of the ASB821108 is its energy efficiency, consuming only 50 mA at 24 V DC. This makes it an ideal solution for applications where power consumption is critical. Moreover, it operates within a wide ambient temperature range from -20°C to +70°C, ensuring reliable performance in varying environmental conditions.

The module is also highly durable, with an IP20 protection rating that protects it from dust and physical contact. Its DIN rail mounting feature further simplifies installation and system integration. To ensure safety and quality, the ASB821108 complies with UL 508, CUL, and CE standards.

Applications

The ASB821108 input module excels in:

• Industrial Automation: Easily integrates sensors, switches, and control devices into larger systems.
• Building Automation: Suitable for monitoring inputs like temperature, humidity, or environmental conditions.
• Process Control: Efficiently collects data from field devices and transmits it to central control systems.

By choosing the ASB821108, users can benefit from a flexible, reliable, and energy-efficient input solution.
