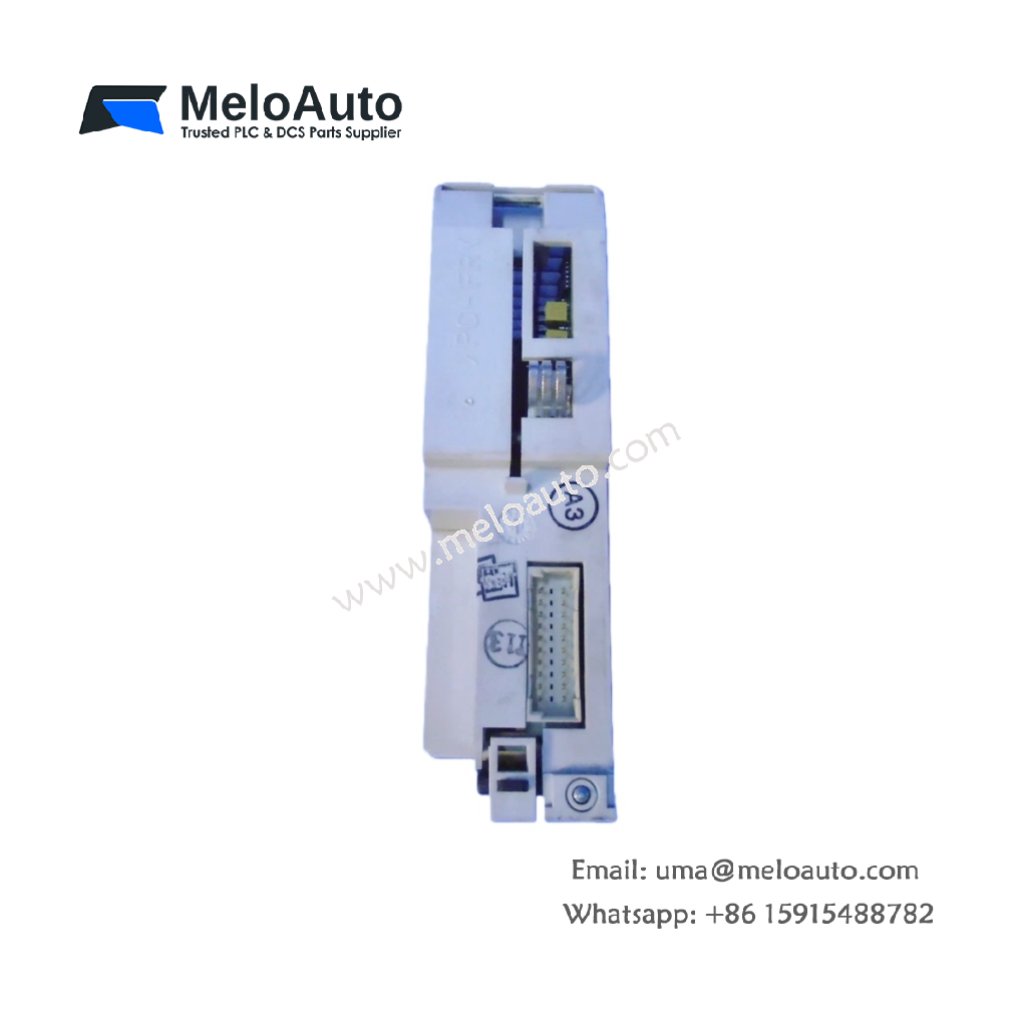

Schneider Electric AS-BADU-256C Analog Input Module

The Schneider Electric AS-BADU-256C is an advanced analog input module, specially designed for efficient signal processing in industrial applications. With four 2-pole input channels, it supports both ±10V and ±20mA input signal ranges, offering exceptional versatility.

Key Specifications & Features:

Product Description:

The Schneider Electric AS-BADU-256C provides efficient signal processing and high precision, making it a vital component of the Modicon product line. The module’s four 2-pole input channels support a wide range of signal inputs, including ±10V and ±20mA. This flexibility makes it suitable for various industrial environments.

With 11-bit resolution plus sign, the AS-BADU-256C ensures reliable and accurate data measurement. Furthermore, the electrically isolated inputs protect the system from noise, ensuring signal integrity even in challenging environments.

In terms of performance, the AS-BADU-256C boasts a conversion time of 10 milliseconds per channel, offering fast data processing for time-sensitive applications. Thanks to its protective coating, it remains durable against environmental factors like moisture and dust, which enhances the longevity of the module.

The AS-BADU-256C is fully compatible with Modicon TSX Compact systems, ensuring seamless integration into existing infrastructure. It has a compact size, with 140 mm height, 40 mm width, and 110 mm depth, weighing only 2.49 kg. This design makes it easy to install and integrate into various setups.
