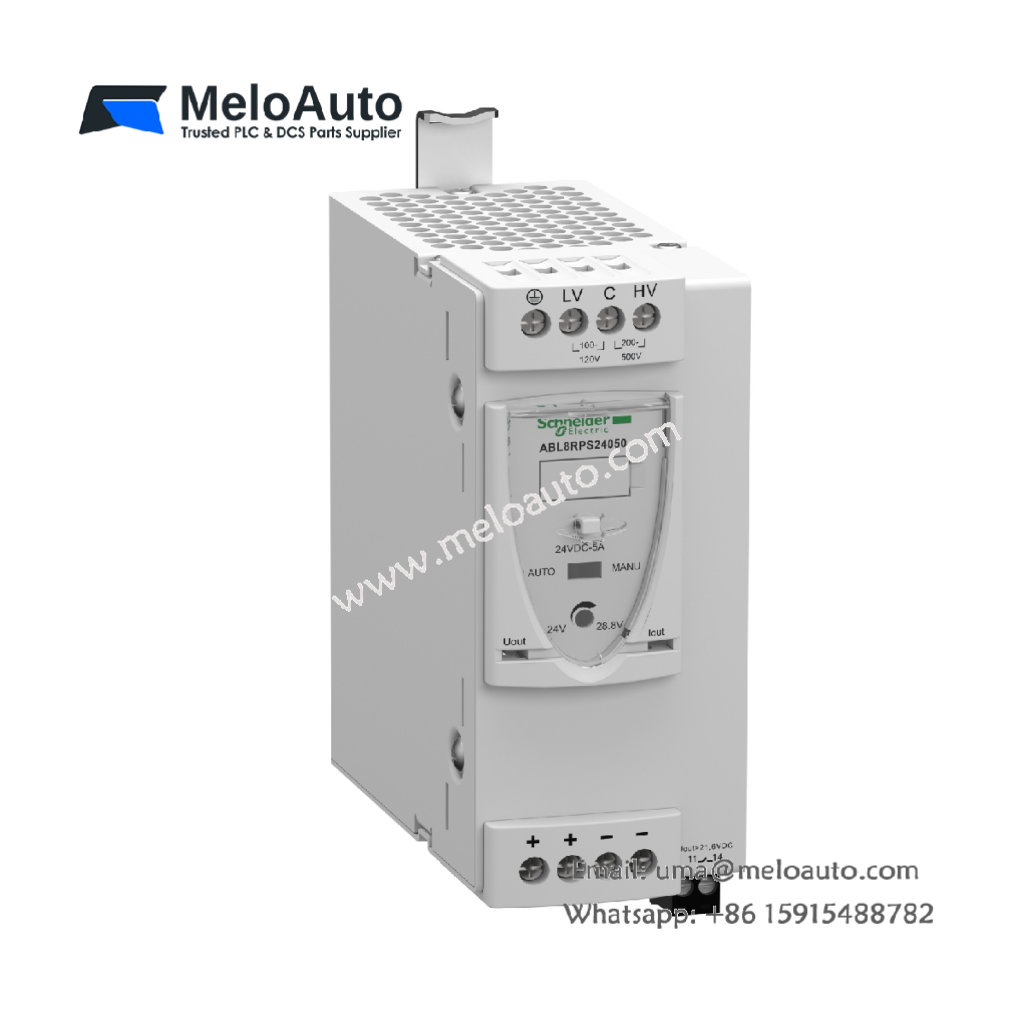

Schneider Electric ABL8RPS24050 | 24V DC, 5A Universal Power Supply

The Schneider Electric ABL8RPS24050 is a universal regulated switch-mode power supply designed for industrial applications, offering a 24V DC output with a 5A current rating. It supports single-phase and two-phase input voltages ranging from 100V to 500V AC, ensuring reliable operation in diverse electrical environments. With built-in overload, short-circuit, and overvoltage protection, this power supply provides high efficiency and enhanced safety, making it ideal for automation and control systems.

General Information

Product Range: Phaseo
Product Type: Universal Power Supply
Input Voltage: 100-120V AC (Single Phase) / 200-500V AC (Two Phase)
Output Voltage: 24V DC (Adjustable 24V – 28.8V)
Output Current: 5A
Power Rating: 120W

Electrical Performance

Efficiency: 87%
Power Factor: 0.51 at 240V AC, 0.59 at 120V AC
Inrush Current: 30A
Power Dissipation: 15.5W
Output Coupling: Parallel or Series
Dielectric Strength:
- 3500V between input and ground
- 4000V between input and output
- 500V between output and ground

Protection & Safety

Overload Protection: Manual or Automatic Reset
Overvoltage Protection: 30-32V, Manual Reset
Short-Circuit Protection: Manual or Automatic Reset
Undervoltage Protection: Trips if U < 21.6V
Thermal Protection: Automatic Reset
Anti-Harmonic Filter: Reduces low-frequency harmonic currents

Mechanical & Installation

Mounting Support: 35mm DIN Rail (Symmetrical 35x15mm / 35×7.5mm)
Operating Position: Vertical
Dimensions: 56mm (W) × 143mm (H) × 125mm (D)
Net Weight: 0.7kg (1.5 lbs)
Connections: Screw Terminals

Environmental Conditions

Operating Temperature: -25°C to 50°C (No Derating), 50°C to 60°C (Derating Applied)
Storage Temperature: -40°C to 85°C
Operating Altitude: Up to 2000m (6561 ft)
Humidity: 0-95% (Non-Condensing)
IP Rating: IP20 (IEC 60529)

Certifications & Compliance

Standards: IEC 60950-1, EN/IEC 61204-3, UL 508, CSA C22.2 No 60950-1
Certifications: CE, UL, CSA, EAC, KC, RCM
EMC Compliance: IEC 61000-6-1, IEC 61000-6-3, IEC 61000-6-4, EN 55024, IEC 61000-4-11
