Schneider Electric 140EHC10500 High-Speed Counter Module: Technical Specifications & Features

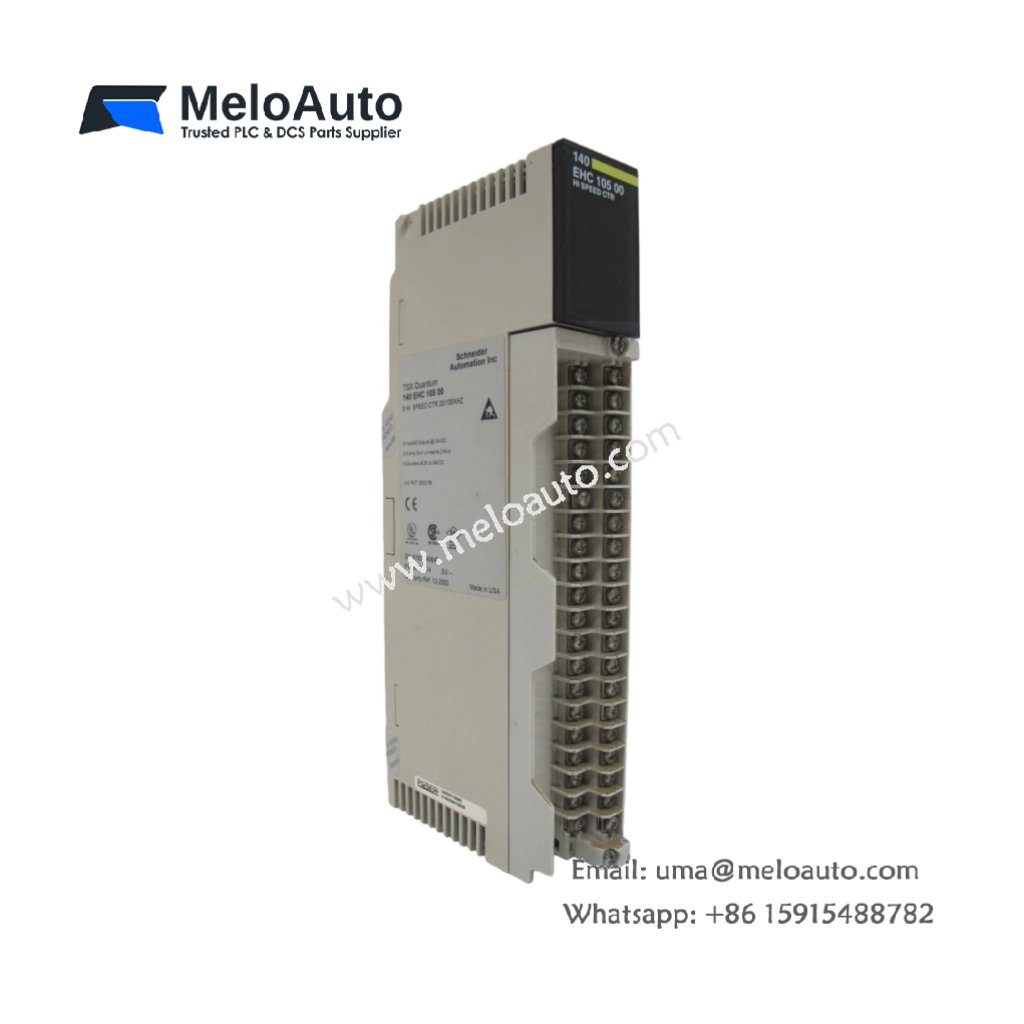

The 140EHC10500 from Schneider Electric is a high-performance counter module, engineered for precision in industrial automation systems. As part of the Modicon Quantum series, this module offers five dedicated channels and provides eight inputs and outputs, ensuring fast and accurate processing of control signals.

Key Features of 140EHC10500

• Manufacturer: Schneider Electric
• Product Line: Modicon Quantum
• Part Number: 140EHC10500
• UPC: 785901324676
• Type: High-Speed Counter Module
• Channels: 5 Channels
• Inputs: 8 Inputs
• Outputs: 8 Outputs
• Weight: 0.88 lbs (0.40 kg)
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Maximum Operating Humidity: 95% (non-condensing)
• Maximum Storage Humidity: 95% (non-condensing)
• Output Short-Circuit Protection: Internal Protection
• Rack Types: Local, Distributed, or Remote
• Maximum Operating Altitude: 5000 m above sea level
• Maximum Storage Altitude: 5000 m above sea level
• Operating Environment: Clean indoor environment (free of corrosive chemicals)

Detailed Technical Specifications

Description of 140EHC10500 High-Speed Counter Module

The 140EHC10500 from Schneider Electric is specifically designed to meet the demands of high-speed control applications. It provides five channels, each with eight inputs and outputs. This allows the module to effectively manage and process data, ensuring accurate control and high operational efficiency.

The 140EHC10500 can operate in a wide temperature range from 0°C to 60°C (32°F to 140°F). It also works well under extreme storage conditions, withstanding temperatures as low as -40°C and as high as 85°C (-40°F to 185°F). Therefore, it remains functional even in harsh industrial environments. Moreover, the module tolerates humidity levels up to 95%, both during operation and while in storage. This feature makes the 140EHC10500 an excellent choice for environments prone to moisture or fluctuating humidity levels.

To ensure durability, Schneider Electric equipped the 140EHC10500 with internal short-circuit protection. This feature prevents damage during unexpected electrical issues, contributing to long-term reliability. The module is also adaptable to various system architectures, supporting local, distributed, or remote rack configurations. This flexibility simplifies integration into existing automation systems.

The 140EHC10500 operates at altitudes of up to 5000 meters above sea level, making it suitable for a wide range of geographical locations. Its compact design (weighing only 0.88 lbs or 0.40 kg) further enhances its usability and ease of installation. Additionally, it is designed for use in clean indoor environments, free from corrosive chemicals, ensuring optimal performance in controlled industrial spaces.
