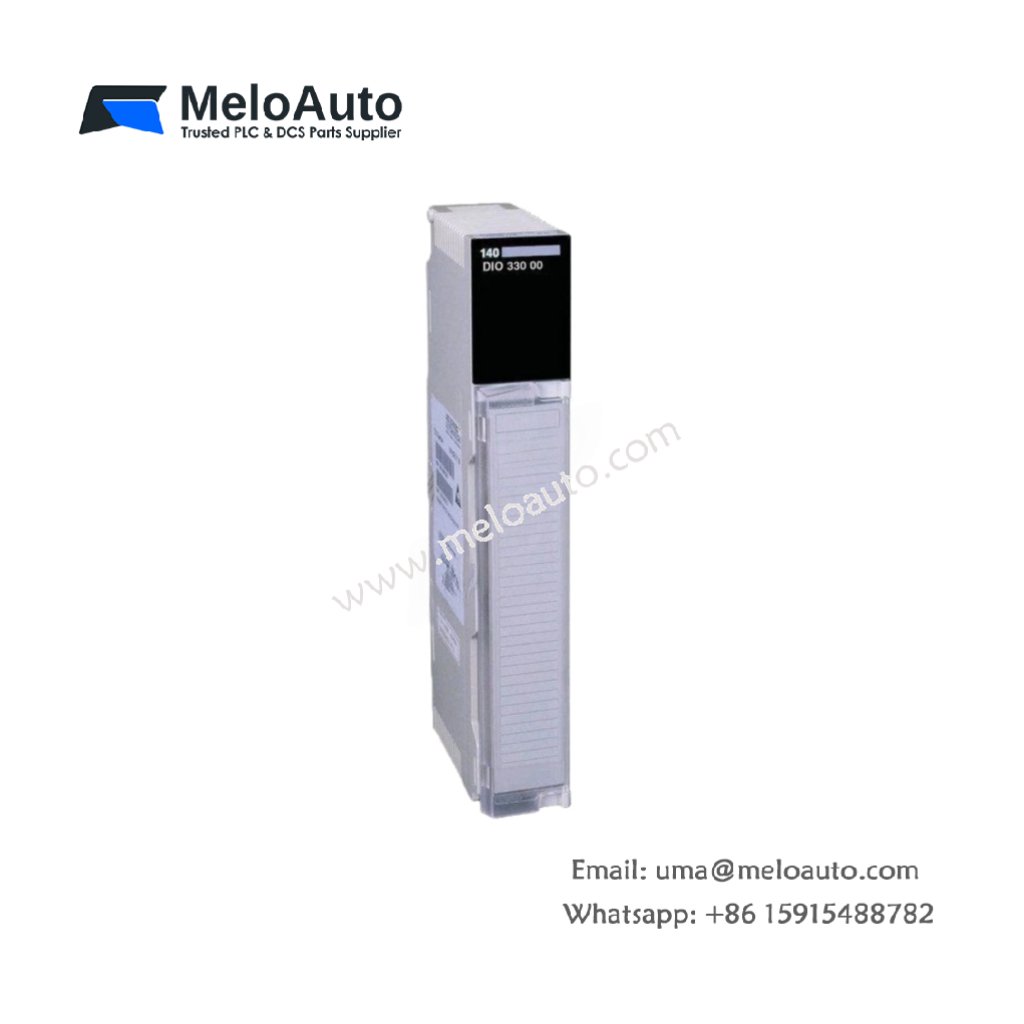

Schneider Electric 140DIO33000C Discrete Output Module

Product Overview

The 140DIO33000C from Schneider Electric is an intrinsically safe discrete output module within the Modicon series, designed for use in hazardous locations. This module guarantees reliable performance in challenging industrial environments with a variety of safety features and operational capabilities.

Key Features and Specifications

Manufacturer: Schneider Electric
Product Type: Intrinsically Safe Discrete Output Module
Product Line: Modicon
Part Number: 140DIO33000C
Weight: 32.00 lbs (14.51 kg)
Operating Altitude: Up to 5000 meters
Maximum Altitude: 1000 meters above sea level
Operating Temperature: 0°C to 60°C
Storage Temperature: -40°C to 85°C
Output Type: Open Collector
Output Voltage: 24 V
Maximum Load Current: 360 mA per module, 45 mA per point
Off-State Leakage Current: 0.4 mA per point
ESD Resistance: 4 kV contact, 8 kV air
EMF Resistance: 10 V/m (80-2000 MHz)
Product Destination: Zones 20, 21, 22
Humidity Resistance: 95% (non-condensing)

Detailed Description

The 140DIO33000C is engineered for use in hazardous environments, specifically rated for Zones 20, 21, and 22. It excels in areas requiring reliable discrete output control, making it ideal for industrial applications with intrinsic safety needs.

With a robust construction, the module is capable of operating at altitudes up to 5000 meters and is resistant to extreme temperatures ranging from -40°C to 85°C in storage, and from 0°C to 60°C during operation. This makes the 140DIO33000C a versatile solution in demanding environments, including high-altitude locations or those exposed to temperature fluctuations.

The module provides open collector output with a stable 24 V output voltage, ensuring consistent performance across a variety of control systems. Each individual output can handle a maximum current of 45 mA, while the entire module can support up to 360 mA. With an exceptionally low off-state leakage current of just 0.4 mA per point, this module ensures optimal energy efficiency.

Further enhancing its durability, the 140DIO33000C is equipped with superior ESD resistance, offering 4 kV contact and 8 kV air protection to safeguard against electrical discharges. The module also meets EMF resistance standards, withstanding 10 V/m across frequencies from 80 to 2000 MHz, making it suitable for industrial environments where electromagnetic interference is a concern.

Technical Specifications

Parameter	Specification
Manufacturer	Schneider Electric
Product Type	Intrinsically Safe Discrete Output Module
Part Number	140DIO33000C
Weight	32.00 lbs (14.51 kg)
Operating Altitude	≤ 5000 m
Maximum Altitude	1000 meters above sea level
Operating Temperature	0°C to 60°C
Storage Temperature	-40°C to 85°C
Output Type	Open Collector
Output Voltage	24 V
Maximum Load Current	360 mA per module, 45 mA per point
Off-State Leakage Current	0.4 mA per point
ESD Resistance	4 kV contact, 8 kV air
EMF Resistance	10 V/m (80–2000 MHz)
Product Destination	Zones 20, 21, 22
Humidity Resistance	95% (non-condensing)

Applications

The 140DIO33000C is specifically designed for operations in hazardous locations, such as oil rigs, chemical plants, and other areas requiring intrinsically safe equipment. Its rugged design makes it a reliable solution for both indoor and outdoor industrial settings with high operational safety standards.
