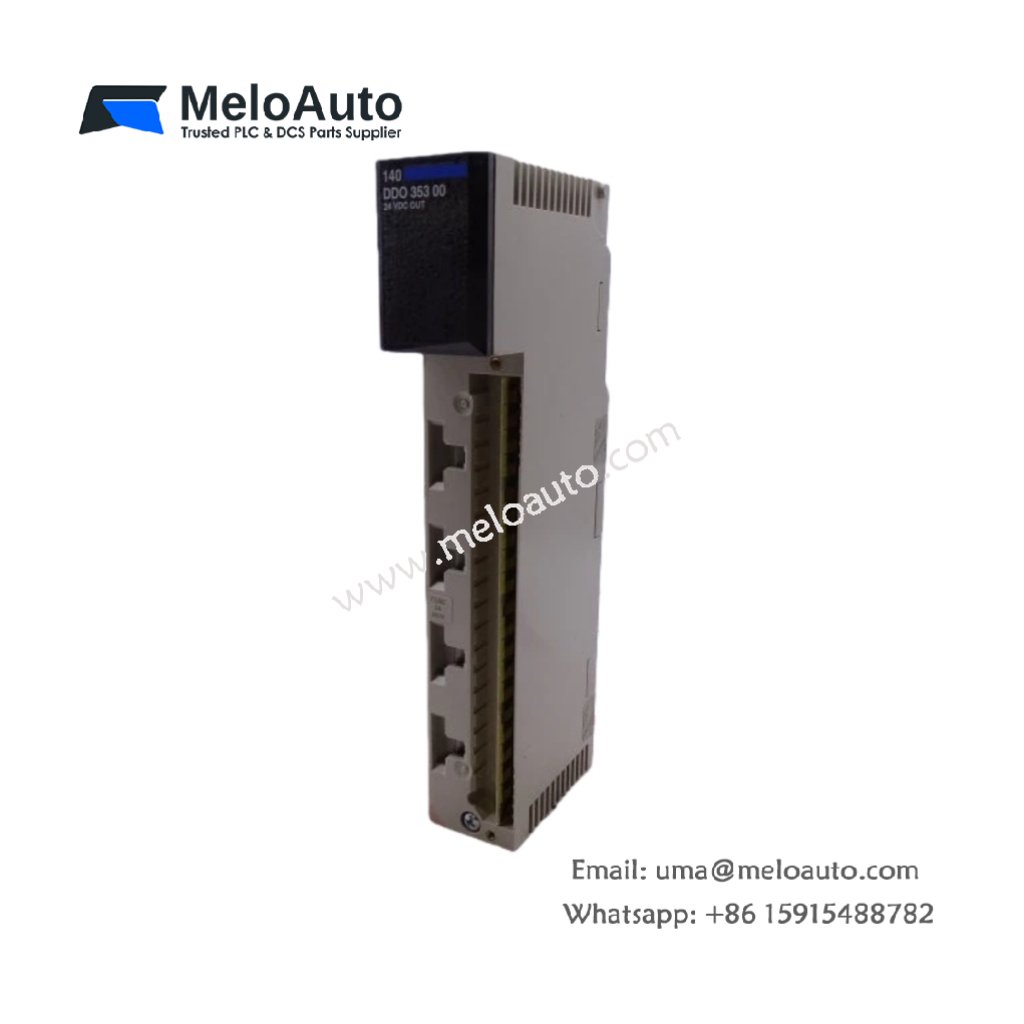

Schneider Electric 140DDO35310C Discrete Output Module

The Schneider Electric 140DDO35310C discrete output module is designed for the Modicon Quantum automation platform, offering efficient performance and reliable control. This module provides 32 outputs, arranged in 4 groups of 8. With a negative logic (sink) configuration, the 140DDO35310C ensures accurate and dependable operation in various industrial settings. Moreover, it features a wide voltage range and a low voltage drop, making it an ideal choice for demanding automation applications.

Key Features of the Schneider Electric 140DDO35310C Discrete Output Module

32 Discrete Output Channels: The module supports 32 outputs divided into 4 groups of 8 channels. This configuration enhances flexibility and scalability in control systems.
Negative Logic (Sink): Each output utilizes negative logic, providing precise control for industrial applications requiring efficient current sinking.
Wide Voltage Range: The 24 V DC nominal voltage range ensures compatibility with a variety of devices. Furthermore, the module supports output voltage limits from 19.2 V to 30 V, and can even handle a pulse up to 50 V for a brief period of 1 second.
Low Voltage Drop: The < 0.4 V drop at 0.5 A ensures improved efficiency and minimizes power loss.
Compact Design: The module’s standard format allows easy integration into existing systems with minimal space requirements.

Technical Specifications

Specification	Details
Manufacturer	Schneider Electric
Product Type	Discrete Output Module
Product Line	Modicon Quantum
Part Number	140DDO35310C
Discrete Output Channels	32
Groups of Channels	4 groups of 8 channels
Discrete Output Logic	Negative logic (sink)
Addressing Requirement	2 output words
Discrete Output Voltage	24 V DC
Output Voltage Limits	19.2 V to 30 V
Maximum Output Voltage (Pulse)	50 V for 1 second decaying pulse
Maximum Voltage Drop	< 0.4 V at 0.5 A
Bus Current Requirement	330 mA
Module Format	Standard

Product Description

The Schneider Electric 140DDO35310C is a 24 V DC discrete output module, tailored for the Modicon Quantum automation platform. This module features 32 outputs divided into four groups, each with eight channels. It operates with negative logic (sink) and offers a wide voltage range. With output voltage limits ranging from 19.2 V to 30 V, it ensures reliable performance in demanding environments. Additionally, it can briefly withstand a 50 V pulse for 1 second.

Moreover, the 140DDO35310C is designed for efficiency with a <0.4 V voltage drop at 0.5 A. Its low power consumption, combined with a 330 mA bus current requirement, enhances overall system reliability. The standard module format makes it easy to integrate into existing industrial setups.

Applications

The Schneider Electric 140DDO35310C is perfect for:

Industrial automation requiring precise control over DC outputs.
Modicon Quantum platforms, ensuring seamless integration with other devices.
Control systems that benefit from wide voltage ranges and minimal power loss.
