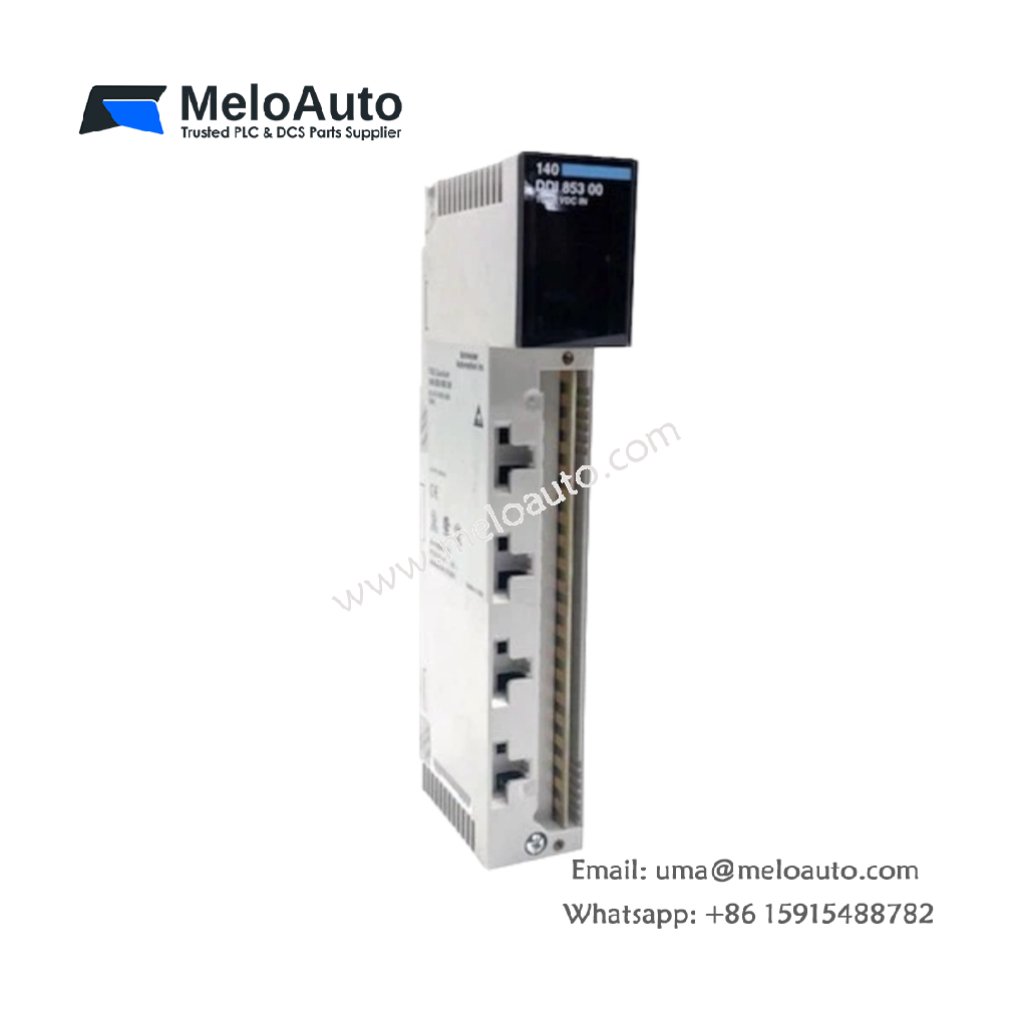

Schneider Electric 140DDI85300 Discrete Input Module

The 140DDI85300 from Schneider Electric is a reliable discrete input module within the Modicon Quantum series. It supports up to 32 inputs and operates efficiently within a voltage range of 10 to 60 VDC. This module’s fast 4 ms response time makes it ideal for systems that require rapid data processing.

Key Features of 140DDI85300

Manufacturer: Schneider Electric
Product Line: Modicon Quantum
Part Number: 140DDI85300
UPC: 785901794561
Product Type: Input Module
Input Type: Discrete
Number of Inputs: 32
Number of Channel Groups: 4
Input Voltage Range: 10 to 60 VDC
Response Time: 4 ms
Local Signaling: Yes
Bus Current Requirement: 300 mA
Module Format: Standard
Altitude: 5000 m max.
Environment: No corrosive gases
Minimum Operating Temperature: 0°C
Maximum Operating Temperature: 60°C
Weight: 0.69 lbs (0.31 kg)

Detailed Technical Specifications

Specification	Details
Manufacturer	Schneider Electric
Product Line	Modicon Quantum
Part Number	140DDI85300
UPC	785901794561
Product Type	Input Module
Input Type	Discrete
Number of Inputs	32
Number of Channel Groups	4
Input Voltage Range	10 to 60 VDC
Response Time	4 ms
Local Signaling	Yes
Bus Current Requirement	300 mA
Module Format	Standard
Maximum Altitude	5000 m
Environment	No corrosive gases
Operating Temperature Range	0°C to 60°C
Weight	0.69 lbs (0.31 kg)

Description of 140DDI85300 Discrete Input Module

The 140DDI85300 input module from Schneider Electric‘s Modicon Quantum series offers powerful performance and flexibility. It supports up to 32 discrete inputs, making it suitable for numerous industrial automation tasks. The module operates within a voltage range of 10 to 60 VDC, providing broad compatibility for various electrical systems.

With a rapid 4 ms response time, the 140DDI85300 ensures quick data processing, which is critical for high-speed control systems. In addition, it divides its inputs into 4 channel groups, providing flexibility for different system configurations. This allows the module to adapt to various requirements without compromising performance.

One of the standout features of the 140DDI85300 is its local signaling capability. This function offers immediate feedback, allowing operators to monitor and respond quickly to system changes. Furthermore, the module has a low bus current requirement of 300 mA, making it an energy-efficient choice.

Weighing just 0.69 lbs (0.31 kg), the 140DDI85300 is compact and easy to install, even in space-constrained environments. It is designed to operate in clean environments, free from corrosive gases, ensuring long-term reliability. Additionally, the module can function at altitudes up to 5000 meters, making it suitable for diverse geographic locations.

The 140DDI85300 is also built to operate within an ambient temperature range of 0°C to 60°C, ensuring that it performs well in a variety of industrial settings. With these features, the 140DDI85300 delivers exceptional reliability and performance for your automation systems.
