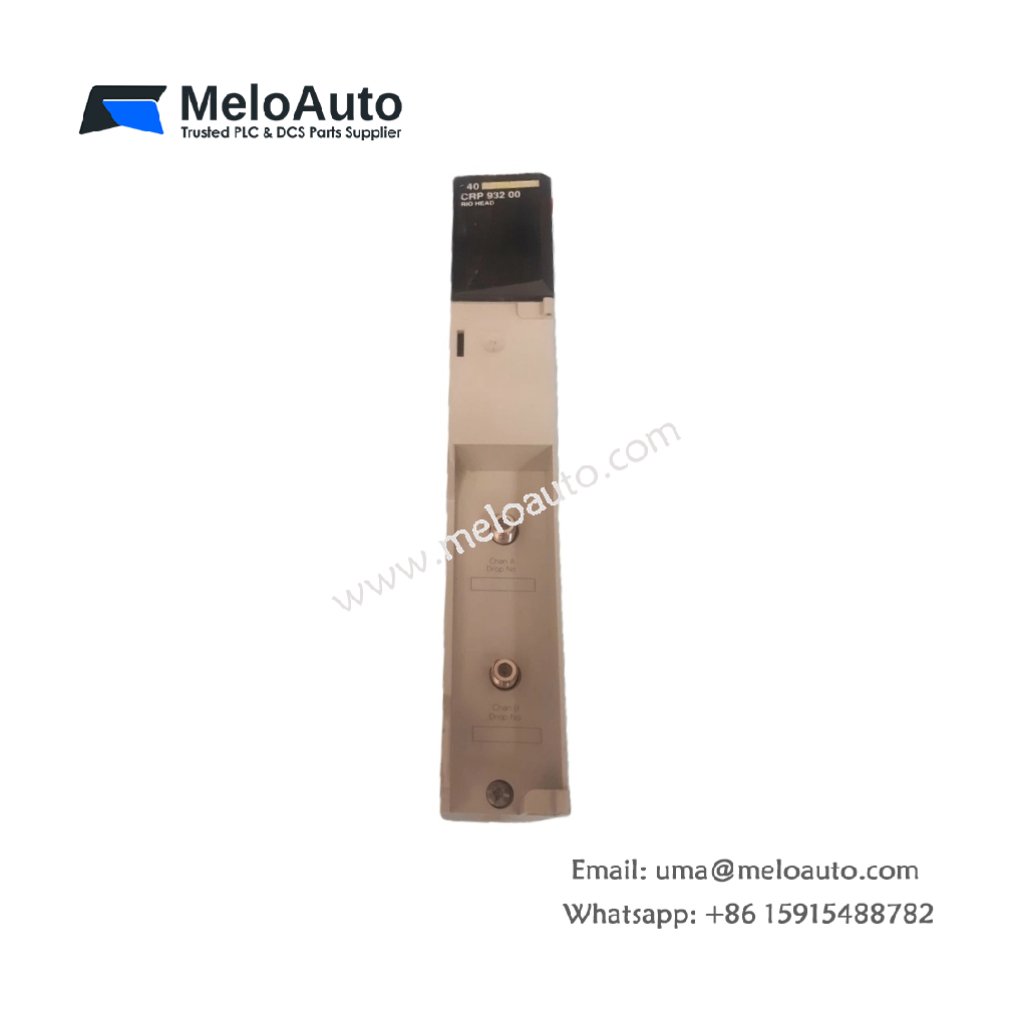

Schneider Electric 140CRP93200C RIO Head-End Adapter Module

Product Overview

The 140CRP93200C from Schneider Electric is a high-performance RIO head-end adapter module, specifically designed for the Modicon Quantum series. This module supports up to 31 drops per network, making it ideal for large-scale industrial automation systems. It handles 64 inputs and 64 outputs per drop, offering flexibility for a variety of applications.

Key Features and Specifications

• Manufacturer: Schneider Electric
• Product Type: RIO Head-End Adapter Module
• Part Number: 140CRP93200C
• Product Line: Modicon Quantum
• Maximum Drops/Network: 31
• I/O Words/Drop: 64 I/64 O
• Cable Type: 75 Ohm Coaxial
• Transmission Rate: 1544 Mbit/s
• Dynamic Range: 35 dB
• Isolation Voltage: 500 V DC
• Power Dissipation: 3 W
• Marking: CE
• Ambient Temperature Range: 0 to 60°C
• Standards Compliance: UL 508, CUL, CSA
• Protective Treatment: Conformal Coating
• Weight: 0.60 kg (1.31 lbs)
• Format: Standard

Detailed Description

The 140CRP93200C serves as a key component in Modicon Quantum systems, offering robust capabilities for efficient data communication. It supports up to 31 drops per network, ensuring scalability and flexibility in large automation systems. Each drop supports 64 I/64 O, allowing for a high number of inputs and outputs per connection.

Data transmission occurs through 75 Ohm coaxial cables, which help maintain signal integrity across the system. This module operates at an impressive transmission rate of 1544 Mbit/s, ensuring quick and efficient data transfer in real-time applications. The 35 dB dynamic range further enhances its ability to process signals effectively, even in environments with significant electrical noise.

The 140CRP93200C is designed to operate within a wide ambient temperature range of 0°C to 60°C, making it suitable for most industrial environments. With conformal coating for additional protection, it can withstand harsh conditions and environmental factors, extending its operational life.

Additionally, this module complies with various standards, including UL 508, CUL, and CSA, ensuring its reliability and safety in industrial applications. It also has an isolation voltage of 500 V DC, protecting connected devices from electrical surges.

Applications

The 140CRP93200C RIO head-end adapter module is ideal for:

• Industrial Automation: Facilitates large-scale connectivity for devices within the Modicon Quantum system.
• Real-time Data Processing: Supports high-speed communication for real-time control systems and applications.
• Flexible System Integration: With 31 drops per network and 64 I/64 O per drop, it’s ideal for versatile automation setups.

By integrating the 140CRP93200C, you can improve network scalability and system efficiency in your automation solutions.
