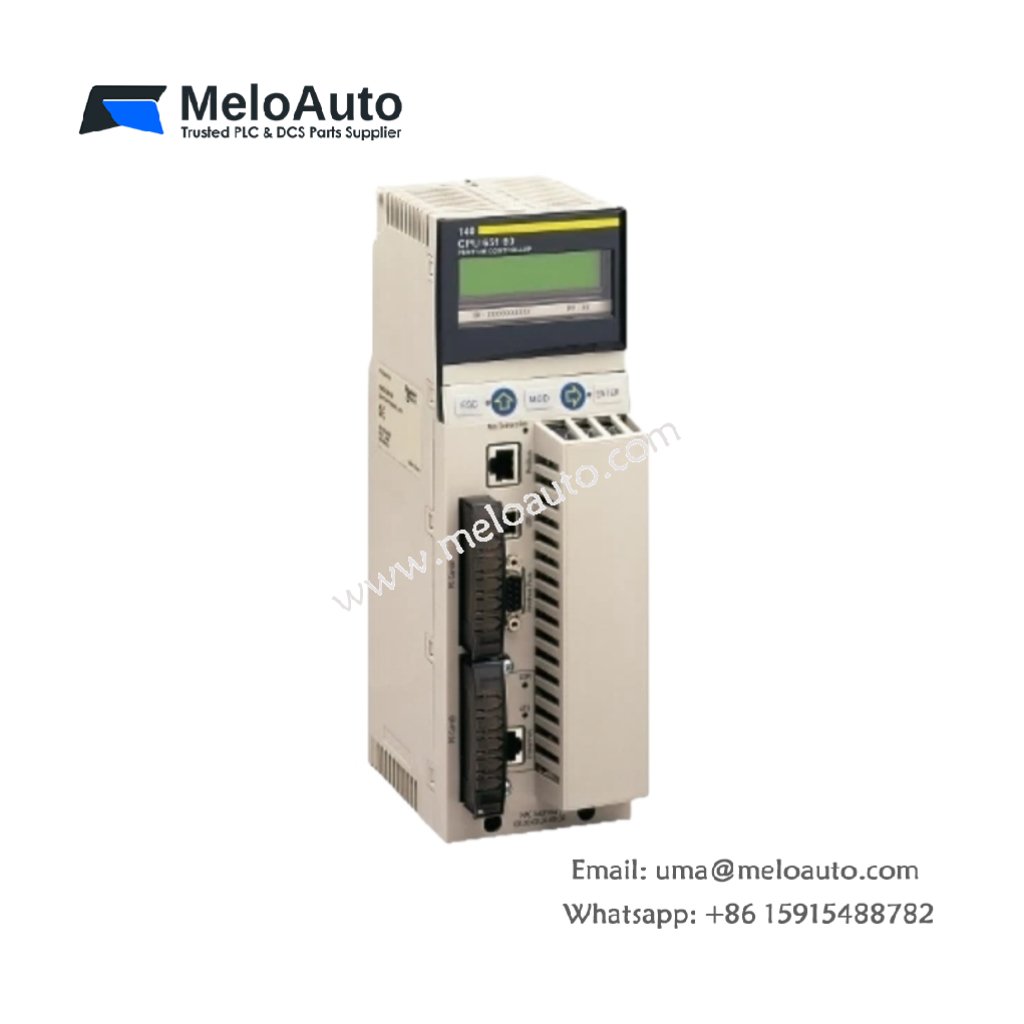

Schneider Electric 140CPU67060 – Unity Hot Standby Processor with Multimode Ethernet

The Schneider Electric 140CPU67060 is a high-performance Unity Hot Standby Processor from the Modicon Quantum series. Designed to handle demanding industrial control systems, it offers a 266 MHz clock frequency, robust multimode Ethernet support, and exceptional flexibility for large-scale applications. This processor is perfect for systems requiring high reliability, fault tolerance, and seamless communication across multiple networks.

Key Features of the 140CPU67060

• Manufacturer: Schneider Electric
• Product Line: Modicon Quantum
• Part Number: 140CPU67060
• Clock Frequency: 266 MHz
• Processor Type: Unity Hot Standby Processor
• Number of Slots: 6
• Number of Local Racks: 2
• Number of Distributed I/O Stations: 63
• Communication Ports: Ethernet, Modbus, Modbus Plus, Profibus DP, Sy/MMax
• USB Connections: 1
• Operating Temperature Range: 0°C to 60°C
• Storage Temperature Range: -40°C to 85°C
• Maximum Number of Connections: 8000 inputs, 8000 outputs
• Fault Tolerance: Hot Standby protocol
• Weight: 2.5 lbs (1.13 kg)

Technical Specifications for the 140CPU67060

Description

The 140CPU67060 from Schneider Electric is a high-performing Unity Hot Standby Processor designed for Modicon Quantum systems. Operating at 266 MHz, it ensures fast processing speeds for complex industrial control tasks. The 6 slots and 2 local racks enable flexibility and scalability, making this processor ideal for large-scale automation setups.

This processor supports multiple communication protocols, including Ethernet, Modbus, Modbus Plus, Profibus DP, and Sy/MMax, allowing seamless integration into diverse network environments. The USB connection adds convenience for local access, while multimode Ethernet support ensures reliable communication in both local and remote configurations.

For systems that demand high reliability, the 140CPU67060 features Hot Standby protocol. This capability ensures fault tolerance, making it suitable for mission-critical applications. With a maximum of 8000 inputs and 8000 outputs, it can handle large-scale data exchanges, crucial for complex industrial control systems.

Designed to withstand harsh environments, the processor operates within a temperature range of 0°C to 60°C, and it can endure storage temperatures from -40°C to 85°C, providing flexibility in various settings.

Applications

The 140CPU67060 is ideal for use in:

• Critical industrial control systems that require high availability and fault tolerance.
• Automation systems that need seamless communication and high-speed processing.
• Large-scale manufacturing and process control environments requiring reliable data handling and fast response times.
