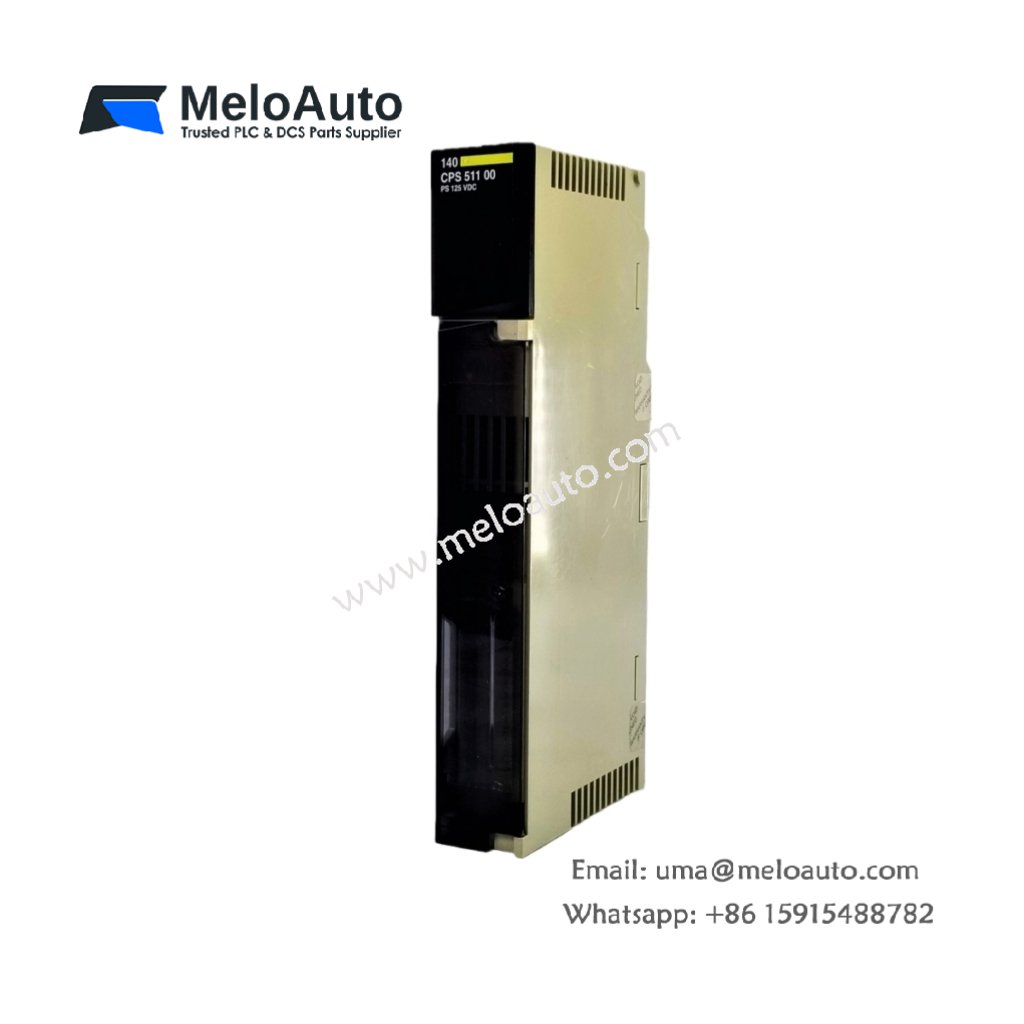

Schneider Electric 140CPS51100C Power Supply for Modicon Series

Overview

The Schneider Electric 140CPS51100C is a highly reliable power supply designed for seamless integration within the Modicon series. This module supports a wide input voltage range of 125 to 150 volts DC, making it compatible with various systems. It delivers a stable 5.1 volts DC output, with a current range from 0.3 to 3 amps, ensuring reliable power to your devices.

Key Features

• Manufacturer: Schneider Electric
• Model: 140CPS51100C
• Category: Power Supply for Modicon series
• Input Voltage: 125 to 150 Volts DC
• Output Voltage: 5.1 Volts DC
• Output Current: 0.3 to 3 Amps
• Inrush Current: 10 Amps
• Fuse Rating: 0.75 Amps
• Weight: 4.54 kg (10 lbs)
• Dimensions: Length: 16.3 cm, Width: 4.5 cm, Height: 31.2 cm
• Ambient Temperature: 0 to 60°C (32 to 140°F)
• Certification: CE, cULus

Technical Specifications

Functionality and Application

The Schneider Electric 140CPS51100C provides reliable power for Modicon series applications. It accepts an input voltage of 125 to 150 VDC, accommodating a variety of industrial systems. The output voltage of 5.1 VDC and current range of 0.3 to 3 amps deliver consistent and safe power to connected devices, such as controllers, sensors, or relays.

The power supply’s inrush current rating of 10 Amps allows for brief surges during startup, without compromising the module’s stability. The 0.75-amp fuse serves as a protective measure, safeguarding internal components from potential overloads or faults.

With an operational temperature range of 0 to 60°C, the 140CPS51100C ensures optimal performance in various environmental conditions, making it suitable for a wide range of industrial settings. The unit’s CE and cULus certifications confirm its compliance with international safety and quality standards.

Advantages

• Wide Input Range: Supports 125 to 150 VDC input, compatible with diverse industrial systems.
• Stable Output: Delivers consistent 5.1 VDC output for reliable device operation.
• High Inrush Current Capability: Handles 10 Amps surges during startup for smooth power delivery.
• Compact Design: Easily integrates into electrical panels with its compact dimensions.
• Safety Certifications: Certified by CE and cULus for global safety compliance.

Applications

The Schneider Electric 140CPS51100C is ideal for Modicon series systems used in a variety of industries. Whether you’re dealing with industrial automation, control systems, or power generation, this power supply ensures that your devices receive the right amount of energy to operate efficiently. Its CE and cULus certifications further assure compliance with international standards.
