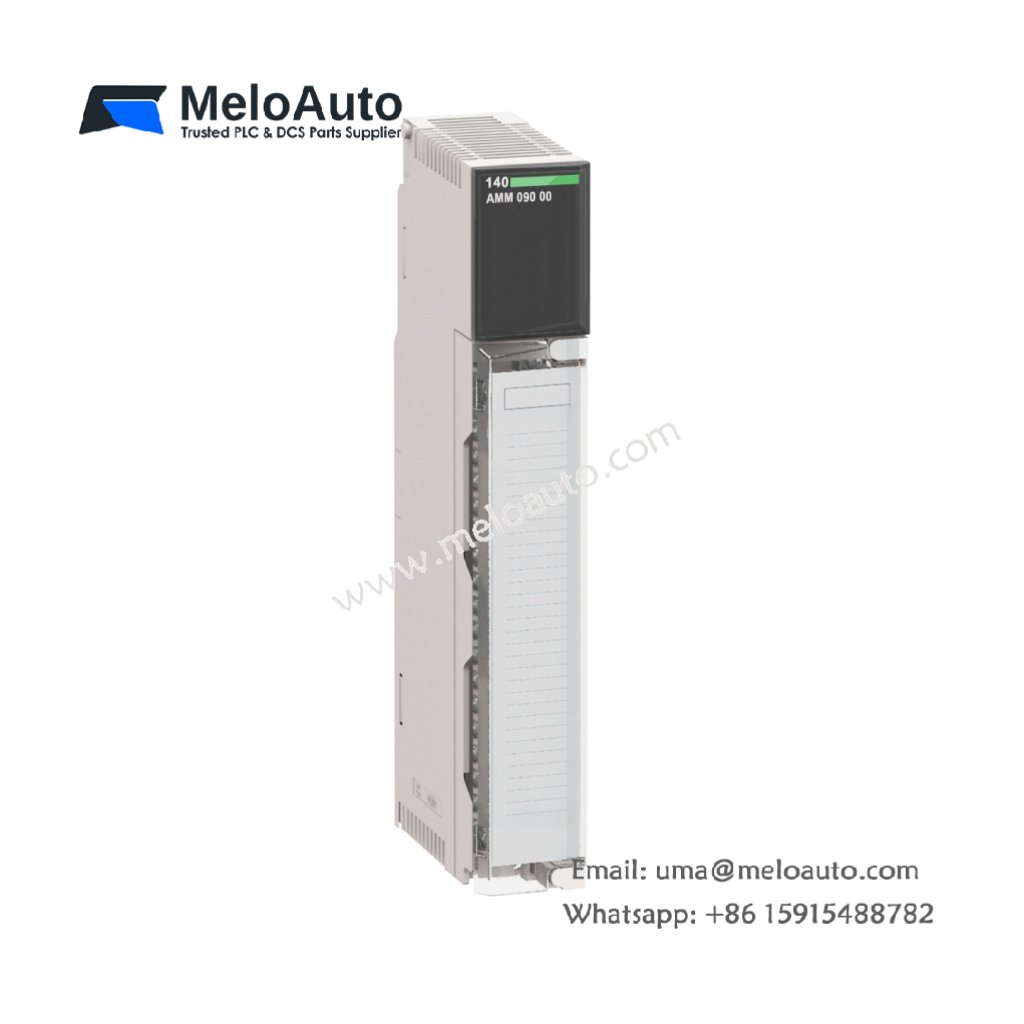

Schneider Modicon Quantum 140AMM09000 Analog Input Output Module In Stock

The Schneider Electric Modicon Quantum 140AMM09000 is a versatile analog input/output module engineered for precise process control. It integrates 4 analog inputs and 2 analog outputs, supporting multiple current and voltage ranges. With high resolution, fast update times, and strong isolation, this module provides reliable performance for complex automation tasks.

Key Features of 140AMM09000

Belongs to the Modicon Quantum automation platform.
Provides 6 total channels: 4 analog inputs and 2 analog outputs.
Supports dual-polarityand unipolar current/voltage input types with resolutions up to 16 bits.
Offers 4–20 mA analog outputs with 12-bit resolution.
Includes short response time: 15 ms output update and 320 ms input update.
Integrates fault detection for open circuit and scaling errors.
Provides isolation up to 750 V between bus, input, and output channels.

Technical Specifications

Specification	Details
Manufacturer	Schneider Electric
Range	Modicon Quantum
Model	140AMM09000
Channels	6 total (4 inputs, 2 outputs)
Input Type	Dual-polarity current ±20 mA, dual-polarity voltage ±10 V / ±5 V
Input Type (Unipolar)	0–20 mA, 4–20 mA, 0–5 V, 1–5 V, 0–10 V
Input Resolution	Up to 16 bits
Max Input	±25 mA, ±50 V
Input Impedance	>10 MΩ (voltage), >250 Ω (current)
Output Range	4–20 mA
Output Resolution	12 bits
Output Voltage Drop	<30 V at 20 mA
Output Loop Voltage	7–30 V DC
Update Time	320 ms input, 15 ms output
Setting Time	900 µs to ±0.1% final value
Accuracy	±0.004% full scale (0–60 °C)
Linearity	2.4% over/under range
Isolation	500 V AC / 750 V DC between bus, inputs, outputs
Fault Types	Open circuit, over/under scaling, channel errors
Bus Current Requirement	350 mA
Module Format	Standard
Local Signaling	1 green LED (bus active), 1 red LED (fault), 6 green LEDs (active channels), 6 red LEDs (channel faults)

Environmental and Physical Data

Specification	Details
Operating Temperature	0…60 °C (32…140 °F)
Storage Temperature	-40…85 °C (-40…185 °F)
Relative Humidity	95% non-condensing
Altitude	≤ 5000 m (16404 ft)
Electromagnetic Resistance	9.1 V/m, 80–2000 MHz (IEC 801-3)
Net Weight	0.3 kg (0.7 lb)
Package Dimensions	31 × 16.4 × 5 cm (12.20 × 6.46 × 1.97 in)
Package Weight	0.461 kg (16.3 oz)
Certifications	CE, FM Class 1 Div 2, C-Tick
Standards	UL 508, CSA C22.2 No.142

Why Choose 140AMM09000?

The 140AMM09000 combines flexible analog inputs and outputs in a compact design. Its wide input range, high accuracy, and strong isolation make it a dependable solution for industrial automation requiring precise signal processing and stable control.
