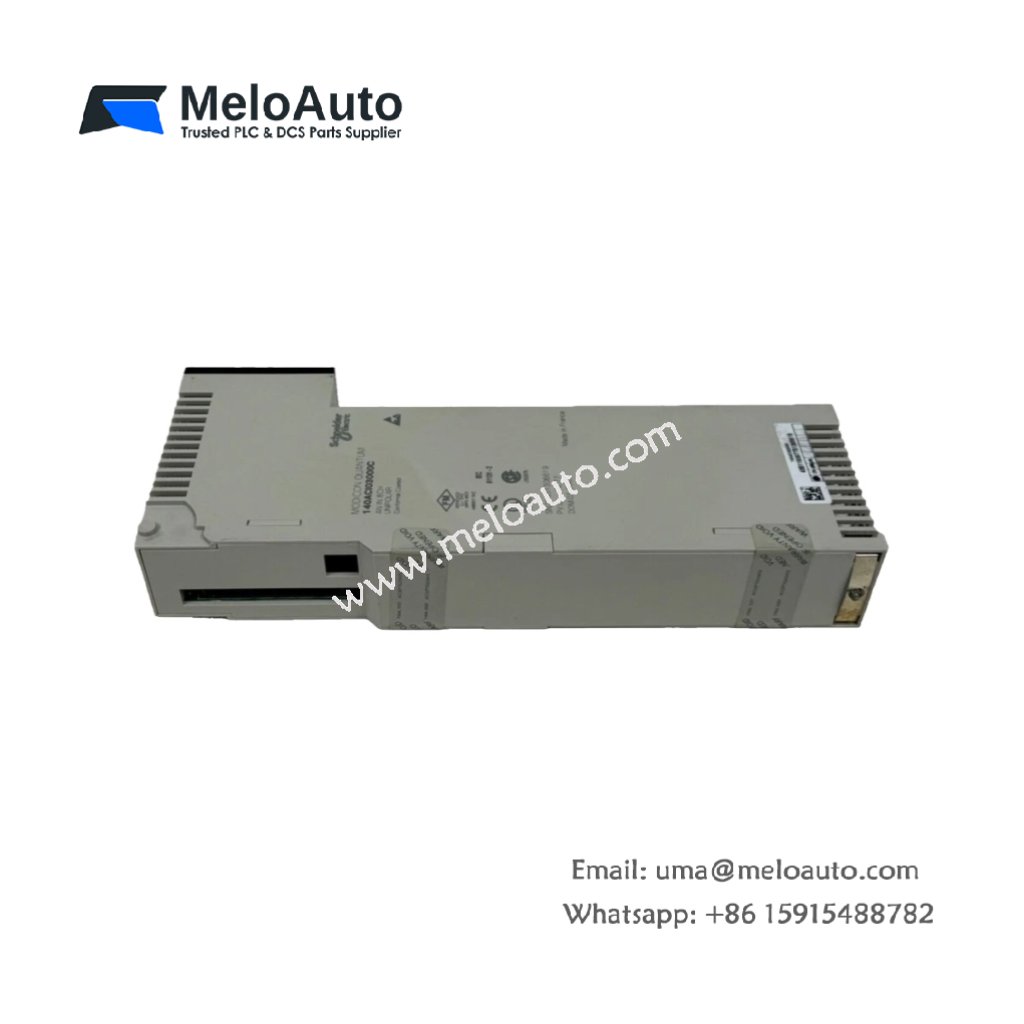

Schneider Electric 140ACI03000C Differential Analog Input Module

The Schneider Electric 140ACI03000C is a high-performance differential analog input module, designed specifically for the Modicon series. This module provides precise analog input capabilities for industrial applications, supporting up to eight differential inputs. It operates with a resolution of 12 bits and supports a wide range of linear measurements, from 1 to 5 V and 4 to 20 mA. Built for reliability, this module offers exceptional accuracy and robust performance.

Key Features of the Schneider Electric 140ACI03000C Differential Analog Input Module

• Eight Inputs: The module supports eight differential inputs, offering flexibility in measurement configuration.
• 12-Bit Resolution: With a 12-bit resolution, the 140ACI03000C delivers accurate and reliable analog data.
• Linear Measuring Range: It operates within a range of 1 to 5 V and 4 to 20 mA, ensuring precise measurement across various systems.
• High Input Impedance: The module features an input impedance of >20 MΩ for voltage and 250 Ω for current, optimizing signal integrity.

Technical Specifications

Product Description

The Schneider Electric 140ACI03000C is a reliable and accurate differential analog input module, built for integration with Modicon PLCs. It supports eight inputs with a 12-bit resolution, offering high accuracy for various industrial applications. This module covers a linear measuring range of 1 to 5 V and 4 to 20 mA, ensuring compatibility with a wide range of input signals.

With a maximum input current of 25 mA and a maximum input voltage of 50 VDC, this module offers excellent versatility and can be used in a variety of industrial environments. It also boasts a high input impedance of >20 MΩ for voltage inputs and 250 Ω for current inputs, which ensures superior signal integrity. Furthermore, the module’s low linearity error of ±0.04% ensures highly precise data measurement, even in complex applications.

Applications

The Schneider Electric 140ACI03000C is ideal for use in:

• Industrial automation systems requiring precise differential analog input measurements.
• PLC-based control systems needing high-resolution analog data processing.
• Monitoring and measurement applications where accurate voltage and current signals are critical.
