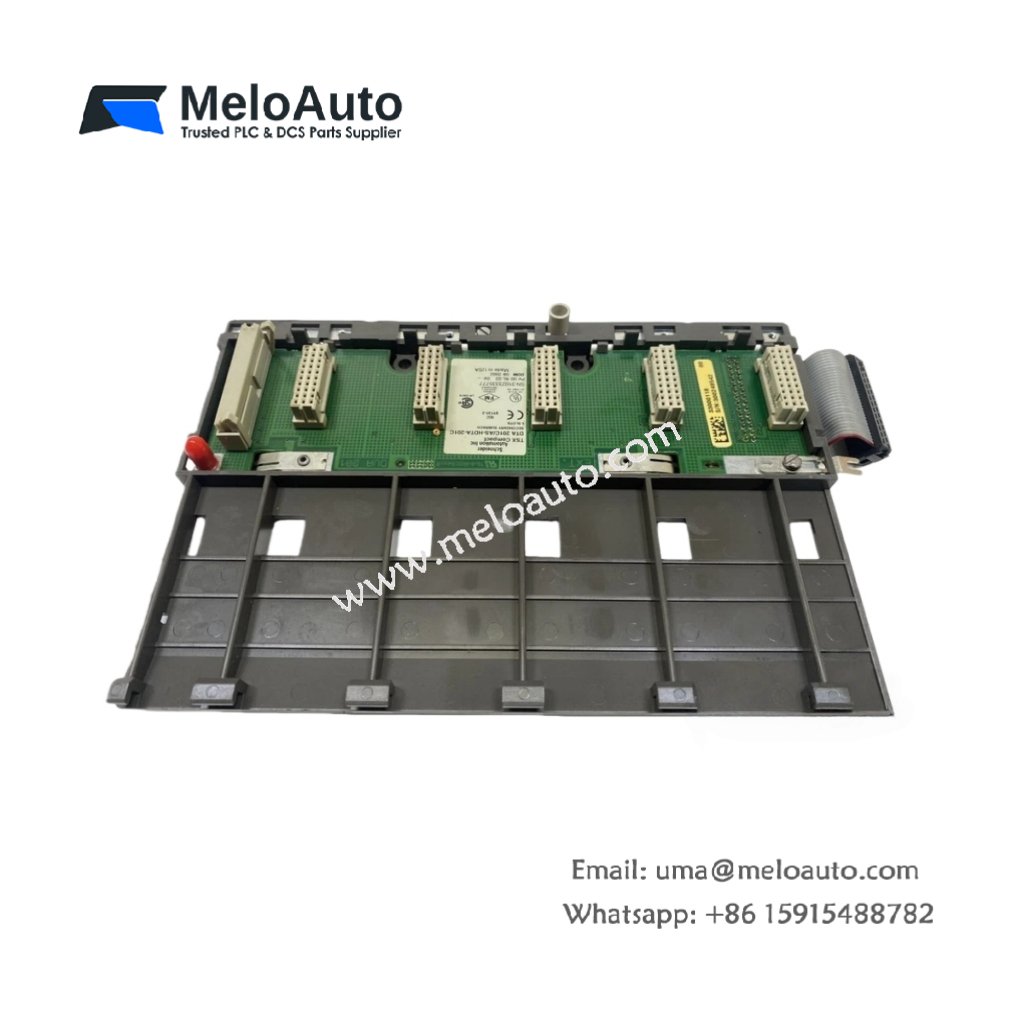

Schneider DTA 201 Secondary Subrack

The Schneider DTA 201 is a secondary subrack backplane designed to support efficient remote I/O modules within automation systems. It accommodates up to five modules, offering a compact, versatile, and modular solution for expanding I/O capacity in industrial control setups. This backplane is compatible with Schneider Electric’s range of automation equipment, ensuring seamless integration into various applications.

Key Features of Schneider DTA 201

Versatile and Compatible: Supports a broad array of modules, enabling flexible configurations and integration with Schneider Electric automation systems.
Compact Design: The 5-slot configuration offers a space-efficient solution while maintaining high I/O capacity.
Remote I/O Functionality: Optimized for use in remote I/O applications, facilitating effective communication and control.
Modular Structure: The modular design simplifies installation and future expansion without requiring significant modifications.

Technical Specifications for Schneider DTA 201

Parameter	Details
Manufacturer	Schneider Electric
Product Type	Secondary Subrack
Part Number	DTA 201
Module Slots	5 slots
Compatibility	Compatible with Schneider I/O modules
Mounting	Standard backplane mount
Dimensions (WxHxD)	145 mm x 125 mm x 150 mm
Weight	0.85 kg (1.87 lbs)
Protection Class	IP20
Operating Temperature	-10 °C to 60 °C
Storage Temperature	-40 °C to 85 °C
Max Operating Humidity	95%, non-condensing

Description

The Schneider DTA 201 secondary subrack is an essential component for industrial automation systems requiring remote I/O capabilities. It supports up to five I/O modules, offering a simple yet effective solution for expanding control systems without sacrificing space. The backplane’s modular design ensures that users can configure it based on specific project needs, allowing flexibility in both the short and long term.

This secondary subrack is compatible with Schneider Electric’s range of automation equipment, ensuring smooth integration into existing setups. Its compact design makes it ideal for use in limited-space environments, while its high I/O capacity ensures efficient communication and control in industrial applications.

With a protection class of IP20, the DTA 201 backplane is suitable for indoor use in environments where exposure to dust or moisture is minimal. It operates within a wide temperature range of -10 °C to 60 °C, making it reliable in typical industrial settings.
