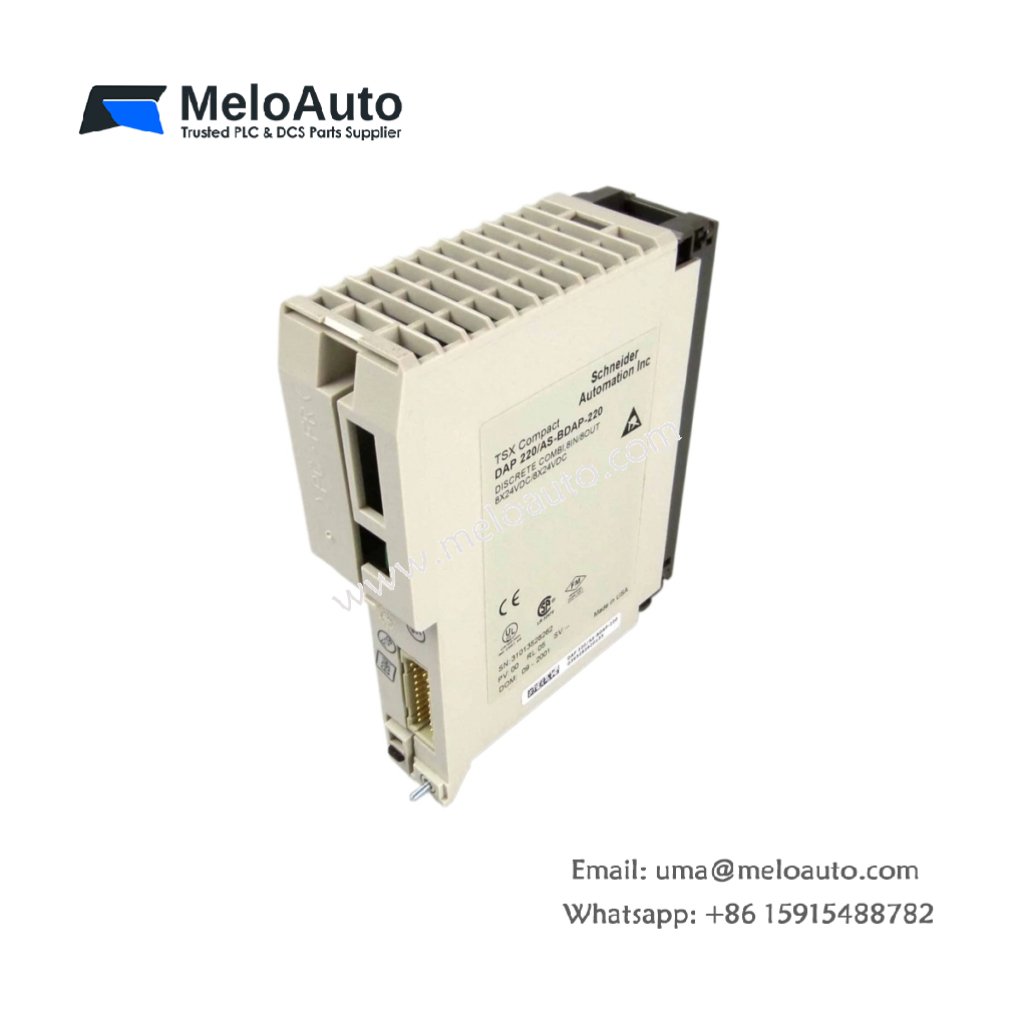

Schneider DAP 220 Electric Output Module

The Schneider DAP 220 is a high-performance electric output module designed for use in industrial automation systems. This reliable and robust module is built to deliver precise control and integration for a wide range of automation applications. It offers excellent performance in managing high-power loads, making it suitable for various industrial settings.

Key Features and Specifications

• Model: Schneider DAP 220
• Type: Electric Output Module
• Manufacturer: Schneider Electric
• Product Line: DAP Series
• Part Number: DAP 220
• Weight: 0.75 kg (approx.)
• Operating Voltage: 24 V DC
• Input Voltage Range: 24 V DC
• Output Channels: 16 output channels for precise load management
• Output Type: Solid-state outputs
• Output Current: 2 A per channel
• Protection: Short-circuit and overload protection
• Mounting: DIN rail mountable for easy installation
• Temperature Range: 0°C to 60°C (operating)

Detailed Technical Specifications

Reliable Performance and Efficiency

The Schneider DAP 220 ensures reliable and efficient control for industrial applications with its 16 solid-state output channels. Each channel can manage 2 A per channel, providing precise and responsive control for your automation system. With short-circuit protection and overload protection, the DAP 220 guarantees the safety of your system even under demanding conditions.

Easy Integration and Mounting

The Schneider DAP 220 is designed to be easily integrated into your existing system. It is DIN rail mountable, allowing for convenient installation in standard control cabinets. With its compact size, it can fit into a wide range of automation setups, ensuring flexibility in system design.

Versatile and Robust for Industrial Environments

Built to withstand harsh environments, the Schneider DAP 220 operates within a temperature range of 0°C to 60°C. This module is perfect for applications requiring high durability and performance, including factory automation, process control, and machine automation.
