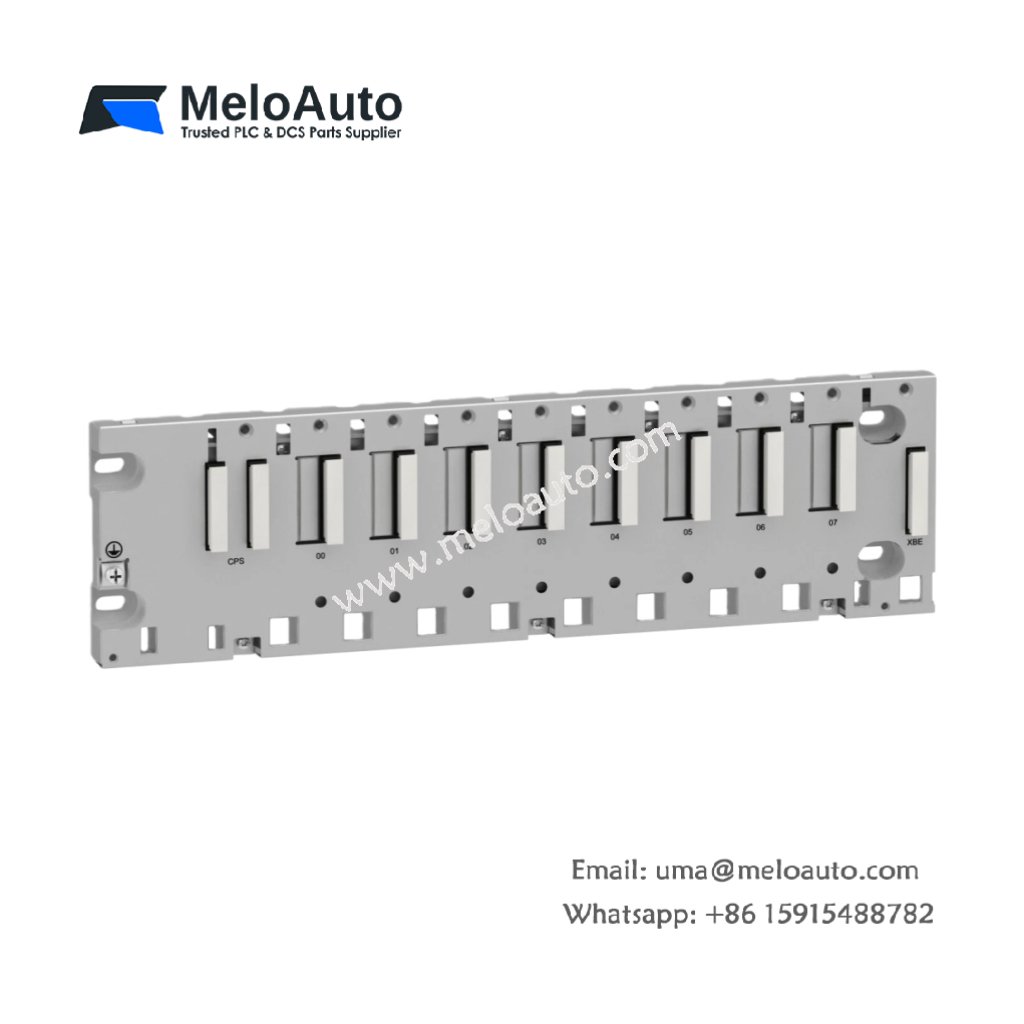

Schneider BMXXBP0800 Modicon M340 I/O Module Rack

Overview

The Schneider BMXXBP0800 rack is specifically designed for use with Modicon M340 I/O modules. This 8-slot rack offers a versatile and secure housing for I/O modules, ensuring a robust and efficient system setup. With multiple mounting options, including panel, plate, and DIN rail installation, it provides flexible integration into industrial control systems.

Key Features

• Manufacturer: Schneider Electric
• Product Type: Rack
• Product Line: Modicon
• Part Number: BMXXBP0800
• Slots: 8 Slots
• Material: Metal
• Input Voltage: 24 V DC
• Protection Degree: IP20
• Mounting Type: Panel, Plate, or DIN Rail Mounting
• Certification: UL, CE
• Connection Type: Screw Terminal, Modular
• Operating Temperature Range: -10°C to +60°C
• Weight: 0.96 kg (2.13 lbs)
• Efficiency: 0.98

Technical Specifications

Description

The Schneider BMXXBP0800 rack is an essential part of the Modicon M340 series, offering an efficient and secure housing solution for I/O modules. Designed for reliability, this 8-slot rack supports various mounting options, including panel, plate, or DIN rail installations. This flexibility allows it to integrate seamlessly into a wide range of industrial setups.

Built from high-quality metal, the BMXXBP0800 offers both durability and a lightweight structure, weighing just 0.96 kg (2.13 lbs). It operates on a 24V DC input, making it suitable for numerous automation applications. Its IP20 protection ensures that it remains effective in environments with minimal dust or moisture exposure.

The rack is optimized for performance, operating reliably within a temperature range of -10°C to +60°C. This wide temperature tolerance makes it versatile across various settings, from standard to more demanding environments. Additionally, the rack’s screw terminal connections ensure easy and secure wiring, facilitating a straightforward installation process.

The BMXXBP0800 achieves an impressive efficiency rating of 0.98, ensuring minimal energy loss during operation. It meets international safety and quality standards, including UL and CE certifications, ensuring compliance with industry regulations.

Applications

The Schneider BMXXBP0800 rack is primarily used in industrial automation and control systems, specifically designed to house the Modicon M340 I/O modules. Its modular structure makes it ideal for flexible control systems where efficient wiring, ease of installation, and protection against environmental factors are essential.

Why Choose the Schneider BMXXBP0800?

• Durability: Constructed with robust metal for longevity.
• Flexible Mounting Options: Choose from panel, plate, or DIN rail mounting.
• Efficient Performance: Achieves a high operational efficiency of 0.98.
• Reliable Protection: IP20 protection ensures safety in minimal dust or moisture environments.
• Versatile Temperature Range: Operates efficiently from -10°C to +60°C.
• Certified Quality: UL and CE certified for compliance with safety standards.
