Overview

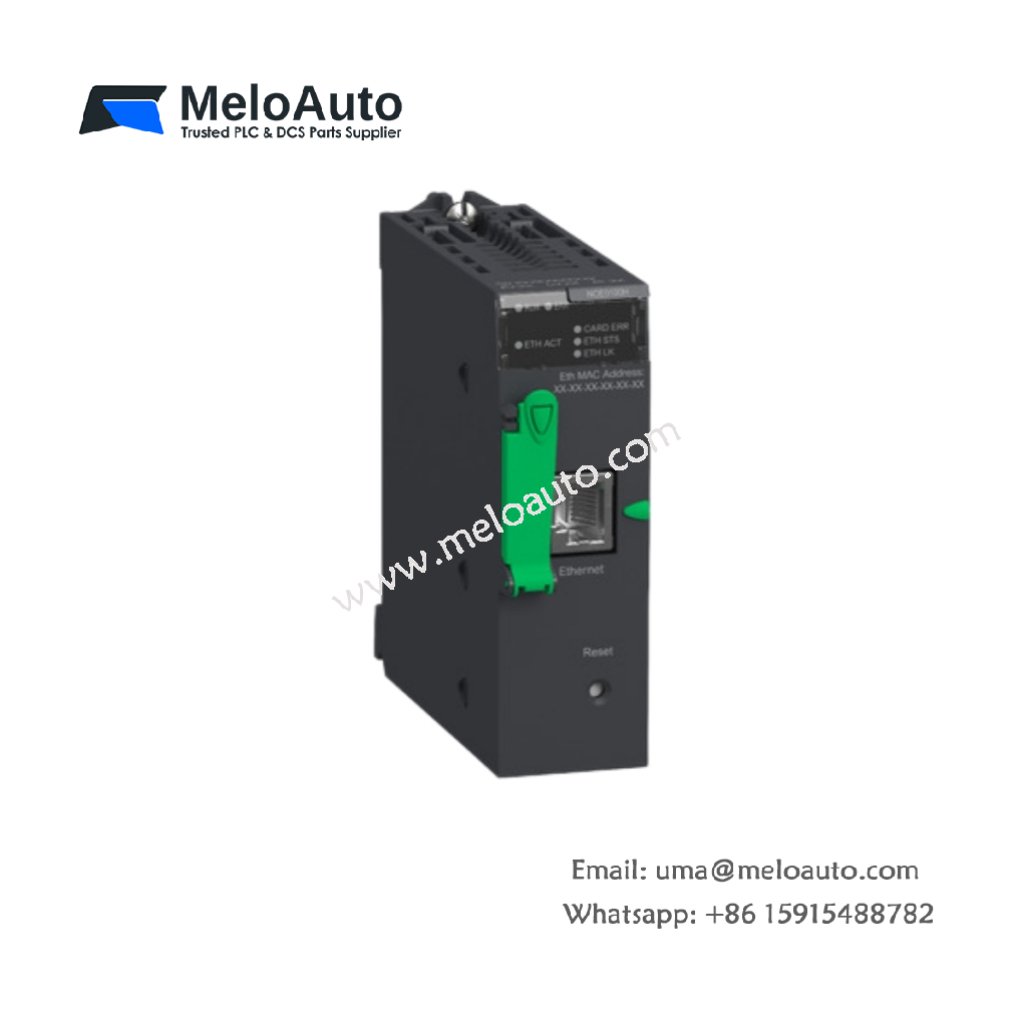

The Schneider BMXNOE0100H Ethernet TCP/IP network module enables high-speed, reliable communication within Schneider Electric’s industrial automation systems. Designed for seamless integration, this module ensures efficient data transfer over Ethernet networks, enhancing communication between devices in industrial environments.
The BMXNOE0100H operates with a stable 24 V DC supply and supports TCP/IP protocols, making it suitable for real-time control and monitoring applications. By enabling easy integration into existing networks, it supports a wide range of automation tasks, from machinery control to remote monitoring.
Key Technical Specifications
Below is a detailed look at the technical specifications of the Schneider BMXNOE0100H Ethernet TCP/IP Network Module:
| Specification | Details |
|---|---|
| Model Number | BMXNOE0100H |
| Product Type | Ethernet TCP/IP Network Module |
| Series | Modicon (Schneider Electric) |
| Weight | 0.3 kg (0.66 lbs) |
| Communication Protocol | TCP/IP |
| Interface | Ethernet (RJ45) |
| Operating Voltage | 24 V DC ± 10% |
| Current Rating | 0.5 A |
| Mounting Type | DIN Rail Mount |
| Temperature Range | -20°C to 60°C |
| Relative Humidity | 95% or less (non-condensing) |
| Protection Class | IP20 |
| RoHS Compliant | Yes |
Features of the BMXNOE0100H Network Module
- Fast and Reliable Communication: The BMXNOE0100H supports TCP/IP protocols, ensuring fast and reliable data transfer across Ethernet networks. As a result, it enhances communication between devices, improving system efficiency.
- Compact and Easy to Install: With a weight of just 0.3 kg (0.66 lbs) and a DIN rail mount, this module is compact and simple to install, making it ideal for space-constrained control panels.
- Wide Temperature Tolerance: Operating efficiently between -20°C and 60°C, the BMXNOE0100H performs reliably in various industrial environments, including factories and outdoor settings.
- Low Power Consumption: This module consumes only 0.5 A of current, ensuring energy-efficient operation without sacrificing communication performance.
- Environmental Protection: With an IP20 protection class, the BMXNOE0100H is protected from dust and moisture, ensuring its stability and longevity in non-harsh environments.
- Easy Integration: Designed for Ethernet (RJ45) communication, the module can be quickly integrated into existing networks, improving overall system performance and connectivity.
Applications of the BMXNOE0100H Ethernet TCP/IP Network Module
The Schneider BMXNOE0100H Ethernet TCP/IP Network Module is ideal for several industrial applications, including:
- Industrial Automation: It enables seamless communication between control systems and peripheral devices, improving the performance of automation processes.
- Remote Monitoring and Control: The module facilitates remote access to machinery and systems, allowing operators to monitor and control processes from anywhere within the network.
- System Integration: With its compatibility for TCP/IP protocols, the BMXNOE0100H integrates easily into industrial Ethernet networks, allowing for a streamlined automation system.
Why Choose the BMXNOE0100H?
The Schneider BMXNOE0100H Ethernet TCP/IP Network Module delivers fast communication, low energy consumption, and seamless integration for industrial control systems. It supports reliable data transfer over TCP/IP and provides a high level of flexibility in industrial automation. Whether you need remote monitoring, machine control, or system integration, this module offers the ideal solution for modern automation systems.
