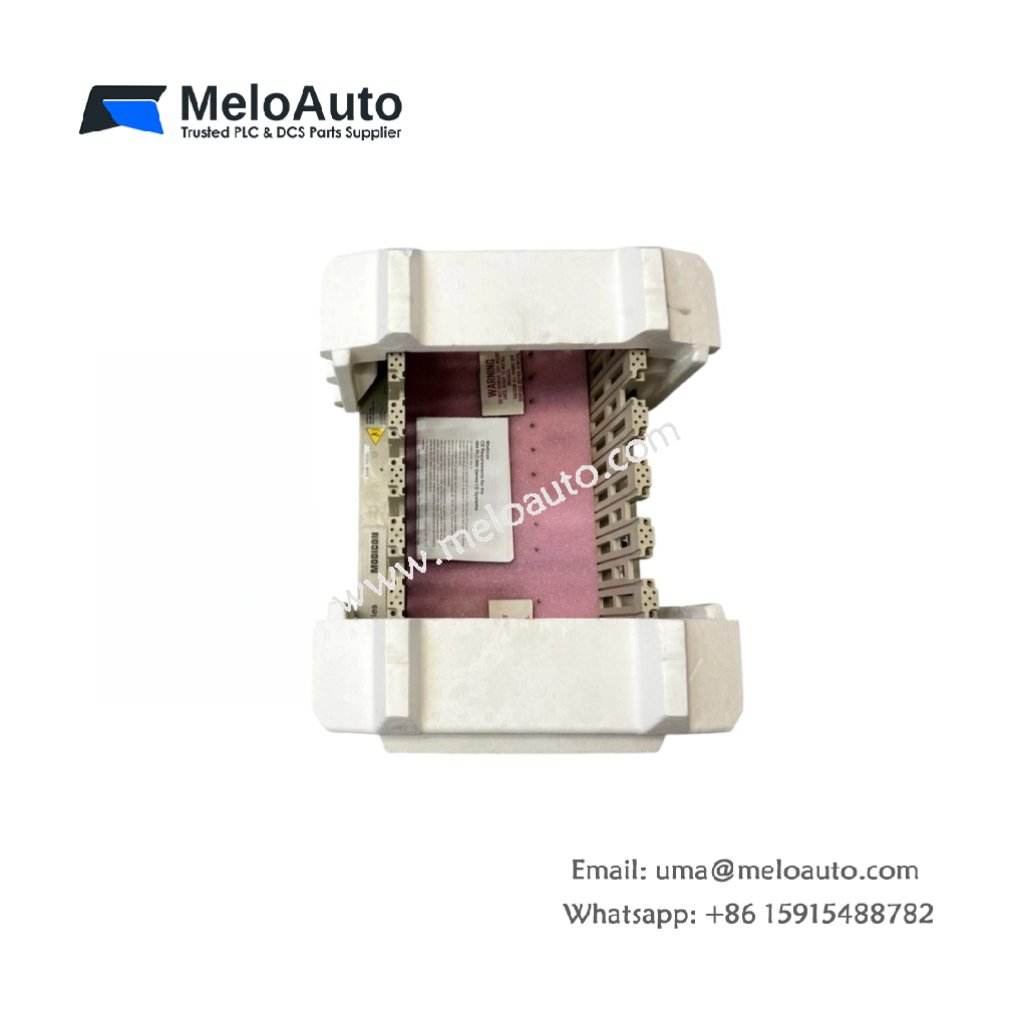

Schneider ASH819103 PLC Rack

Overview

The Schneider ASH819103 PLC Rack provides a robust primary housing solution for industrial automation systems. Its 7-slot configuration supports modular expansion while maintaining compact 19-inch panel compatibility. Engineers rely on its 800 Series design for RMS-TSG-TZ-C series PLC integration.

Key Features

Provides seven independent slots for PLC modules, facilitating flexible system configuration.
Compatible with Schneider 800 Series modules for streamlined industrial automation setups.
Supports standard 19-inch panel mounting for easy installation in control cabinets.
Offers durable construction, ensuring long-term stability and mechanical reliability.

Technical Specifications

Parameter	Details
Manufacturer	Schneider Electric
Model	ASH819103
Series	800 Series / RMS-TSG-TZ-C
Category	PLC Rack / Primary Housing
Number of Slots	7
Rack Width	19 in (482.6 mm)
Slot Pitch	1.6 in (40 mm) per slot
Dimensions (HxWxD)	7.5 x 19 x 6.3 in (190 x 482.6 x 160 mm)
Weight	6.6 lb (3.0 kg)
Material	Powder-coated steel
Mounting Type	Panel mount / standard 19-inch rack
Operating Temperature	0°C to 60°C
Certifications	CE, UL, RoHS compliant

Applications

Schneider ASH819103 Rack suits various industrial PLC applications:

Housing RMS-TSG-TZ-C series modules for modular automation systems.
Providing primary structural support for control panels and machinery integration.
Enabling scalable PLC configurations in manufacturing, processing, or robotics applications.

Advantages

Simplifies system upgrades with seven-slot modular design for flexible PLC deployment.
Reduces installation time through standard 19-inch panel compatibility.
Enhances durability with powder-coated steel housing resistant to industrial wear.
