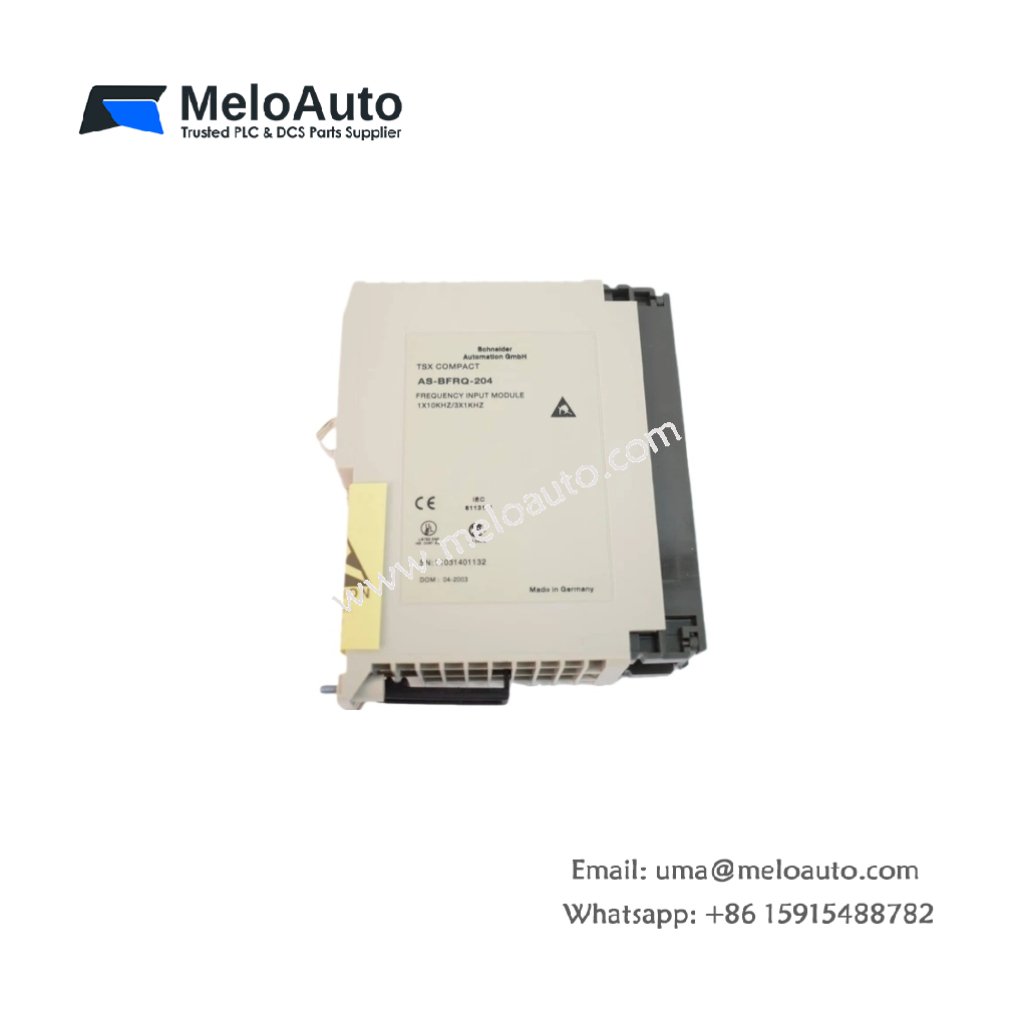

Schneider ASBFRQ204 PLC Input Module – 24 VDC, 22 Connections, Modbus Communication

The Schneider ASBFRQ204 PLC input module is designed to deliver reliable and efficient performance for industrial applications. With 22 connections, this module operates at a nominal voltage of 24 VDC. Additionally, it supports an output frequency range from 0 Hz to 100 kHz, which makes it suitable for high-speed data processing. Furthermore, it uses RS-485 communication through the Modbus protocol, ensuring seamless integration into existing systems.

Key Features

• Manufacturer: Schneider Electric
• Model: ASBFRQ204
• Product Line: Modicon
• Product Type: PLC Input Module
• Operating Voltage: 24 VDC
• Number of Connections: 22
• Current Consumption: 150 mA
• Output Frequency Range: 0 Hz to 100 kHz
• Data Communication: RS-485
• Communication Protocol: Modbus
• Weight: 0.88 lbs (0.40 kg)

Technical Specifications

Description

The Schneider ASBFRQ204 is a high-performance PLC input module built for industrial applications. Operating at 24 VDC, it provides 22 connections for a wide range of system integrations. In addition to its versatile connectivity, this module consumes 150 mA of current. Its capability to handle output frequencies ranging from 0 Hz to 100 kHz makes it ideal for demanding applications that require fast data processing.

Moreover, the ASBFRQ204 supports RS-485 communication, which is widely used for industrial data exchange. By utilizing the Modbus protocol, the module ensures compatibility with a variety of devices and systems, making it a reliable option for numerous industries. Additionally, it is designed for easy installation on a DIN rail, offering flexibility in mounting and placement.

Why Choose the Schneider ASBFRQ204?

• Versatile Connectivity: With 22 connections, it supports diverse system configurations.
• Reliable Communication: RS-485 and Modbus ensure seamless integration with industrial networks.
• High-Speed Data Processing: Capable of handling frequencies from 0 Hz to 100 kHz.
• Flexible Installation: Easily mounted on a DIN rail, allowing for a compact setup.

Applications

The Schneider ASBFRQ204 PLC input module is ideal for various industrial applications, including:

• Industrial Automation: Used in systems that require high-speed data processing.
• Machine Control: Perfect for controlling machinery with fast input/output demands.
• Process Control: Enables quick and accurate data acquisition for control systems.
• Energy Management: Useful for energy monitoring and management in industrial plants.

Why Schneider Electric?

As a global leader in automation and control, Schneider Electric provides innovative solutions that meet the high standards of modern industries. The ASBFRQ204 module reflects Schneider Electric’s commitment to delivering reliable, flexible, and high-performance automation products.
