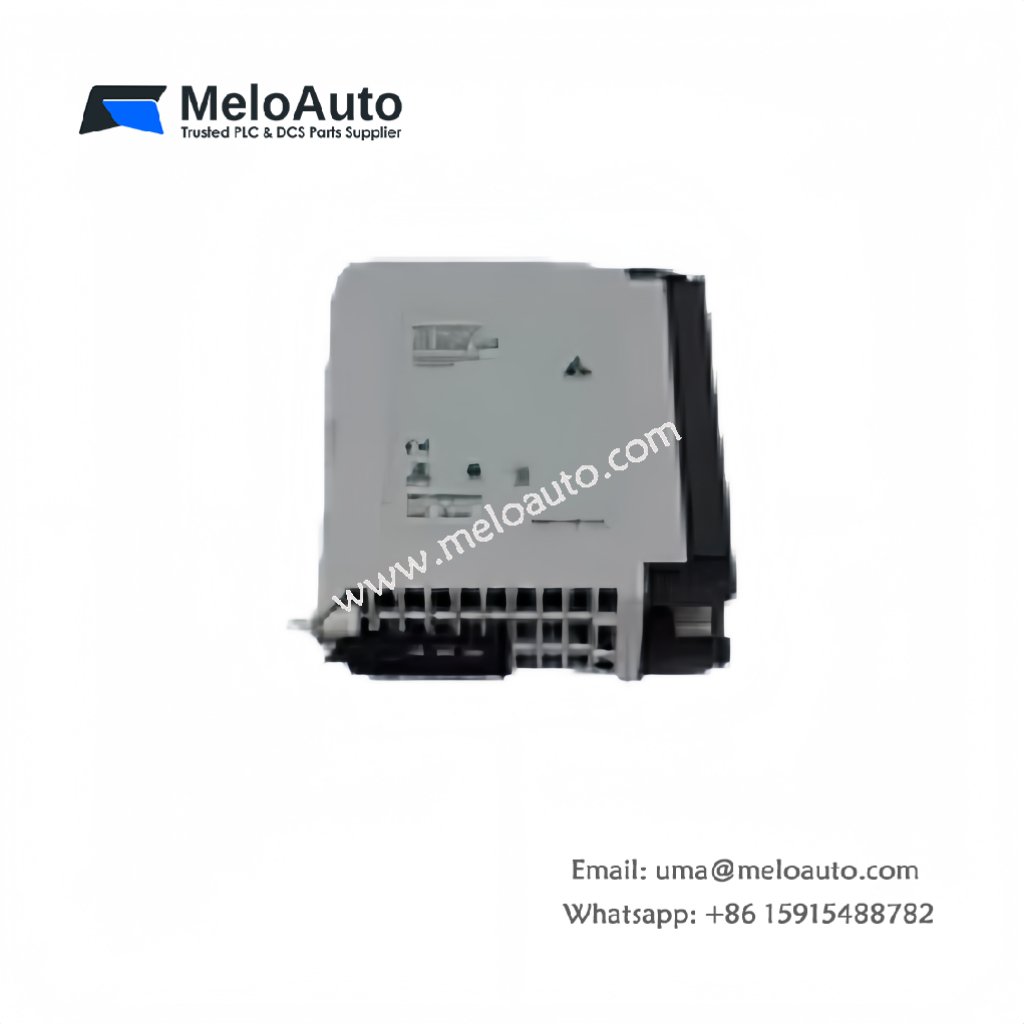

Schneider ASBDEP216 Modicon 984 Digital Input Module

The Schneider ASBDEP216 is a high-performance digital input module from the Modicon 984 series. Designed to provide reliable and precise control, it features 16 input points and operates within a 24 Vdc configuration. This module is ideal for handling input voltages ranging from 12 Vdc to 30 Vdc when in the ON state. With its robust isolation features and fast signal response time, the ASBDEP216 offers seamless integration into your automation system.

Key Features of the Schneider ASBDEP216

Voltage Range and Configuration: The ASBDEP216 operates with a 24 Vdc input configuration, supporting a voltage range from 12 Vdc to 30 Vdc in the ON state, ensuring versatility for various automation tasks.
Fast Signal Response: With a typical signal response time of just 4 ms, the module ensures quick input processing, crucial for time-sensitive applications.
Input Isolation: Each input is individually isolated with an optocoupler, offering enhanced protection and reducing the risk of signal interference or damage to the module.
Efficient Power Consumption: The ASBDEP216 uses less than 15 mA at 5 V for internal power, ensuring energy efficiency in your system without compromising performance.
Wetting Current Requirement: Each input requires a 7 mA wetting current at 24 Vdc, ensuring reliable operation even in demanding industrial environments.
Slot Occupancy: This module requires only 1 slot for installation, making it easy to integrate into Modicon 984 racks.

Technical Specifications

Specification	Details
Model	ASBDEP216
Product Line	Modicon 984
Product Type	Digital Input Module
Manufacturer	Schneider Electric
Total Input Points	16
Input Configuration	24 Vdc
Voltage Range (ON State)	12 Vdc to 30 Vdc
Voltage Range (OFF State)	-2 Vdc to +5 Vdc
Wetting Current Requirement	7 mA at 24 Vdc
Signal Response Time	4 ms (typical)
Internal Power Usage	Less than 15 mA at 5 V
Slot Occupancy	Requires 1 slot
Input Isolation	Individual optocoupler per input
Group Division	2 groups
Points per Group	8

Why Choose the Schneider ASBDEP216?

Wide Voltage Range: With an input voltage range of 12 Vdc to 30 Vdc, the ASBDEP216 accommodates a wide array of industrial applications.
Reliable Signal Processing: The 4 ms response time ensures quick and accurate processing of input signals, crucial for applications requiring fast decision-making.
Enhanced Protection: The optocoupler isolation on each input ensures the module operates safely, even in challenging industrial environments.
Energy-Efficient: The module’s low power consumption of less than 15 mA at 5 V minimizes energy usage while maintaining optimal performance.
Easy Integration: The ASBDEP216 occupies only 1 slot, making it simple to add to your existing Modicon 984 system without complex installation requirements.
