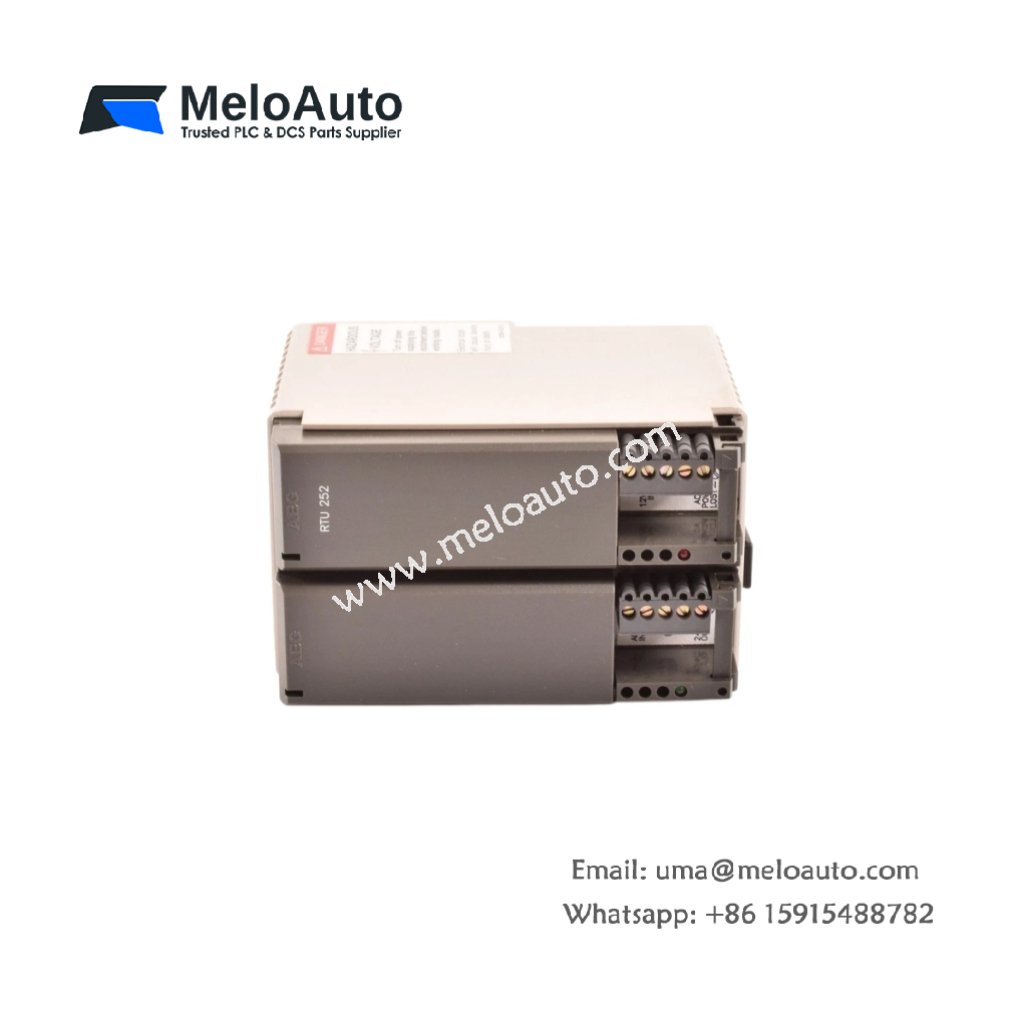

Schneider ASBDAU252C I/O Module

Analog I/O for Modicon Momentum Systems

The Schneider ASBDAU252C provides analog input and output capabilities for Momentum PLCs. This module converts field sensor signals and controls analog actuators directly. It suits process control, HVAC systems, and continuous monitoring applications.

Technical Specifications

Parameter	Specification
Model	ASBDAU252C
Category	I/O Module
Height	99 mm
Width	64 mm
Depth	70 mm
Weight	0.210 kg
Analog Inputs	2 x differential channels
Input Signal Range	4-20 mA or 0-20 mA (selectable)
Input Resolution	12 bits (4096 counts)
Input Accuracy	±0.5% of full scale at 25°C
Analog Outputs	2 x single-ended channels
Output Signal Range	4-20 mA (active)
Output Resolution	12 bits (4096 counts)
Output Accuracy	±0.5% of full scale at 25°C
Loop Power Supply	24 V DC (external, 18-30 V DC)
Input Impedance	250 Ω (current loop)
Output Load Range	0 to 600 Ω
Response Time	20 ms per channel (typical)
Isolation	500 V RMS (field to logic)
Connector Type	1 x 10-pin screw terminal block
Status Indicators	2 x green LEDs (module OK, bus OK)
Internal Components	1 ADC chip, 1 DAC chip, 1 optocoupler array, 1 DC-DC converter
Energy Storage	100 µF filtering capacitor

Analog Input Architecture and Signal Conversion

The ASBDAU252C features two differential analog input channels for field sensors. Each channel accepts 4-20 mA or 0-20 mA current signals. A 12-bit ADC converts each analog value into digital counts. The module provides 4096 steps of resolution across the full range. The Schneider ASBDAU252C includes a 250 Ω resistor for current-to-voltage conversion. Input accuracy reaches ±0.5% of full scale at 25°C ambient temperature.

Analog Output Characteristics and Drive Capability

This I/O module provides two 4-20 mA analog output channels for actuator control. Each output delivers active current directly to valves or positioners. The 12-bit DAC generates 4096 discrete output steps for fine control. Outputs drive loads from 0 to 600 Ω without external amplifiers. The ASBDAU252C updates outputs every 20 milliseconds for stable regulation. Output accuracy matches the input specification at ±0.5% of full scale.

Field Wiring and Loop Power Configuration

Connect 4-20 mA transmitters to the input terminal pairs for each channel. Wire an external 24 V DC power supply to the auxiliary terminals. The Schneider ASBDAU252C draws loop power from this external source. Connect output actuators directly to the output terminal pairs. Use twisted-pair shielded cable for all analog signal wiring. The module provides 500 V RMS isolation between field and logic circuits.

Physical Dimensions and Installation Guidelines

The Schneider ASBDAU252C weighs only 0.210 kilograms for lightweight mounting. Its height measures 99mm, width 64mm, and depth 70mm. Install this I/O module on standard 35 mm DIN rails. The module consumes 2.5 watts from the external 24 V DC supply. It operates reliably from 0°C to +55°C ambient temperature. Two green LEDs indicate module health and bus communication status.

Energy Storage and Electrical Characteristics

The ASBDAU252C includes a 100 µF capacitor for power supply filtering. This capacitor stabilizes the internal analog and digital voltage rails. It also reduces noise on the 4-20 mA input and output circuits. The Schneider ASBDAU252C requires no battery for normal operation. It stores no configuration data that needs battery backup. All settings reside in non-volatile memory permanently.
