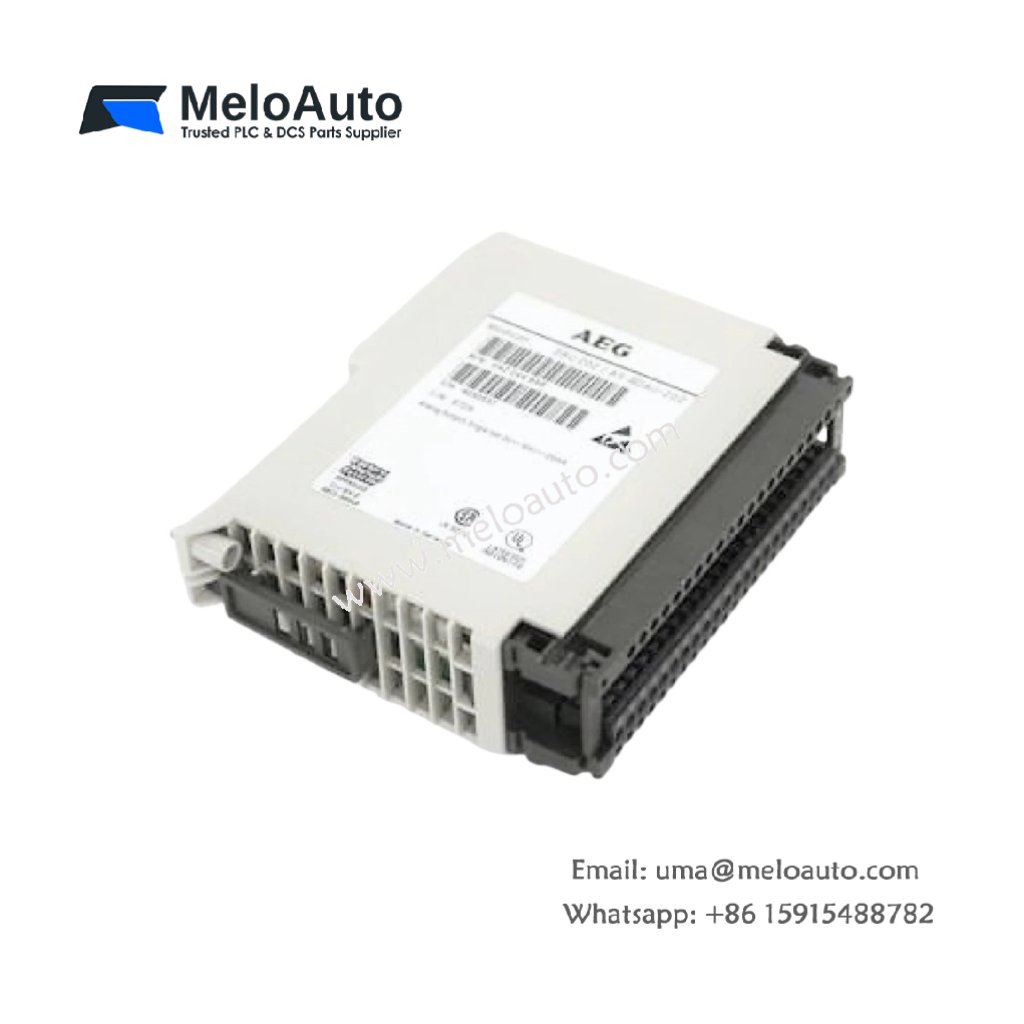

Schneider ASBDAU202 – Analog Output Device for Modicon 984 Series

The Schneider ASBDAU202 is an advanced analog output device from the Modicon 984 series. It features two versatile channels, designed for precise control applications in industrial automation systems. With a voltage operating range of ±10 V and a current range of ±20 mA, this unit ensures stable and accurate performance. The ASBDAU202 boasts a high isolation rating of 700 V, providing enhanced signal integrity for reliable data transmission and operation.

Key Features of the Schneider ASBDAU202

• Dual Channels for Flexibility: The ASBDAU202 provides two output channels, allowing for simultaneous control of two separate processes. This enhances operational efficiency and flexibility in various applications.
• Wide Operating Range: This device supports a voltage range of ±10 V and a current range of ±20 mA, making it suitable for diverse control and monitoring needs in automated systems.
• High Isolation Rating: The unit offers a robust 700 V isolation between channel-to-channel and channel-to-bus. This feature minimizes signal interference, ensuring high integrity and accurate data transmission.
• Exceptional Resolution and Accuracy: The ASBDAU202 delivers 11-bit plus sign resolution, with an accuracy of ±0.4% of the full range. This ensures precise output control in applications requiring detailed feedback.
• Compact Design: With a weight of just 0.45 kg (1.00 lbs), the ASBDAU202 is compact and lightweight, making it easy to integrate into various industrial setups.

Technical Specifications

Why Choose the Schneider ASBDAU202?

• Versatile and Flexible Control: With its two output channels, the ASBDAU202 provides ample flexibility for controlling different processes simultaneously. This makes it ideal for various automation setups.
• Reliable Signal Integrity: Thanks to its 700 V isolation rating, the ASBDAU202 maintains high signal integrity. This ensures that the output remains accurate and free from interference, even in demanding environments.
• Precise Performance: The ASBDAU202 delivers precise control with 11-bit plus sign resolution and ±0.4% accuracy, making it a reliable choice for applications that require high precision.
• Compact and Lightweight: The device’s compact size and low weight make it easy to integrate into existing systems, saving valuable space while providing excellent performance.
• Durable and Efficient: The ASBDAU202 is built to withstand the rigors of industrial environments, offering reliable operation over an extended period.
