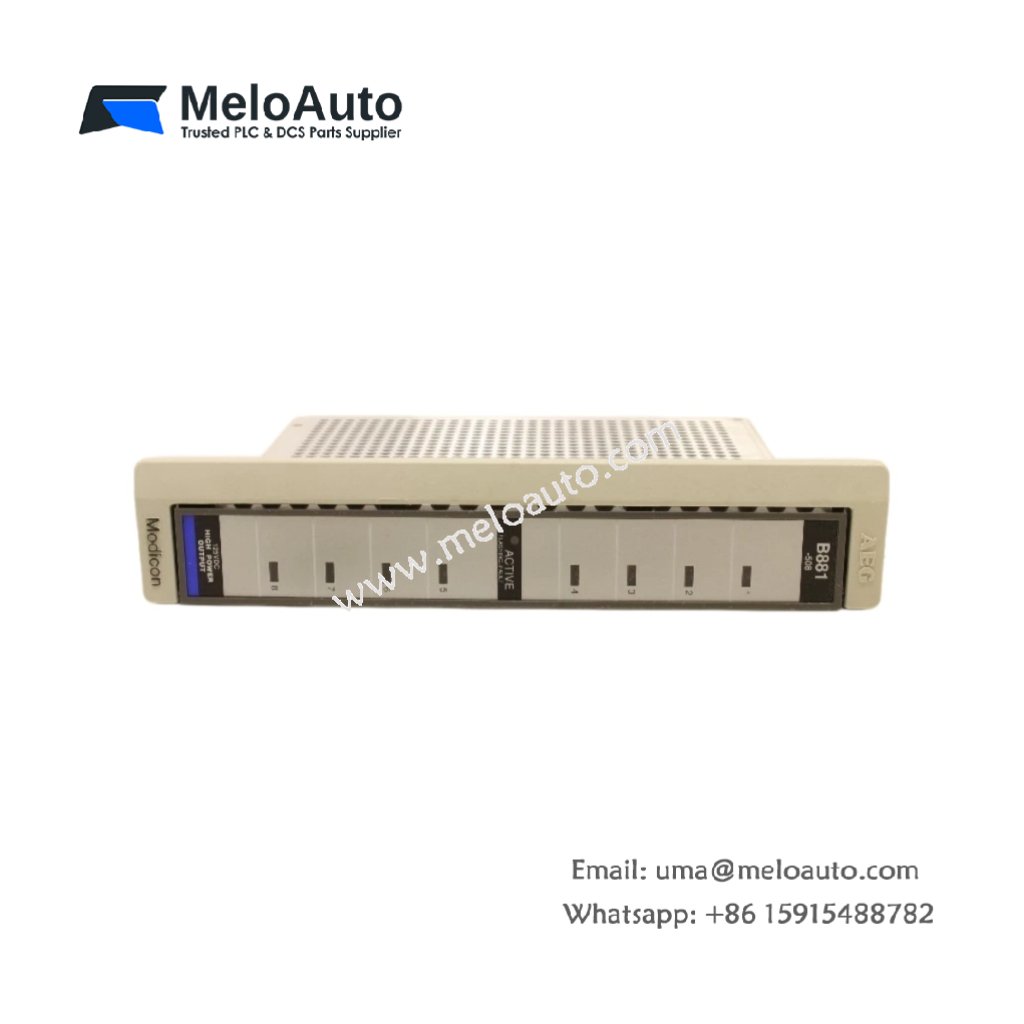

Schneider ASB881508 I/O Module

This I/O module provides versatile input and output capabilities for DC control systems. The Schneider ASB881508 belongs to the Modicon 800 series from Schneider Electric. Its compact design supports eight points of I/O with reliable 125 V DC operation.

Key Technical Specifications

Parameter	Specification
Manufacturer	Schneider Electric
Product Line	Modicon 800
Model	ASB881508
Type	I/O Module
Voltage Rating	125 V DC
Number of Points	8
Cooling	Natural
Protection Class	IP20
Enclosure Rating	NEMA 1
Weight	0.37 kg (0.81 lbs)
Operating Temperature	0°C to 40°C
Operating Humidity	80% non-condensing
Max Altitude	1000 m above sea level

Reliable I/O Configuration

The Schneider ASB881508 provides eight input and output points for DC system integration. Each point operates at 125 V DC for compatibility with industrial field devices. Furthermore, the module uses natural convection cooling without requiring external fans. Engineers can deploy this unit in temperature-controlled environments with confidence.

The internal design incorporates robust isolation between field circuits and the system bus. This isolation protects the controller from electrical noise and transient surges. Additionally, the Schneider ASB881508 features IP20 protection for safe installation in control cabinets. The NEMA 1 enclosure rating suits indoor applications where dust and light moisture are minimal.

Environmental Specifications

This I/O module operates reliably within ambient temperatures from 0 to 40 degrees Celsius. It withstands humidity levels up to 80 percent non-condensing for stable performance. Furthermore, the unit functions at altitudes up to 1000 meters above sea level without derating. Engineers can install this module in standard industrial environments with typical climate conditions.

The housing utilizes durable materials that resist vibration and maintain structural integrity. Its natural cooling design eliminates moving parts for increased reliability. Additionally, the Schneider ASB881508 requires minimal maintenance due to its solid-state construction.

System Integration and Application

The Schneider ASB881508 integrates seamlessly with Modicon 800 series controllers. This module mounts onto standard DIN rails or panel surfaces within control enclosures. Its eight-point configuration suits applications requiring moderate I/O density. Industries such as manufacturing, material handling, and facility management frequently deploy this I/O module for reliable DC control applications.
