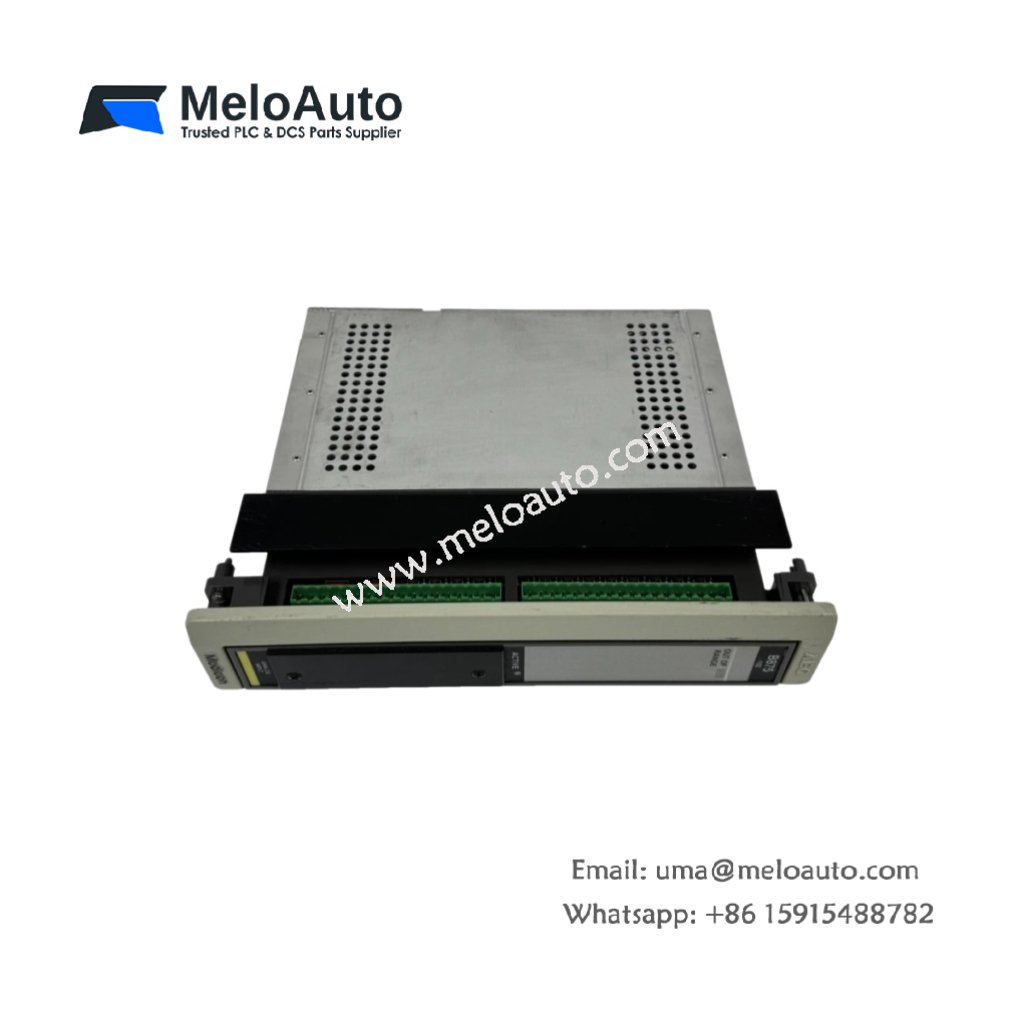

Schneider ASB875102 Analog Input Module – High-Speed, 8-Point, 800 Series

The Schneider ASB875102 is a high-performance analog input module designed for the 800 Series from Schneider Electric. Engineered for precision and speed, this module provides 8 analog input points, making it ideal for high-speed industrial applications that require accurate data acquisition.

Key Features and Specifications

• Model: Schneider ASB875102
• Product Type: Analog Input Module
• Product Line: 800 Series
• Part Number: ASB875102
• Weight: 1.15 lbs (0.52 kg)
• Input Points: 8 Analog Inputs
• Input Type: Differential/Single-Ended
• Input Voltage Range: 0–10V DC
• Resolution: 16 bits
• Sampling Rate: 2 ms per channel
• Power Supply: 24V DC
• Mounting Type: Rack Mountable
• Communication Protocols: Modbus RTU, Profibus DP
• Operating Temperature Range: -20°C to 60°C
• Storage Temperature Range: -40°C to 85°C
• IP Rating: IP20
• Response Time: 2 ms per channel
• System Compatibility: Compatible with Schneider Electric controllers
• Protection Rating: Overvoltage and Overcurrent protection

Product Overview

The Schneider ASB875102 module is designed for rapid and precise measurement of analog signals in industrial automation environments. This 800 Series analog input module supports 8 input channels, each capable of handling 0-10V DC signals with 16-bit resolution.

With a sampling rate of 2 ms per channel, this module ensures fast data acquisition, making it ideal for high-speed applications. The module’s 24V DC power supply and compatibility with Modbus RTU and Profibus DP communication protocols provide flexibility and ease of integration into a wide range of industrial systems.

Whether used in manufacturing processes, machine control, or other industrial applications, the Schneider ASB875102 guarantees efficient and reliable performance.

Applications

The Schneider ASB875102 module is perfect for applications that require fast, accurate analog data acquisition. It is commonly used in industries such as automated manufacturing, process control, and machine automation. With its ability to handle high-speed analog signals, this module is the ideal choice for real-time data monitoring and analysis.

Product Details

• Brand: Schneider Electric
• Model: ASB875102
• Category: Analog Input Module
• Series: 800 Series

Technical Specifications
