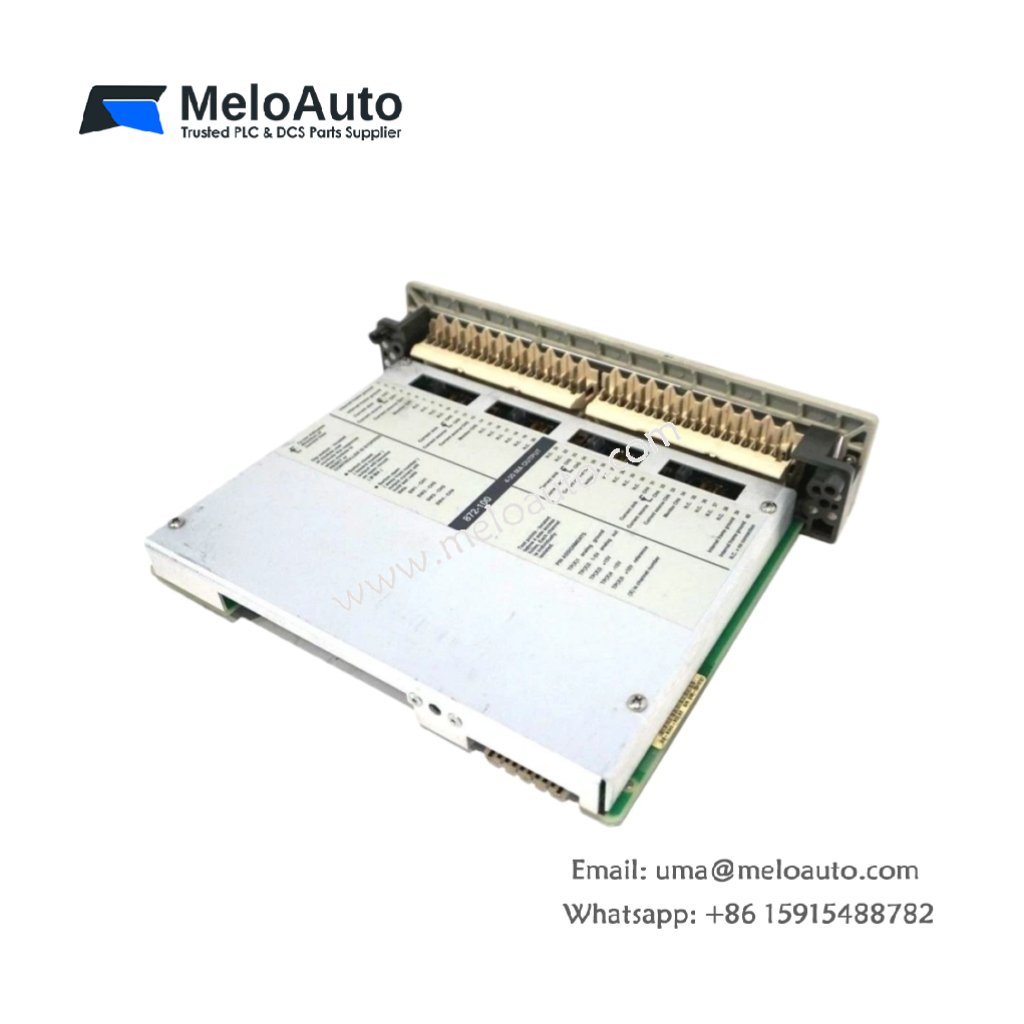

Schneider ASB872100 Analog Output Module

Overview

The Schneider ASB872100 is a reliable and high-performance Analog Output Module designed for precise signal transmission in industrial automation systems. This module is part of the 800 Series from Schneider Electric, offering exceptional performance in a compact design. The ASB872100 is optimized for controlling analog devices, ensuring stable output with high accuracy and fast response times.

Key Features

Analog Output Control: Provides reliable control of up to 16 analog outputs for various applications.
High Precision: Offers exceptional accuracy with an output range of 0 to 10 VDC.
Compact Design: The ASB872100 module features a space-saving, compact form, ideal for applications where space is a concern.
Fast Response Time: Achieves a rapid response time of just 5 ms for quick signal transmission.
Easy Integration: Seamlessly integrates into existing Schneider Electric automation systems, improving system efficiency.
Robust and Durable: Built with high-quality materials, ensuring long-term durability in demanding industrial environments.

Technical Specifications

Specification	Details
Manufacturer	Schneider Electric
Model	ASB872100
Product Type	Analog Output Module
Number of Channels	16
Output Range	0 to 10 VDC
Output Resolution	12-bit resolution
Response Time	5 ms
Power Supply	24 VDC
Power Consumption	65 mA
Mounting Type	DIN Rail Mount
Operating Temperature	0°C to 60°C
Operating Humidity	5% to 95% RH (non-condensing)
Environmental Protection	IP20
Dimensions	120 x 100 x 50 mm
Weight	0.5 kg

Applications

The Schneider ASB872100 Analog Output Module is ideal for various industrial applications, including:

Process Control Systems: Precisely control analog actuators, valves, and other devices.
Industrial Automation: Integrate with PLC systems to automate industrial processes effectively.
Test Equipment: Use as a part of test benches for testing analog devices.
Measurement Systems: Apply in systems requiring high-precision output for testing and calibration.
